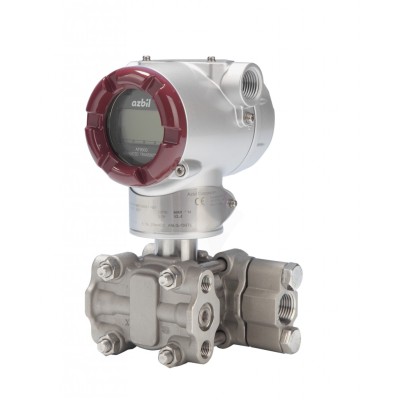

Unique characterization and composite semiconductor sensor provides high accuracy and stable operation for years to come. Wide rangeability means you can cover more of you applications with less inventory, saving you money. A diverse product offering, including measurement ranges, process connections and working pressure ratings are available to meet your requirments Fast Response time of under 100 msec makes suitable for pressure control in turbine applications User-customizable interface can measure and display in the units you decide are right for your application Bilingual communication capability (HART & DE Protocol) makes the choice for plants with a mixed DCS installed base.

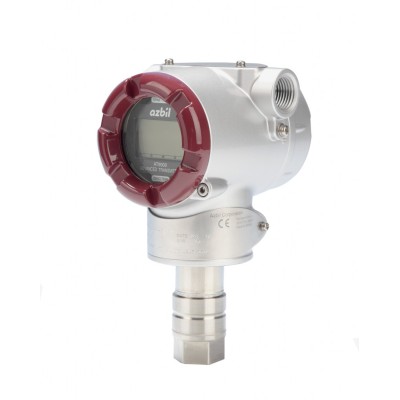

The Advanced Gauge Pressure Transmitter is a microprocessor based smart transmitter that features high performance and excellent stability. Capable of measuring gas, liquid, vapor, and liquid levels, it transmits 4 to 20 mA DC analog and and digital signals according to the measured pressure. It can also execute two-way communications between the communicator, thus facilitating self diagnosis, range setting , and automatic zero adjustment. The Advanced Transmitter Gauge Pressure Transmitters (GTX**G series) are used to measure the pressure of gases, liquids, and steam, as well as to measure tank pressure and fluid levels. They achieve high accuracy of ±0.04 % and long-term reliability (zero drift of only ±0.1 % over 10 years), greatly reducing calibration work after installation. With their very wide measurement range (GTX60G: 35 to 3500 kPa, a rangeability of 1:100), they help to cut costs by reducing the number of devices needed

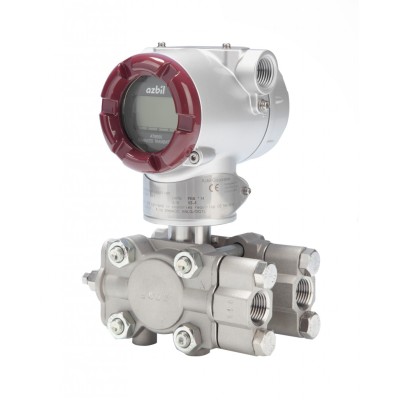

Unique characterization and composite semiconductor sensor provides high accuracy and stable operation for years to come. Wide rangeability means you can cover more of you applications with less inventory, saving you money. A diverse product offering, including measurement ranges, process connections, working pressure ratings and wetted parts materials are available to meet your requirments Fast Response time of under 100 msec makes the transmitter suitable for pressure control in turbine applications User-customizable interface can measure and display in the units you decide are right for your application Bilingual communication capability (HART & DE Protocol) makes the choice for plants with a mixed DCS installed base.

Unique Characterization and composite semiconductor sensor provides high accuracyand stable operation for years to come. Wide rangeability means you can cover more of your applications with less inventory, saving you money. A diverse product offering, including measurment ranges, process connections, working pressure ratings and wetted parts materials are available to meet your requirements Fast Response time of under 100 msec makes suitable for pressure control in turbine applications User-customizable interface can measure and display in the units you decide are right for your application Bilingual communications capability (HART & DE Protocol) makes the choice for plants with a mixed DCS installed base.

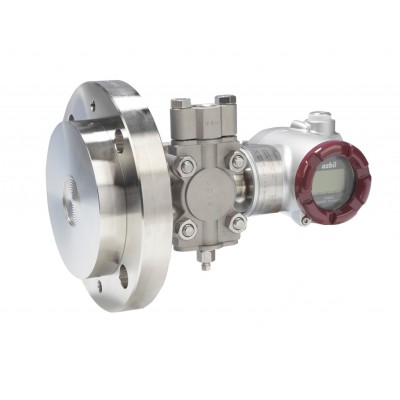

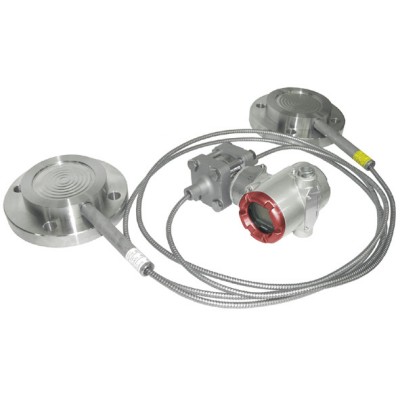

Paired with the Advanced Pressure Transmitter, Azbil North America is able to provide an extensive line of Remote Diaphragm Seals. From cryogenic to high-temperature applications, we can draw upon decades of experience designing and manufacturing remote diaphragm seals for process control to find a transmitter/remote seal system that fits your needs.

Unique characterization and composite semiconductor sensor provides high accuracy and stable operation for years to come. Wide rangeability means you can cover more of you applications with less inventory, saving you money. A diverse product offering, including measurement ranges, process connections, working pressure ratings and wetted parts materials are available to meet your requirments Fast Response time of under 100 msec makes the transmitter suitable for pressure control in turbine applications User-customizable interface can measure and display in the units you decide are right for your application Bilingual communication capability (HART & DE Protocol) makes the choice for plants with a mixed DCS installed base.

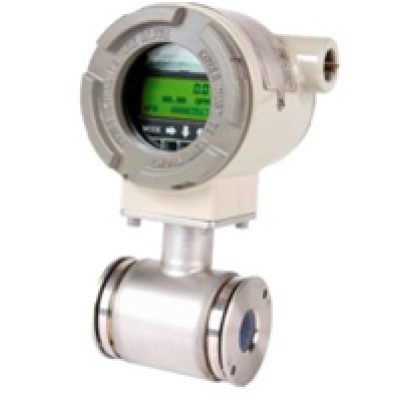

Enhanced signal conditioning circuitry provides excellent noise and spike immunity High stable and repeatable output with ±0.5% of rate accuracy Minimum process fluid conductivity requirement of 10μS/cm provides maximum applicability Electrode Status Diagnostic function diagnoses empty pipe condition or electrode scaling Available in wafer of flanged designs Both Integral and Remote configurations are available for maximum flexibility Detector sizes from 0.1″ to 8″ (2.5 to 200mm) are available

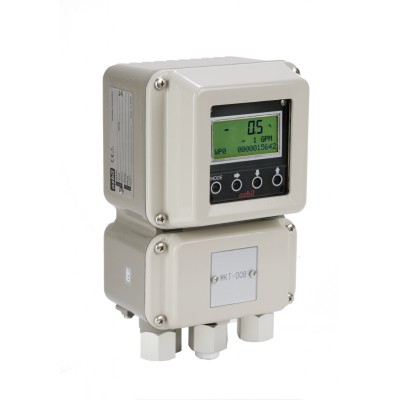

Flexible Digital Communications with HART, DE and Foundation Fieldbus Protocols Intuitive, versatile operator interface with large characters and back-lit LCD dispaly Optional I/O capability for dual range selection input, counter status output and many more! Excelent noise immunity for reliable process control Optional “Fast Response” model for short-run batch applications Averaging function for pulsating flow applications. MagneW™ is a trademark of Azbil Corporation

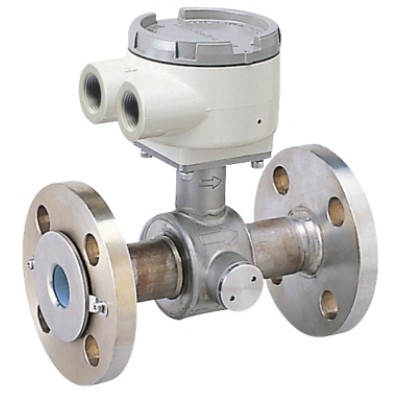

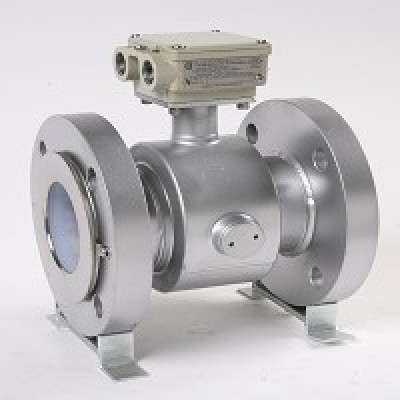

Exclusive high quality lining technology and a special “mirror’fiish” PFA lining offers higher anti-adhession properties than competitive models Lining uses only pure white PFA with no additives Lining is reinforced with stainless mesh and divetailed to flow body providing durablity and long service life in the most difficult applications Flanged detectors available in line sizes from 0.1 inch to 44 inch (2.5 to 1100mm) Wafer style detectors available in line sizes from 0.1 inch to 8 inch (2.5 to 200mm) Field-replaceable electrodes are avialable as standard feature on most models 0.1 in through 8 inch detectors feature all-welded stainless steel construction MagneW™ is a trademark of Azbil Corporation

Exclusive high quality lining technology and a special “mirror’fiish” PFA lining offers higher anti-adhession properties than competitive models Lining uses only pure white PFA with no additives Lining is reinforced with stainless mesh and divetailed to flow body providing durablity and long service life in the most difficult applications Flanged detectors available in line sizes from 0.1 inch to 16 inch (2.5 to 400mm) Wafer style detectors available in line sizes from 0.1 inch to 8 inch (2.5 to 200mm) Field-replaceable electrodes are avialable as standard feature on most models 0.1 in through 8 inch detectors feature all-welded stainless steel construction MagneW™ is a trademark of Azbil Corporation

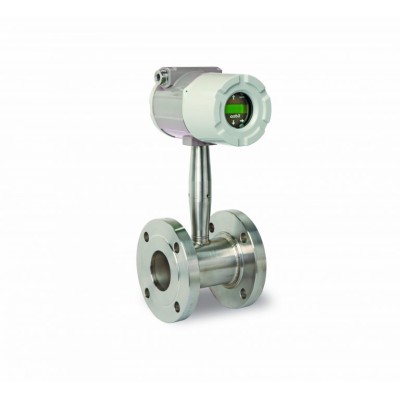

Azbil multivariable flowmeters utilize three primary sensing elements –a vortex shedding velocity sensor, an RTD temperature sensor, and a solid-state pressure transducer–to measure the mass flow rate of gases, liquids and steam. Systems that use external process measurements to calculate mass flow may not provide adequate compensation for the fact that process conditions can change radically between the point of velocity measurement and the point where upstream or downstream pressure and temperature measurements are being made. Because the model AX22 multivariable flowmeter measures all of these parameters in a single location, it delivers a more accurate process measurement. Integrating multivariable output capability with a single line penetration also simplifies system complexity and helps reduce initial equipment cost, installation cost and maintenance costs. The product line is available with a wide range of options and meter configurations to meet your specific application requirements.

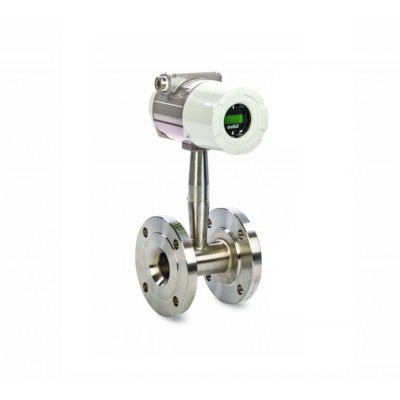

Azbil’s Model AX24 Multivariable Vortex Flowmeter offers accurate and reliable flow metering in a multivariable design. The multivariable design incorporates a high-accuracy velocity sensor, a precision platinum RTD temperature sensor, and a solid-state pressure transducer. The AX24 can deliver volumetric flow, mass flow, temperature, pressure, density, and energy (BTU) measurements from a single installed device. This drastically reduces complexity, equipment costs, and installation costs in comparison to installing multiple stand-alone instruments to arrive at the same process measurements.

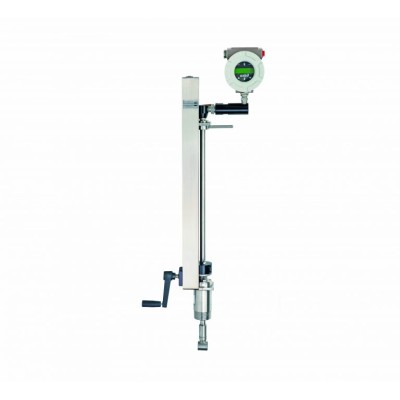

Azbil multivariable flowmeters utilize three primary sensing elements – a vortex shedding velocity sensor, an RTD temperature sensor, and a solid-state pressure transducer – to measure the mass flow rate of gases, liquids and steam. Because the model AX23 is able to measure all process variables within a single device it provides exceptional accuracy, simplifies system design and reduces installation costs.
