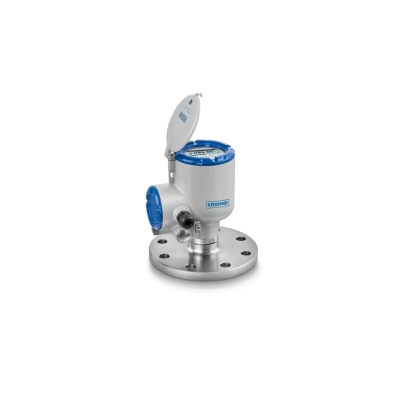

Radar level transmitter for advanced applications with liquids in narrow tanks with internal obstructions

• Continuous, non-contact level measurement in small and narrow tanks with agitators as well as long nozzles
• 80 GHz radar, flush-mounted Lens antenna
• Measuring range: 0…100 m / 328 ft
• -50…+200°C / -58…+392°F; -1…40 barg / -14.5…580 psig

Radar level transmitter for advanced applications with agitated and corrosive liquids

• Continuous, non-contact level measurement in harsh environments
• 24 GHz radar, Horn or Drop antennas
• Measuring range: 0…100 m / 328 ft
• -50…+200°C / -58…+392°F, up to +700°C / +1292°F in non-ex applications; -1…100 barg / -14.5…1450 psig (higher on request)

Radar level transmitter for liquids and solids in the marine industry

• Continuous, non-contact cargo level measurement
• 80 GHz radar, Lens antenna (flush-mounted)
• Very small beam angle for narrow tanks of various heights and shapes
• Redundant ullage indication with local display on deck

Radar level transmitter for liquids and solids in the marine industry

• Continuous, non-contact cargo level measurement
• 24 GHz radar, Horn or Drop antenna
• Redundant ullage indication with local display on deck
• Closed tank cleaning and service of all components

Radar level transmitter for advanced applications with powders

Radar level transmitter for advanced applications with solids from granulates to rocks

• Continuous, non-contact level measurement in/on silos, stockpiles, conveyor belts etc.
• 24 GHz radar, Horn or Drop antennas
• Measuring range: 0…100 m / 328 ft
• -50…+130°C / +266°F; -1…16 barg / -14.5…232 psig

Radar level transmitter for liquids in standard process applications

• Continuous, non-contact level measurement in closed tanks or in the open air
• 24 GHz radar, Horn or Drop antennas
• Measuring range: 0…100 m / 328 ft
• -50…+130°C / -58…+266°F; -1…16 barg / -14.5…232 psig

Radar level transmitter for basic applications with liquids in narrow tanks with internal obstructions

• Cost-effective non-contact level measurement with longer range and high accuracy
• Compact and robust 80 GHz radar with flush-mounted concave PVDF Lens antenna, not affected by condensation
• Measuring range: 0…30 m / 98.4 ft
• 2-wire 4…20 mA HART^®7; user-friendly commissioning via Bluetooth^® using the OPTICHECK Level Mobile app

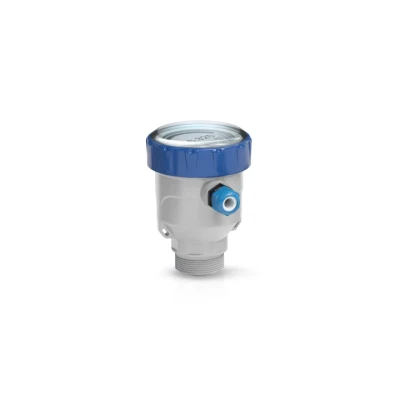

Radar level transmitter for basic applications with liquid chemicals and open-channel flow

• Cost-effective non-contact level measurement in IBCs, chemical tanks (up to 5 bar / 72.5 psi), (waste)water applications with high accuracy requirements
• Compact and robust 80 GHz radar with flush-mounted PVDF Lens antenna; display or waterproof (IP68) version also available; for use as level and flow transmitter
• Measuring range: 0…15 m / 49.2 ft
• 2-wire 4…20 mA HART^®7; user-friendly commissioning via Bluetooth^® using the OPTICHECK Level Mobile app

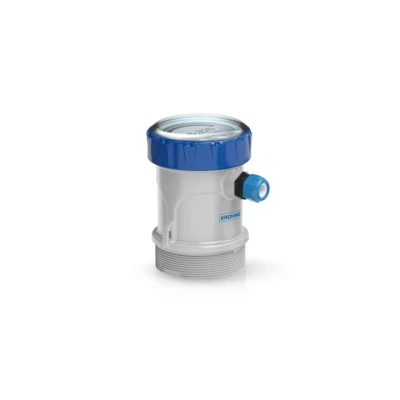

Radar level transmitter for basic applications with minerals and other solids

• Cost-effective non-contact level measurement of storage silos, stockpiles, crushers, conveyor belts, narrow tanks, poorly reflecting or agitated liquids
• Compact and robust 80 GHz radar with flush-mounted concave PVDF Lens antenna and fully potted electronics for use in dusty and vibrating environments
• Measuring range: 0…15 m / 49.2 ft
• 2-wire 4…20 mA HART^®7; user-friendly commissioning via Bluetooth^® using the OPTICHECK Level Mobile app

Radar level transmitter for basic applications with liquids and granulates

• Cost-effective non-contact level measurement in tanks (up to 5 bar / 72.5 psi), (waste)water basins, pumping stations, etc.
• Compact and robust 80 GHz radar with flush-mounted PVDF Lens antenna; waterproof (IP68) version also available
• Measuring range: 0…10 m / 32.8 ft
• 2-wire 4…20 mA HART^®7; user-friendly commissioning via Bluetooth^® using the OPTICHECK Level Mobile app

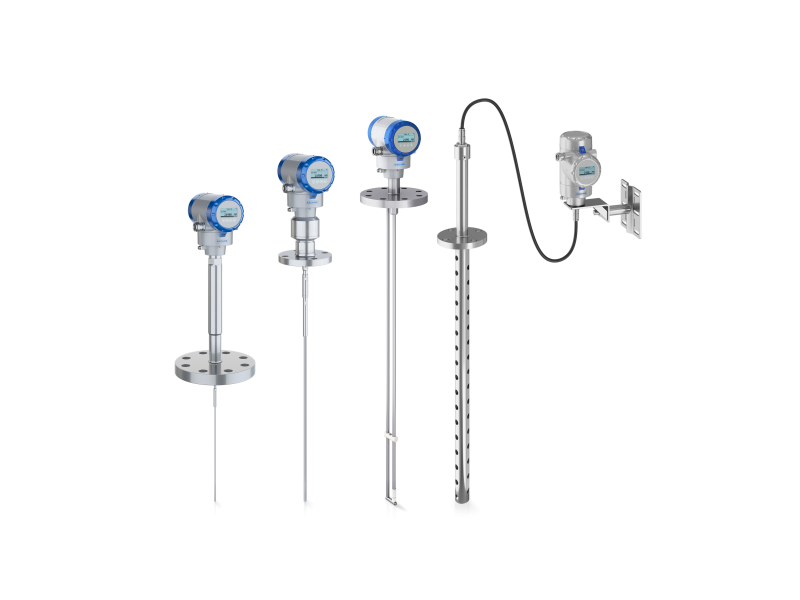

Guided radar (TDR) level transmitter for advanced liquid applications

• Continuous level and interface measurement in process or storage tanks, reactors and pressure vessels
• Extensive choice of probes for harsh process conditions
• Measuring range: 0.3…60 m / 1…197 ft
• -50…+250°C / -58…+482°F; -1…100 barg / -14.5…1450 psig

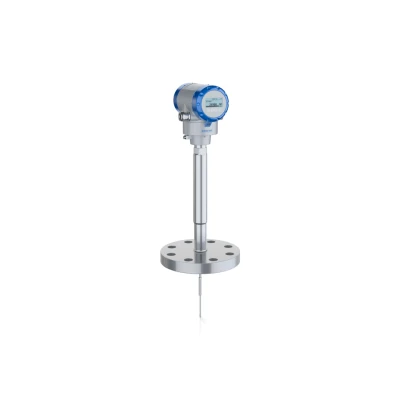

Guided radar (TDR) level transmitter for liquids at high temperature and pressure

• Continuous level and interface measurement in reactors and separators
• Single or double ceramic process seal system for demanding process conditions
• Measuring range: 0.6…60 m / 2…197 ft
• -50…+315°C; -58…+599°F; -1…320 barg; -14.5…4641 psig

Guided radar (TDR) level transmitter for solids from granulates to powders

• Continuous level measurement in buffer silos, bulk storage containers or hoppers
• Insensitive to dusty atmosphere and deposit on the probe
• Measuring range: 0.6…40 m / 2…131 ft
• -50…+200°C / -58…+392°F; -1…40 barg / -14.5…580 psig

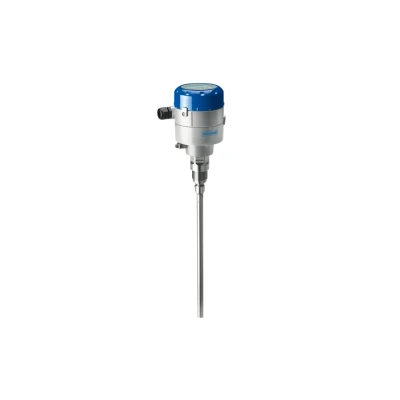

Guided radar (TDR) level transmitter for basic liquid applications

• Continuous level measurement in buffer, storage, collecting or recycling tanks
• Intuitive quick setup procedure
• Measuring range: 0.7…20 m / 2.3...65.5 ft
• -50…+100°C / -58…+212°F; -1…16 barg / -14.5…232 psig
