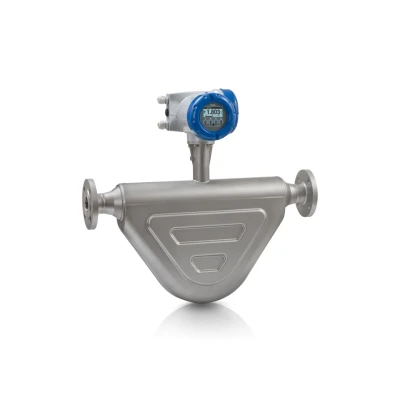

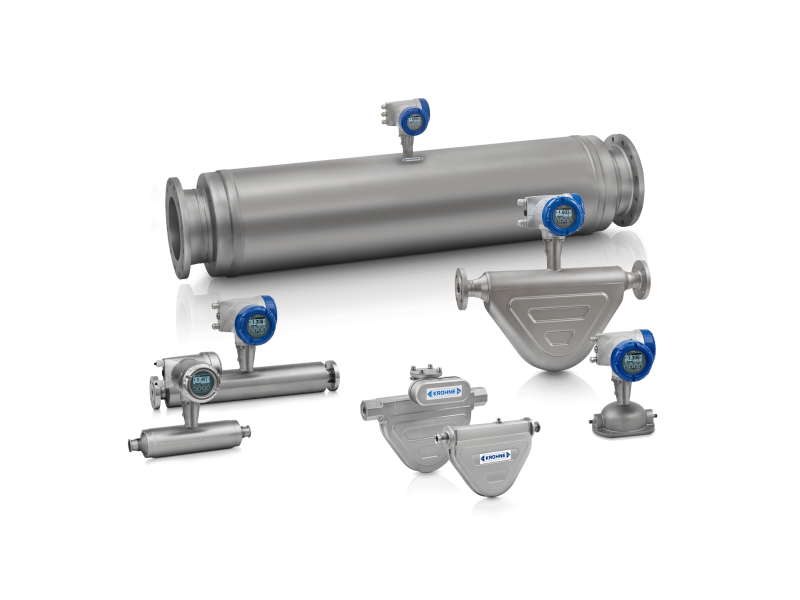

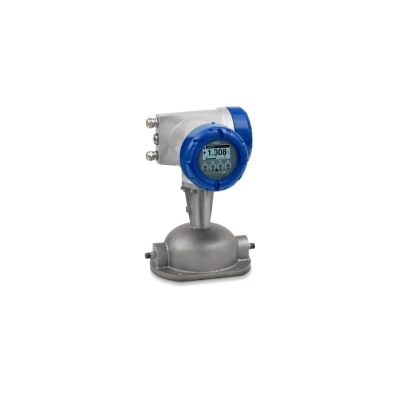

Coriolis mass flowmeter for advanced process applications High accuracy (±0.05% flat), for cryogenic to high temperature media (-200…+400°C / -328…+752°F); maintains operation over a wide range of gas fractions and complex flow conditions (EGMTM) SIL 2/3; CT: OIML R117, R137, MI-005, MI-002; API, AGA; hygienic certifications Flange: DN10…300 / ½…12", max. PN 160 / ASME Cl 1500 3 x 4…20 mA, HART®7, Modbus, FF, Profibus-PA/DP, PROFINET, EtherNet/IP™, Bluetooth®

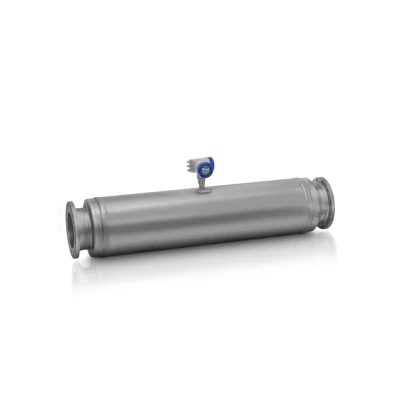

Coriolis mass flowmeter for the highest capacity bulk measurement For gases and liquids up to 4,600 t/h; maintains operation over a wide range of gas fractions and complex flow conditions (EGMTM) CT: OIML R117, MI-005, MI-002; API and AGA compliant Flange: DN100…400 / 4…16", max. PN160 / ASME Cl 1500 3 x 4…20 mA, HART®7, Modbus, FF, Profibus-PA/DP, PROFINET, EtherNet/IP™, Bluetooth®

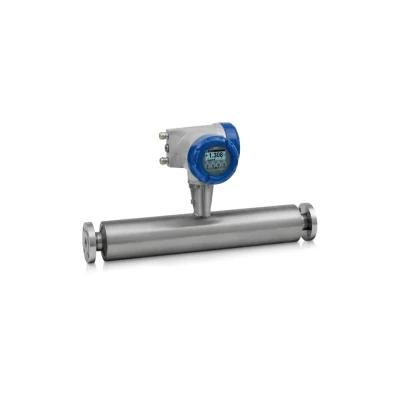

Coriolis mass flowmeter for advanced process applications High accuracy (±0.1%), for viscous, aggressive or shear-sensitive media; maintains operation over a wide range of gas fractions and complex flow conditions (EGMTM) CT: OIML R117, MI-005; API; hygienic certifications Flange: DN10…100 / ½…4", max. PN100 / ASME Cl 600; others 3 x 4…20 mA, HART®7, Modbus, FF, Profibus-PA/DP, PROFINET, EtherNet/IP™, Bluetooth®

Coriolis mass flowmeter for universal applications and process control Mass, density and volume flow of gases and liquids; maintains operation over a wide range of gas fractions and complex flow conditions (EGMTM) Also certified for hygienic use Flange: DN15…100 / ½…4", max. PN100 / ASME Cl 600; many hygienic fittings 3 x 4…20 mA, HART®7, FF, Profibus-PA/DP, Modbus, PROFINET, EtherNet/IP™, Bluetooth®

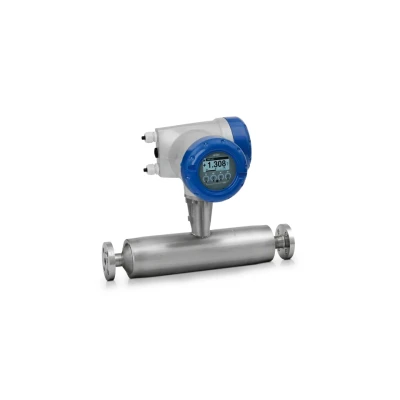

Coriolis mass flowmeter for low flow and dosing applications Coriolis mass flowmeter for low flow and dosing applications High accuracy (±0.1%) for gases and liquids >0.3 kg/h / 0.01 lb/min; maintains operation over a wide range of gas fractions and complex flow conditions (EGMTM) Standard pressure rating up to 300 bar / 4351 psi Flange: DN15 / ½"; also thread and clamp connections 3 x 4…20 mA, HART®7, Modbus, FF, Profibus-PA/DP, PROFINET, EtherNet/IP™, Bluetooth®

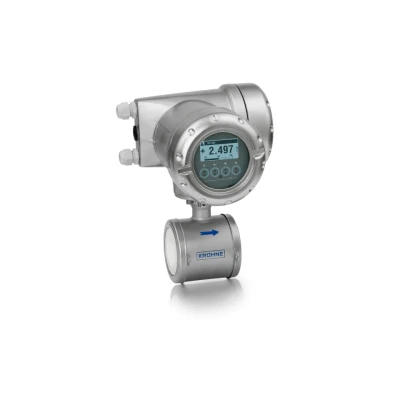

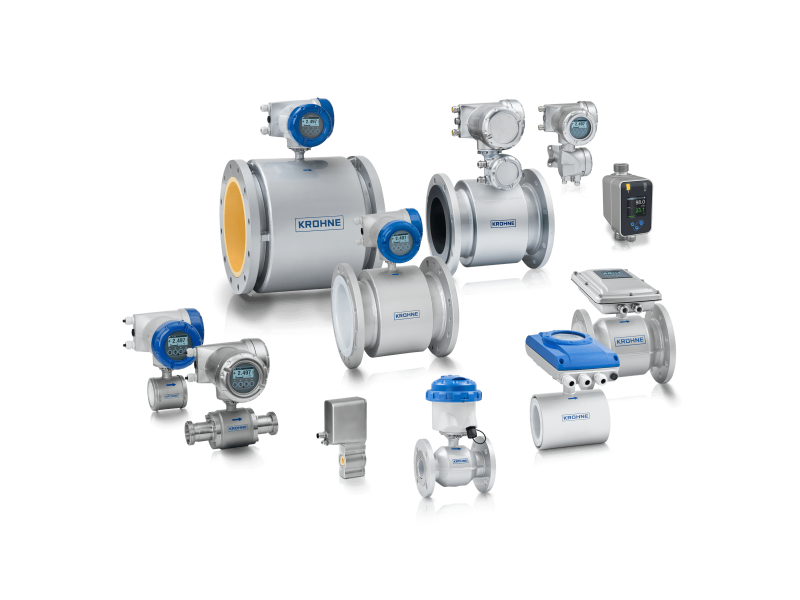

Electromagnetic flowmeter for safety instrumented systems (SIS) and high-accuracy requirements Certified for safety applications up to SIL 2/3, with automated partial proof test capability for extended proof test intervals Best-in-class diagnostic test interval incl. fault response time of only 2 minutes SIL 2/3 up to DN600 / 24"; non-SIL up to DN2000 / 80" (larger on request) Pulse, frequency, status, 4…20 mA, HART®7

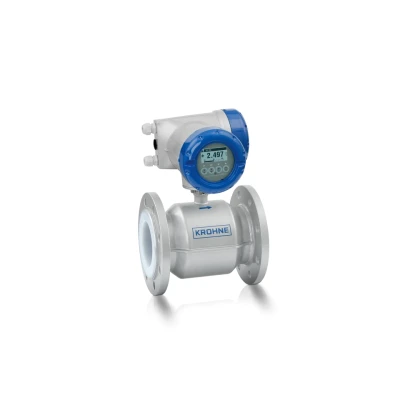

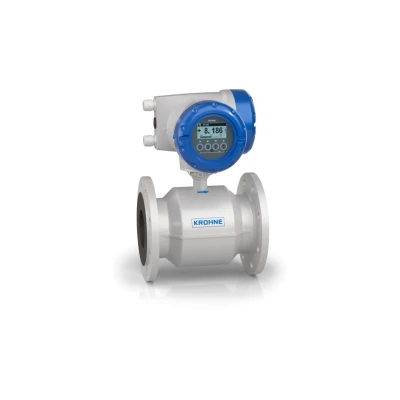

Electromagnetic flowmeter for advanced process and custody transfer (CT) applications High accuracy (±0.2%), certified for custody transfer For low conductivity media (>1 μS/cm) and high solid contents (≤70%) Flange: DN2.5…3000 / ⅒…120", max. PN40 / ASME Cl 600 (higher on request) 3 x 4…20 mA, HART®,Modbus, FF, Profibus-PA/DP, PROFINET

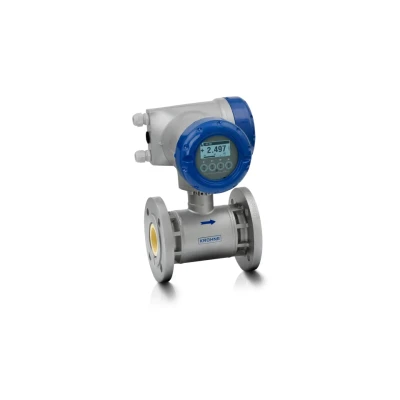

Electromagnetic flowmeter for advanced process and master meter applications Highest accuracy (±0.15%), with ceramic tube for aggressive and abrasive liquids (≤70% solid content) up to +180°C / +356°F CT: OIML R117, MI-005 etc. Flange: DN15…300 / ½…12", max. PN40 / ASME Cl 300; Sandwich: DN2.5...100 / ⅒...4" 3 x 4…20 mA, HART®, Modbus, FF, Profibus-PA/DP, PROFINET

Electromagnetic flowmeter for low conductivity liquids (≥0.05 μS/cm) Ceramic tube with non-wetted electrodes for extremely adhesive and abrasive media Hygienic and vacuum resistant Flange or wafer/sandwich version: DN25…100 / 1…4", max. PN40 / ASME Cl 300 3 x 4…20 mA, HART®, Modbus, FF, Profibus-PA/DP, PROFINET

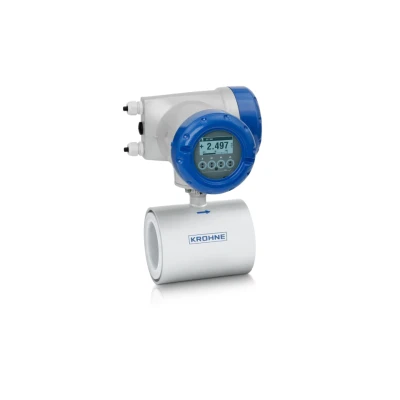

Electromagnetic flowmeter for OEM applications, dosing systems and compact skids Economical flow measurement of liquids (≥5 μS/cm) with solid content (≤70%) -25…+120°C / -13…+248°F Wafer-style design: DN10…150 / ⅜…6", max. PN40 / ASME Cl 300 3 x 4…20 mA, HART®, Modbus, FF, Profibus-PA/DP, PROFINET

Electromagnetic flowmeter for advanced water and wastewater applications High accuracy (±0.2%), with CT approvals (OIML R49, MI-001) 0D/0D installation acc. to MID MI-001 and OIML R49 accuracy class 1 Flange: DN25…3000 / 1…120", max. PN40 / ASME Cl 300 3 x 4…20 mA, HART®, Modbus, FF, Profibus-PA/DP, PROFINET

Electromagnetic flowmeter for nuclear applications Designed and tested for industrial nuclear environments With resistant ETFE or PFA liner materials Flange: DN25…1000 / 1…40" 3 x 4…20 mA, HART®, Modbus, FF, Profibus-PA/DP, PROFINET

Electromagnetic flowmeter for nuclear applications Designed and tested for industrial nuclear environments With high-tech ceramic tube for very aggressive and abrasive fluids Space-saving wafer design: DN2.5…100 / 1⁄10…4" 3 x 4…20 mA, HART®, Modbus, FF, Profibus-PA/DP, PROFINET

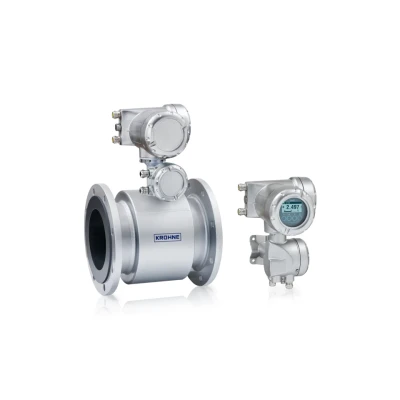

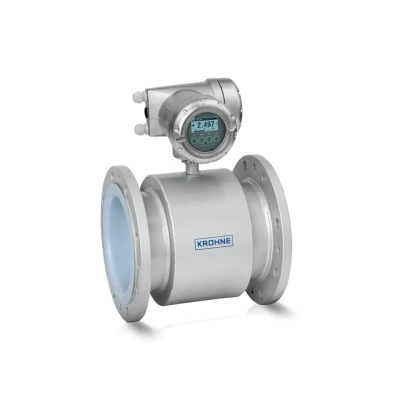

Electromagnetic flowmeter for applications with partially filled pipes With integrated capacitive level measurement for flow measurement of water and wastewater (≥10% pipe fill level) Accurate (±1%) and cost-saving alternative to open channel systems Flange: DN200…1600 / 8…64" 3 x 4…20 mA, pulse, HART®, Modbus, PROFINET

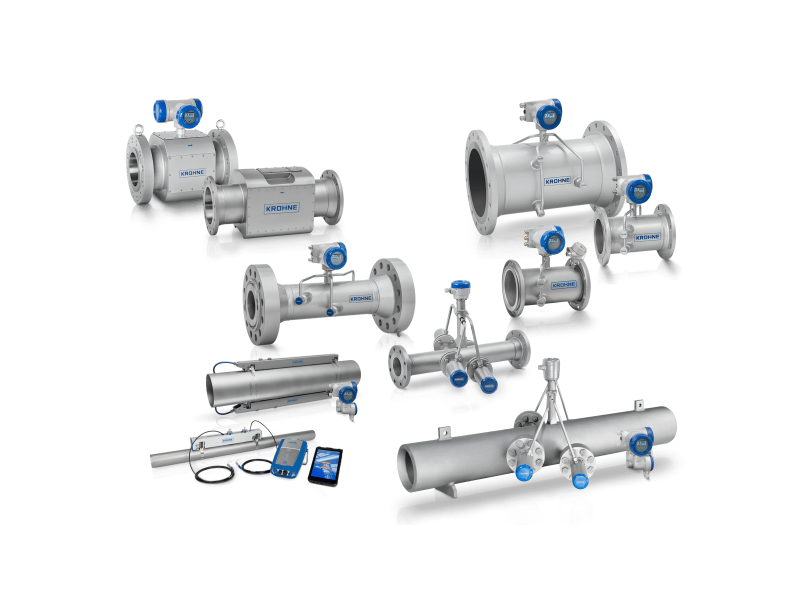

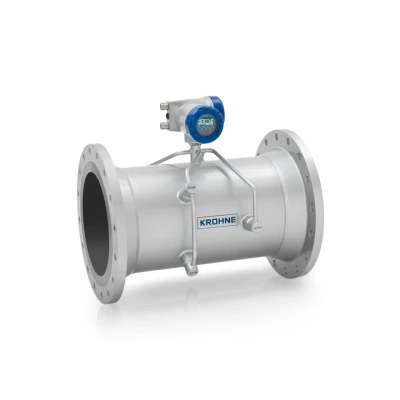

Ultrasonic flowmeter for liquid process applications Accurate 3-path meter: large dynamic range, maintenance-free, no pressure loss Cryogenic (-200°C/-328°F) and extended temperature (+250°C/+482°F) versions; viscosities up to over 1000 cSt Flange: DN25…3000 / 1…120", max. PN200 / ASME Cl 1500; also weld-ends 3 x 4…20 mA, HART®, Modbus, FF, Profibus-PA/DP
