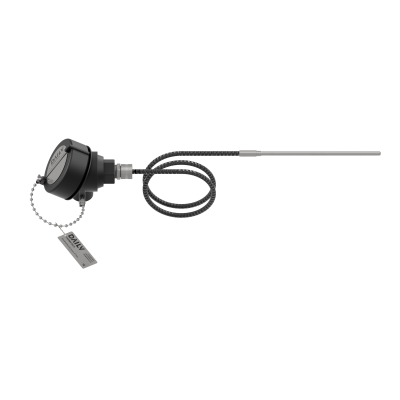

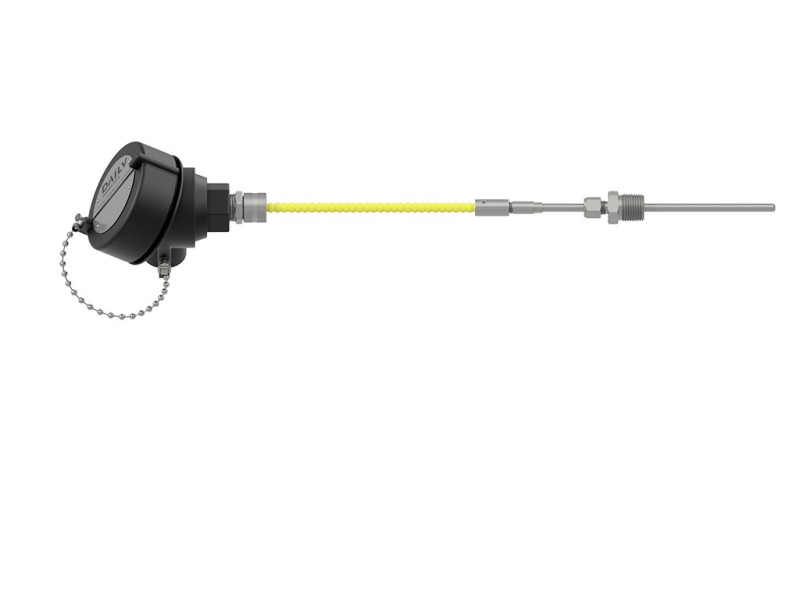

Daily Thermetrics’ 360 Series Remote Industrial Sensor Assembly is a sensor probe with conductor wires that transition into lead wire in flexible conduit for remote termination into a head. This sensor is suited for use either in thermowells or directly in a process. All aspects of this sensor assembly are customizable, including element type, sheath metallurgy, length, connection type, and head.

Daily Thermetrics’ 310 Series Industrial Sensor Assembly is designed for direct termination into a head via a nipple and union combination. This style can be spring-loaded. This sensor is best suited for use with a thermowell. All aspects of this sensor assembly are customizable, including element type, sheath metallurgy, length, connection type, and head.

Daily Thermetrics’ 210 Series Industrial Sensor is a basic mineral-insulated thermocouple / RTD probe with either bare leads or a connection plug for termination. This sensor is suited for use either in thermowells or directly in a process. All aspects of this sensor are customizable, including element type, sheath metallurgy, length, connection type, and termination style.

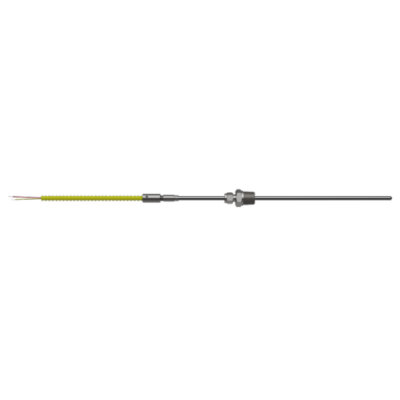

Daily Thermetrics’ 220 Series Industrial Sensor with Flexible Leads is a sensor probe with conductor wires that transition into lead wire in flexible conduit for remote termination. This sensor is suited for use either in thermowells or directly in a process. All aspects of this sensor are customizable, including element type, sheath metallurgy, length, connection type, and termination style.

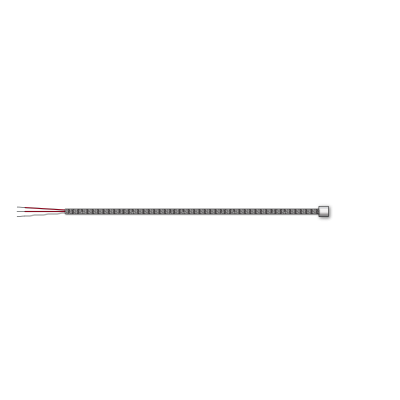

Daily Thermetrics’ Bearing Sensors are thermocouple / RTD tips with either bare leads or a connection plug for termination.

Daily Thermetrics’ Model 110 Threaded Thermowells are manufactured from a single piece of solid bar stock and can be utilized with thermocouples, RTDs, bimetallic thermometers, and other instrumentation devices. All aspects of the thermowell are customizable.

Daily Thermetrics’ Model 130 Flanged Thermowells consist of a thermowell shank made from a single piece of solid bar stock welded to a flange. Raised face and ring type joint flange connections are available, and gaskets must be used during installation. Designed for use with thermocouples, RTDs, bimetallic thermometers, and other instrumentation devices. All aspects of the thermowell are customizable.

Daily Thermetrics’ Model 140 Van Stone Thermowells are constructed from a single piece of solid bar stock and are designed to be in direct contact with the process. Raised face and ring type joint flange connections are available and gaskets must be used during installation. Designed for use with thermocouples, RTDs, bimetallic thermometers, and other instrumentation devices. All aspects of the thermowell are customizable.

Daily Thermetrics’ Model 150 Socket Weld and Weld-In Thermowells are constructed from a single piece of solid bar stock and are designed to be in direct contact with the process. They require field welding and are best suited for permanent installations. The thermowell diameter is designed to fit standard socket weld connections. Designed for use with thermocouples, RTDs, bimetallic thermometers, and other instrumentation devices. All aspects of the thermowell are customizable.

Daily Thermetrics’ Model 190 Protection Tubes are constructed from ceramic or metal/ceramic composites and offer much higher temperature limits and better chemical resistance than metal alternatives. They are designed to be in direct contact with process and can be built with either threaded or flanged connection types. Designed for use with thermocouples, RTDs, and other instrumentation devices.

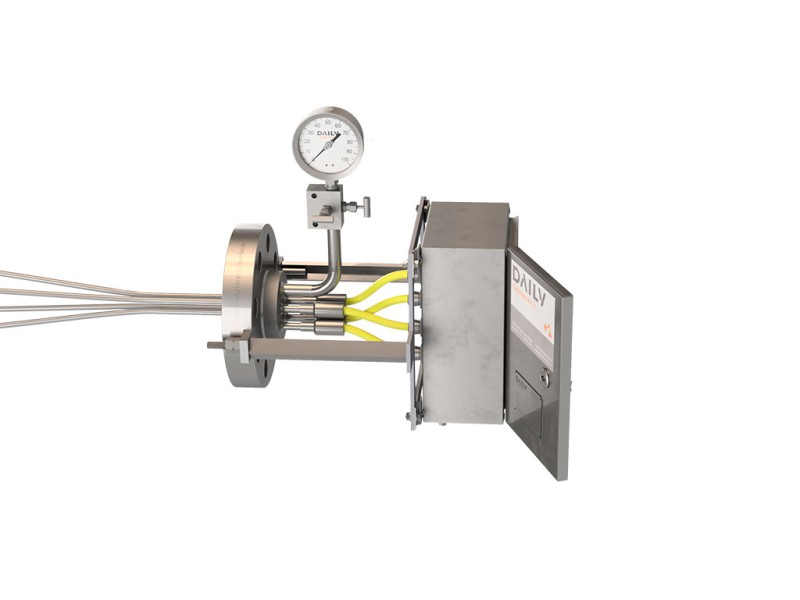

Daily Thermetrics' Model 800 Pipewells are built from industrial grade pipe (as opposed to bar stock) to accommodate longer lengths which might not be practical for traditional thermowells. Additionally, Pipewell assemblies can accommodate multiple sensing probes to provide a more thorough temperature profile along the length of the pipe. These multipoint systems can be paired with secondary containment chambers and localized junction boxes for vessel profiling. Connection types can be threaded (NPT), flanged, or other.

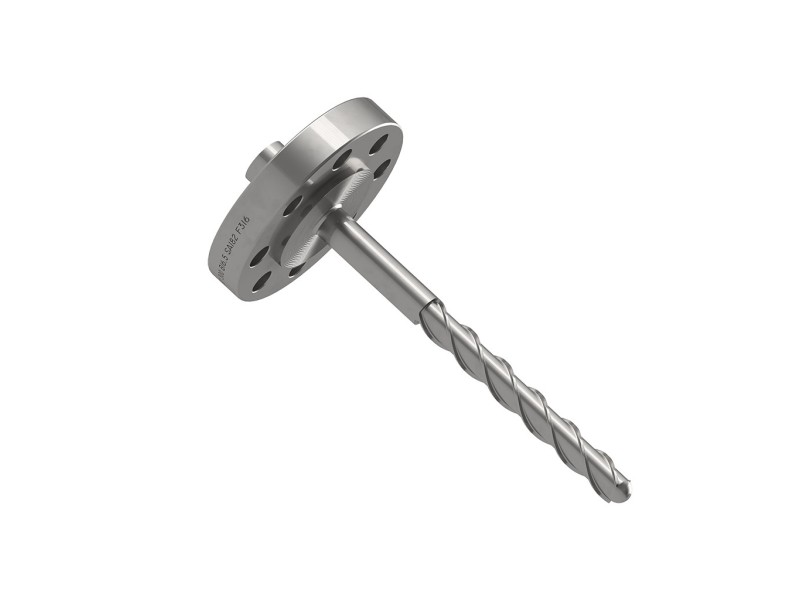

Daily Thermetrics is the exclusive supplier of the Daily Helix Thermowell (DHTW™) utilizing the patented VE Technology®. VE technology® combines helical strakes with a hemispherical tip which results in a special geometry that change the characteristics of the vortices created and prevents vibration induced failures. Multiple industries utilize the helical strake design and have proven its effectiveness in preventing vibrational failure through thousands of hours of service life.

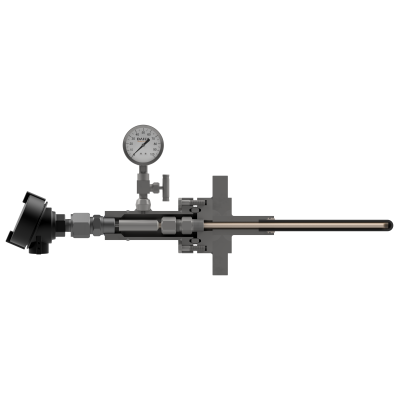

No Purging Required Sapphire tube prevents gas migration and thermocouple poisoning, eliminating the need for inert gas purge while improving accuracy.Simple Installation Installation is similar to a normal thermowell. No special tooling or installation equipment is required.Refurbishable Most components are replaceable and can be refurbished at a fraction of the intial cost. Keep a rotating stock to minimize downtime.

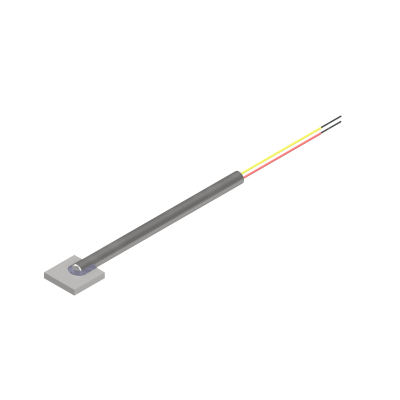

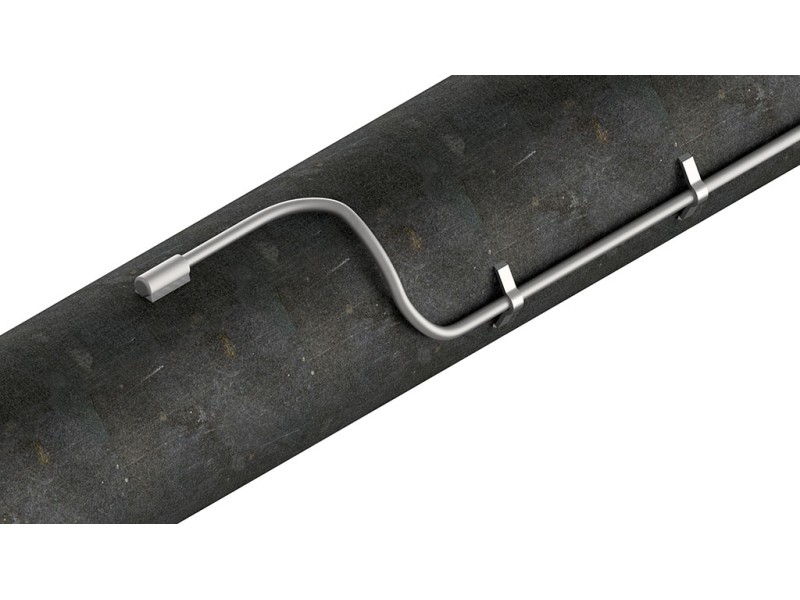

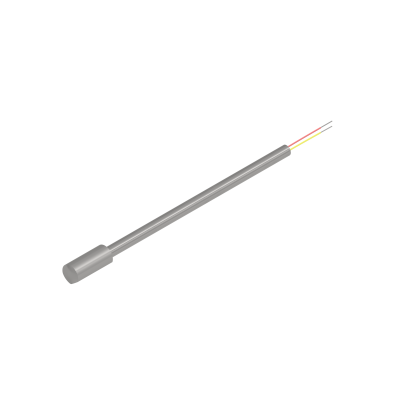

FIRE BOX DIAGNOSTICS combined with TUBE SKIN THERMOCOUPLE (TSTC) DESIGN AND PROFESSIONAL INSTALLATION plays a critical role in promoting accurate, consistent temperature measurement and overall reliability. Daily Thermetrics’ TUBE SKIN ENGINEERING division offers refiners proven solutions to common and challenging issues related to tube skin temperature measurement.

FIRE BOX DIAGNOSTICS combined with TUBE SKIN THERMOCOUPLE (TSTC) DESIGN AND PROFESSIONAL INSTALLATION plays a critical role in promoting accurate, consistent temperature measurement and overall reliability. Daily Thermetrics’ TUBE SKIN ENGINEERING division offers refiners proven solutions to common and challenging issues related to tube skin temperature measurement.
