The E5600, E6600, and E7600 are high performance knife gate valves specifically designed for severe service type applications in the pulp & paper, mining, oil & gas, and power generation industries. Bidirectional, perimeter seat, transverse seal design WCB, stainless steel or high alloy body ASME Class 150 / 300 / 600 MSS SP-135 2” to 48” (larger on request)

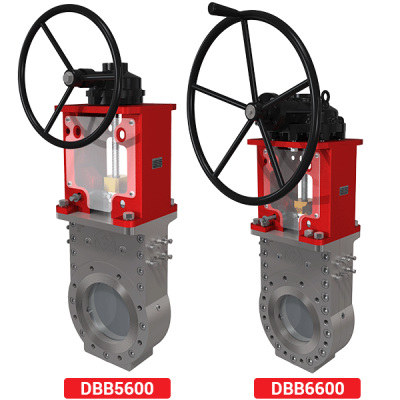

The DBB5600, and DBB6600, are high performance, double block and bleed knife gate valves specifically designed for critical shut-off applications in the pulp & paper, mining, oil & gas, and power generation industries. Bidirectional, perimeter seat, transverse seal design Dual gate shut-off with a single actuator WCB, SS or high alloy body Class 150/300 MSS SP-152 2” to 24” (larger on request)

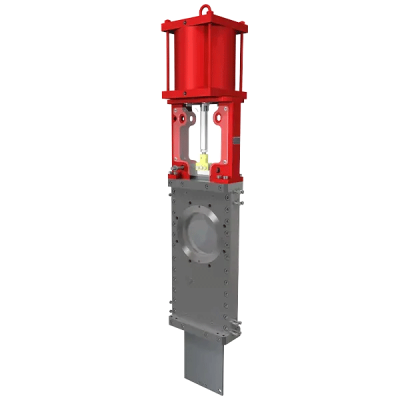

The OP5600 is a high performance, O-Port style knife gate valve specifically designed for use in severe service applications in the pulp & paper, chemical, mineral processing, and power generation industries. Through conduit, transverse seal design Stainless steel or high alloy body ASME Class 150 MSS SP-135 2” to 24” (larger on request)

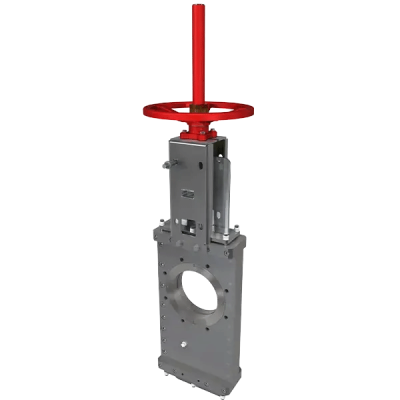

The OP5700 is an O-Port style knife gate valve designed specifically for use in aggressive processes and high wear applications in the pulp & paper, and chemical industries. Through conduit design Hardened seat ring and gate ASME Class 150 MSS SP-135 2” to 24” (larger on request)

The E5500 knife gate valve is designed and configured specifically for use in industrial applications with high process temperatures. Up to 1200°F (650°C) max temperature Unidirectional resilient or metal seat Stainless steel or high alloy body ASME Class 150 MSS SP-135 2” to 12” (larger on request)

The E6300 knife gate valve is specifically designed for high pressures and heavy slurry use in the mining and mineral processing industries. Bidirectional, reinforced seat rings, push-through design WCB body Up to 750psi 3” to 24” (larger on request)

The E5300 knife gate valve is specifically designed for heavy slurry use in the mining and mineral processing industries. Bidirectional, reinforced seat rings, push-through design Ductile iron body Up to 150psi 2” to 24” (larger on request)

The E5800 knife gate valve is specifically designed for heavy slurry use in the mining and mineral processing industries. Wide body, flanged process connection Bidirectional, reinforced seat rings, push-through design Ductile iron body Up to 150psi 2” to 24” (larger on request)

The E5900 knife gate valve features a molded, high-quality urethane liner for use on erosive fine particle applications in mineral processing and other industries. Replaceable urethane seat cartridge Ductile iron body Up to 150psi MSS SP-81 2” to 24” (larger on request)

The E5100 knife gate valve is designed for light process industrial use as well as the municipal water & wastewater industry. Bidirectional, perimeter seat design Stainless steel body 150psi max pressure 2” to 24” (larger on request)

The E5200 knife gate valve is designed primarily for light slurry use in the mining, cement, and power industries. Bidirectional, perimeter seat design Ductile iron body Up to 250psi 2” to 24” (larger on request)

The Z6600 knife gate valve features a zero taper, zero pocket design with a perimeter seat and bore matching, specifically to handle demanding applications in the oil sands industry. Zero taper, zero pocket bore matching for improved reliability Bidirectional, perimeter seat, transverse seal design Low-temp carbon steel body ASME Class 300 3” to 36” (larger on request)

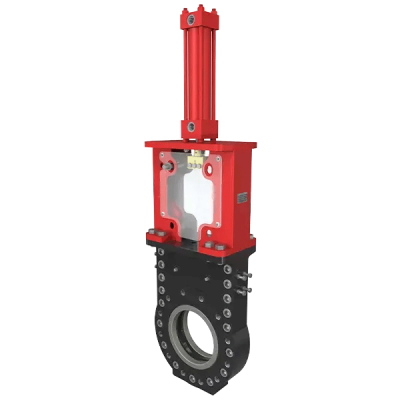

The E5600-OSV is a high performance knife gate valve configured specifically for demanding processes in the oil sands industry. Transverse seal design with rotatable wear rings 17-4PH H900 gate with chrome carbide tip Heavy-duty, low-carbon steel body with low-friction coating ASME Class 150 MSS SP-135 2” to 48” (larger on request)

The E5400 is a general purpose knife gate valve designed for use in a wide variety of industrial and municipal applications. Unidirectional, resilient, or metal seat Stainless steel or high alloy body 150psi max pressure MSS SP-81 2” to 60” (larger on request)

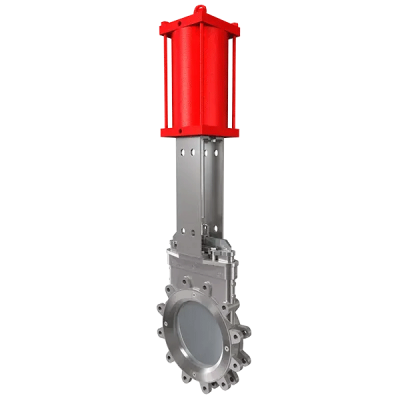

The E5700 knife gate valve is designed and configured specifically for use in aggressive processes and high wear pulp & paper applications. Unidirectional, hardened seat ring Stainless steel or high alloy body ASME Class 150 MSS SP-135 2” to 24” (larger on request)
