Flow Measurement

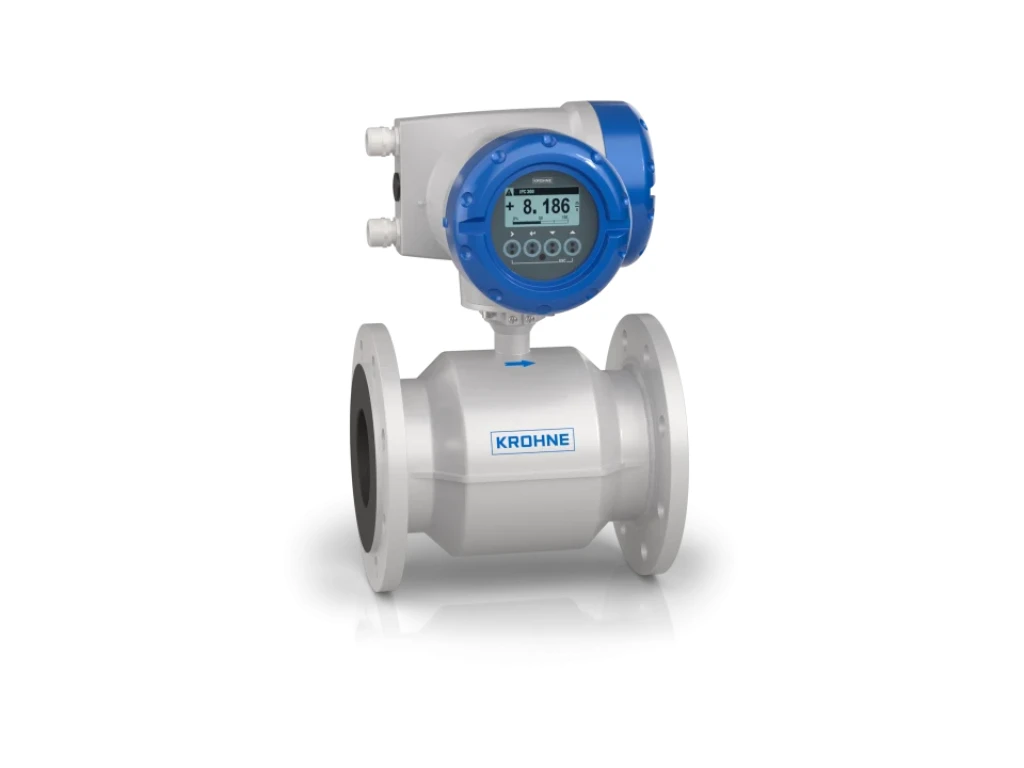

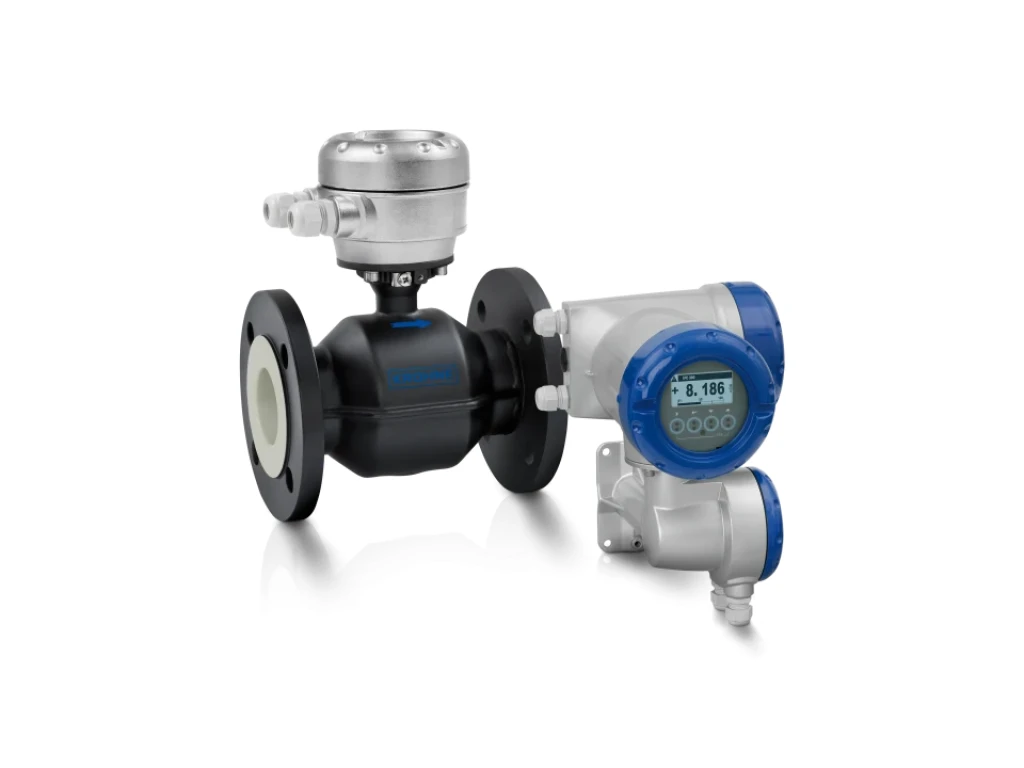

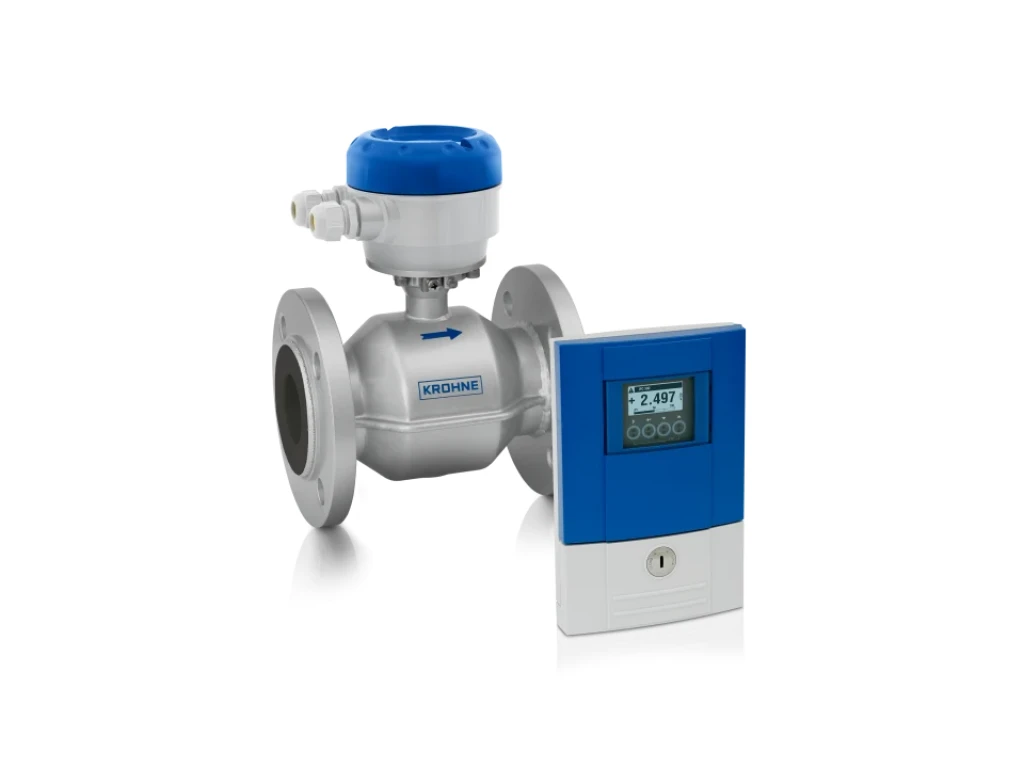

OPTIFLUX 2300
Brand:
Krohne
Electromagnetic flowmeter for advanced water and wastewater applications
- High accuracy (±0.2%), with CT approvals (OIML R49, MI-001)
- 0D/0D installation acc. to MID MI-001 and OIML R49 accuracy class 1
- Flange: DN25…3000 / 1…120", max. PN40 / ASME Cl 300
- 3 x 4…20 mA, HART®, Modbus, FF, Profibus-PA/DP, PROFINET
- Bi-directional flow measurement over a wide dynamic range (turn down ratio: up to 1000:1)
- No inlet/outlet runs needed for OIML R49 class 1 accuracy
- Widest diameter range available in the market
- Available with patented virtual reference grounding method: cost-saving installation without grounding rings
- PP or hard rubber liner: excellent chemical resistance
- Optional for burial installation and constant flooding (IP68)
- Largest custody transfer approved diameter range
- Tamper proof
- Standard measurement accuracy: ±0.2% or ±1mm/s of measured value (MV)
- Extensive sensor and process diagnostics (incl. NE 107)
- Meets potable water standards: ACS, DVGW, NSF, TZW, KTW, WRAS, KIWA, etc.
- On-site verification of flowmeter with OPTICHECK service tool
