Flow Measurement

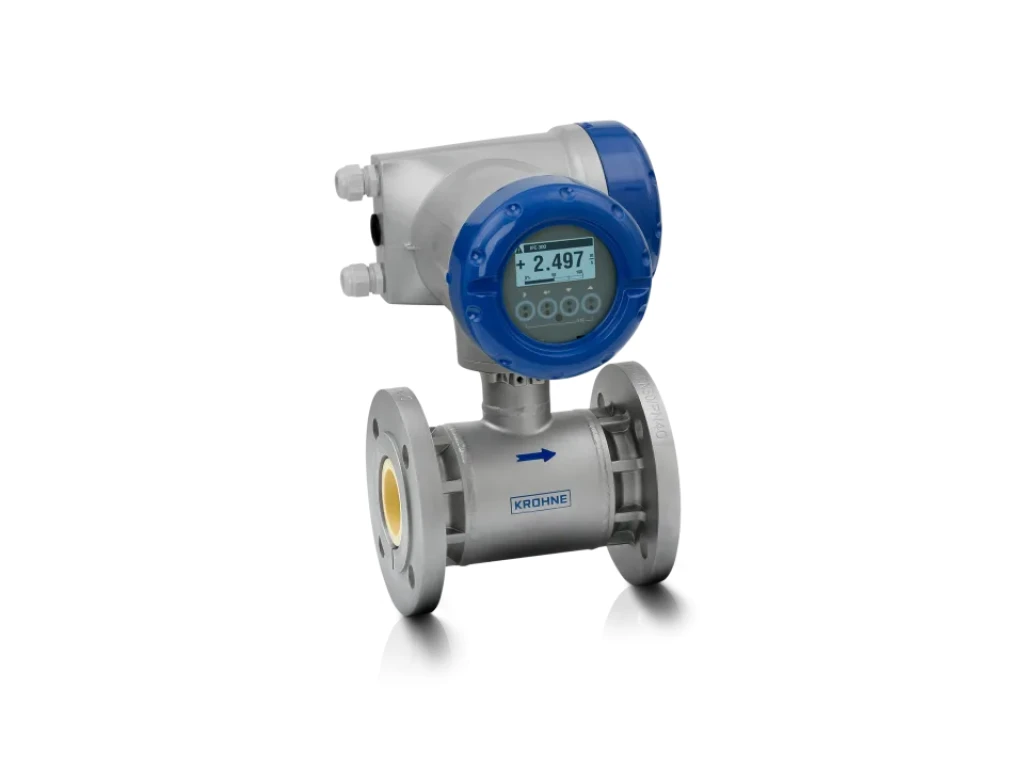

OPTIFLUX 7300
Brand:
Krohne
Electromagnetic flowmeter for low conductivity liquids (≥0.05 μS/cm)
- Ceramic tube with non-wetted electrodes for extremely adhesive and abrasive media
- Hygienic and vacuum resistant
- Flange or wafer/sandwich version: DN25…100 / 1…4", max. PN40 / ASME Cl 300
- 3 x 4…20 mA, HART®, Modbus, FF, Profibus-PA/DP, PROFINET
- Bi-directional flow measurement over a wide dynamic range
- High chemical resistance: Designed for aggressive, toxic and abrasive media
- Stable measurement in noisy applications, no insulation of electrodes
- 100% diffusion tight ceramic sensor material
- Excellent long term stability and accuracy
- Extensive sensor and process diagnostics (incl. NE 107)

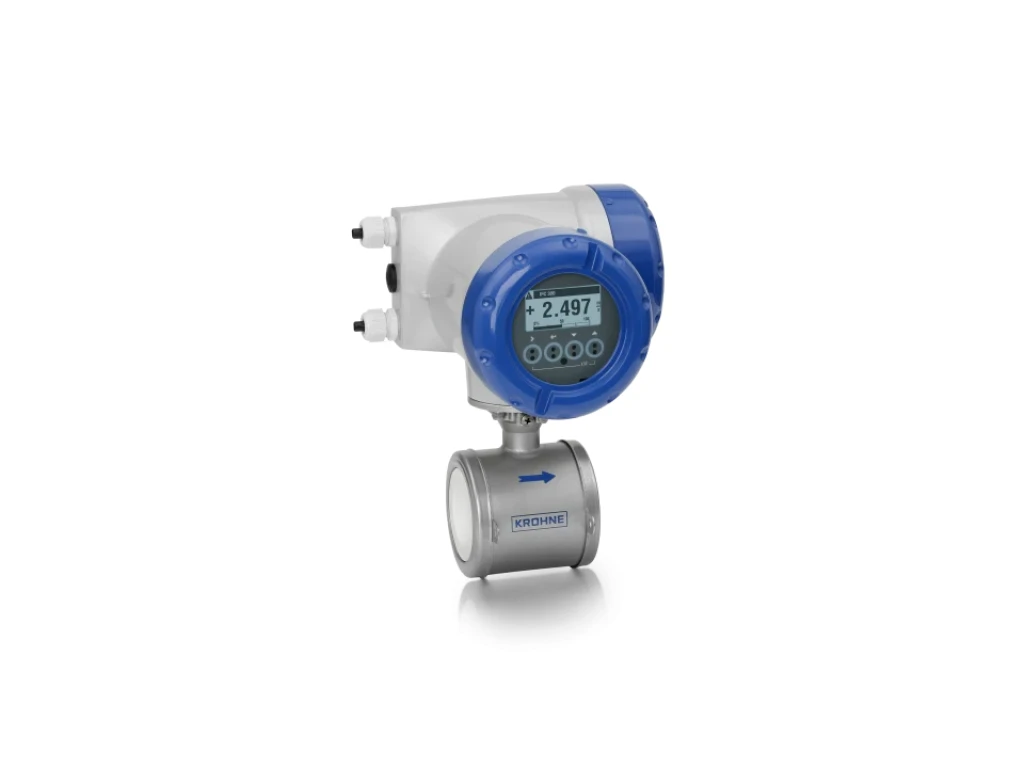

- Flange or sandwich version
- Optional extra robust flanged design for heavily vibrating constructions
- Suited for hygienic use (conforms with FDA, EC1935/2004)
- Full bore design: No moving parts, no wear, no pressure loss
- On-site verification of flowmeter with OPTICHECK service tool
OPTIFLUX 7000 Technical Datasheet
