Flow Measurement
OPTISONIC 3400
Brand:
Krohne

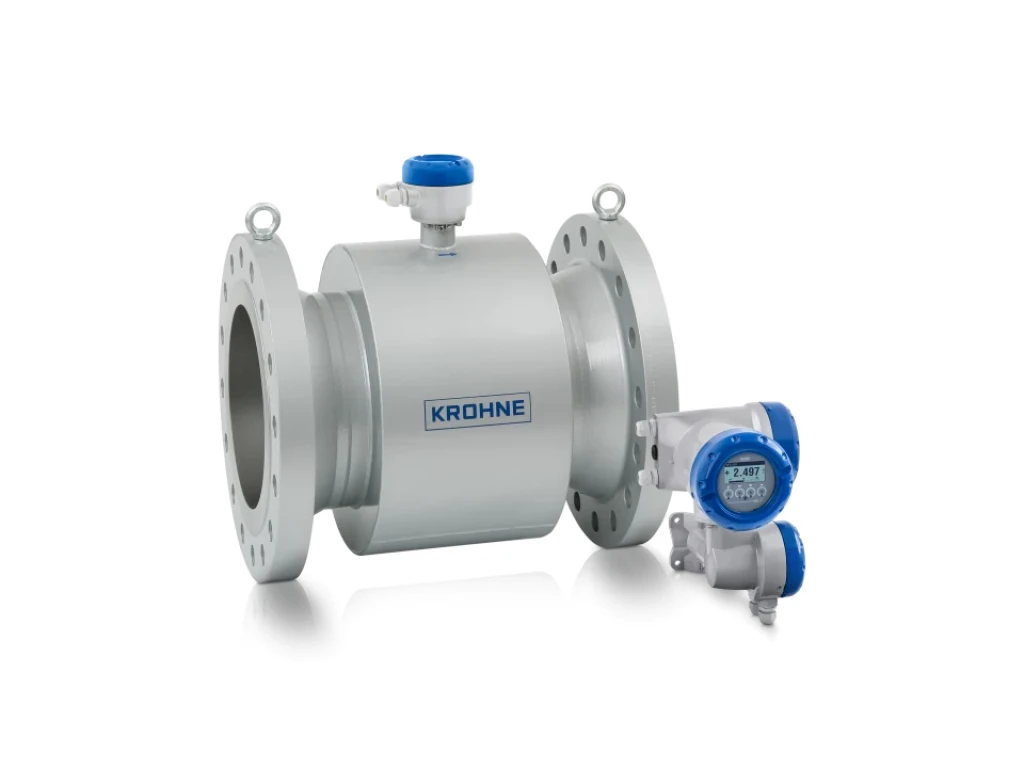

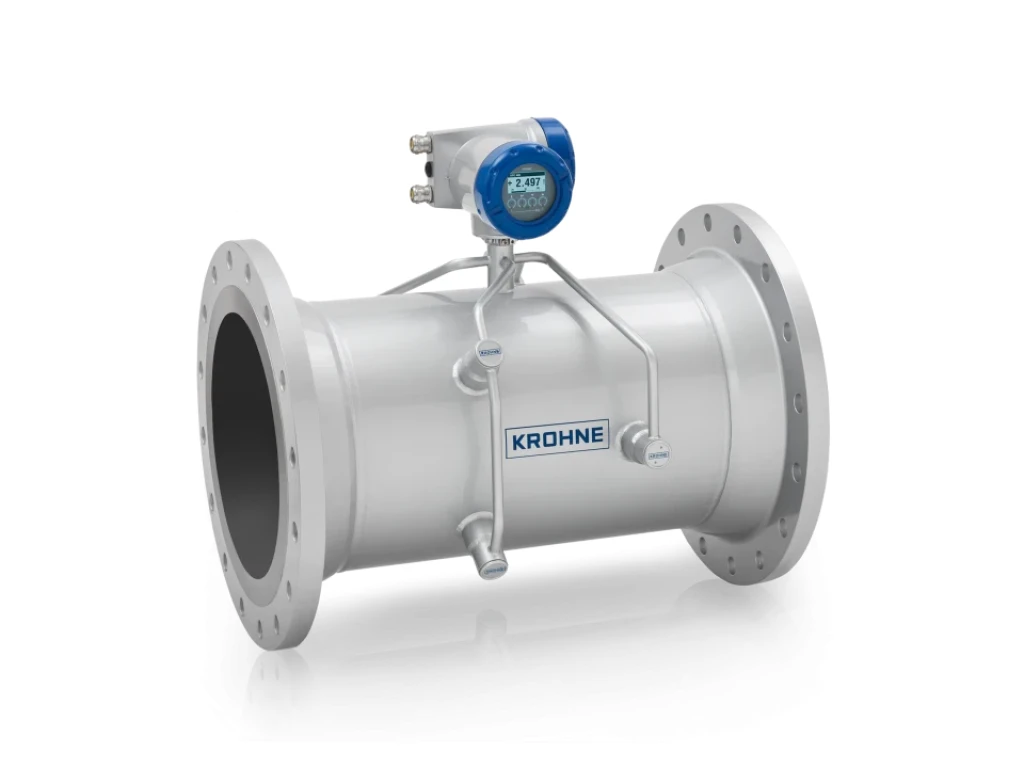

Ultrasonic flowmeter for liquid process applications
- Accurate 3-path meter: large dynamic range, maintenance-free, no pressure loss
- Cryogenic (-200°C/-328°F) and extended temperature (+250°C/+482°F) versions; viscosities up to over 1000 cSt
- Flange: DN25…3000 / 1…120", max. PN200 / ASME Cl 1500; also weld-ends
- 3 x 4…20 mA, HART®, Modbus, FF, Profibus-PA/DP
- Bi-directional flow measurement over a wide dynamic range
- Various dedicated versions for many industrial applications with conductive or non-conductive liquids
- For extended process temperature ranges
- Low or extreme pressure ratings available
- No influence of scaling due to direct path configuration
- Extensive sensor and process diagnostics (incl. NE 107)
- Optional heating jacket
- Full bore design: No moving parts, no wear, no pressure loss
- Various digital communication options
- Compact or field-mounted version (incl. cable length up to 30 m / 90 ft, optional IP68 rated)
- Suitable for use in Safety Instrumented Systems with SIL 2
OPTISONIC 3400 Technical Datasheet
