Flow Measurement

OPTISWIRL 5080

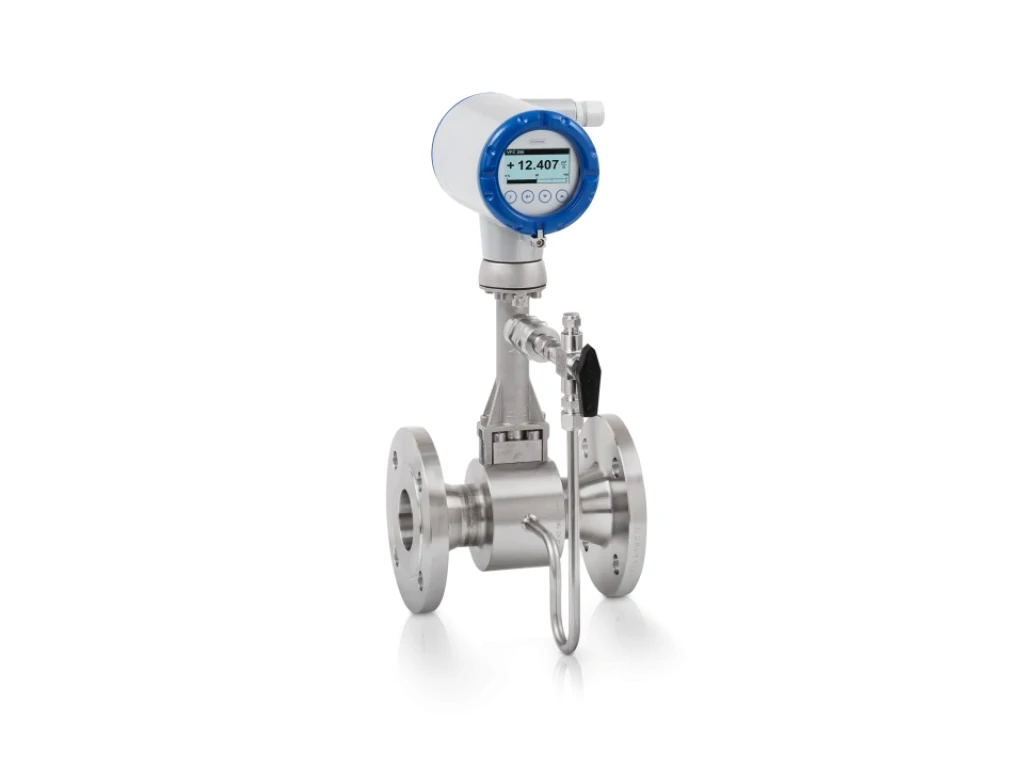

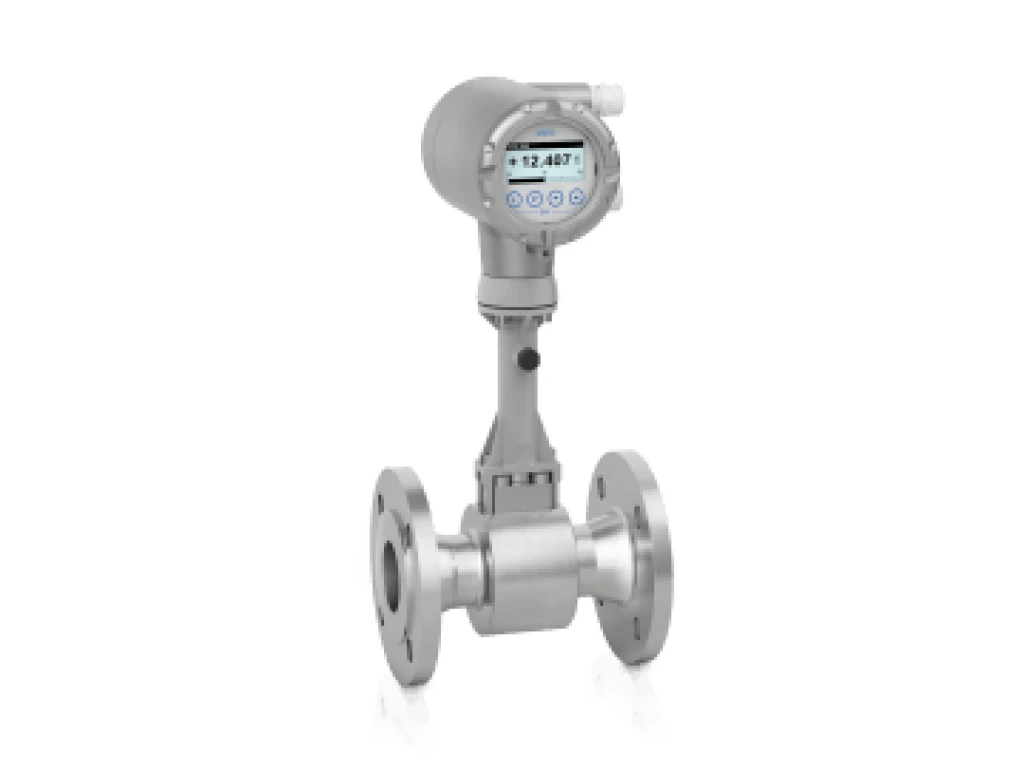

OPTISWIRL 4200

Brand: Krohne
Vortex flowmeter for utility applications and energy management systems For liquids, (wet) gases, saturated and superheated steam (+240°C / +464°F) Integrated P+T measurement: direct output of mass, normalised flow, energy, gross/net heat Flange: DN15…300 / ½…12"; wafer version: max. DN100 / 4" 2-wire, 4…20 mA, HART®, FF, Profibus-PA
- +
Download Data Sheet

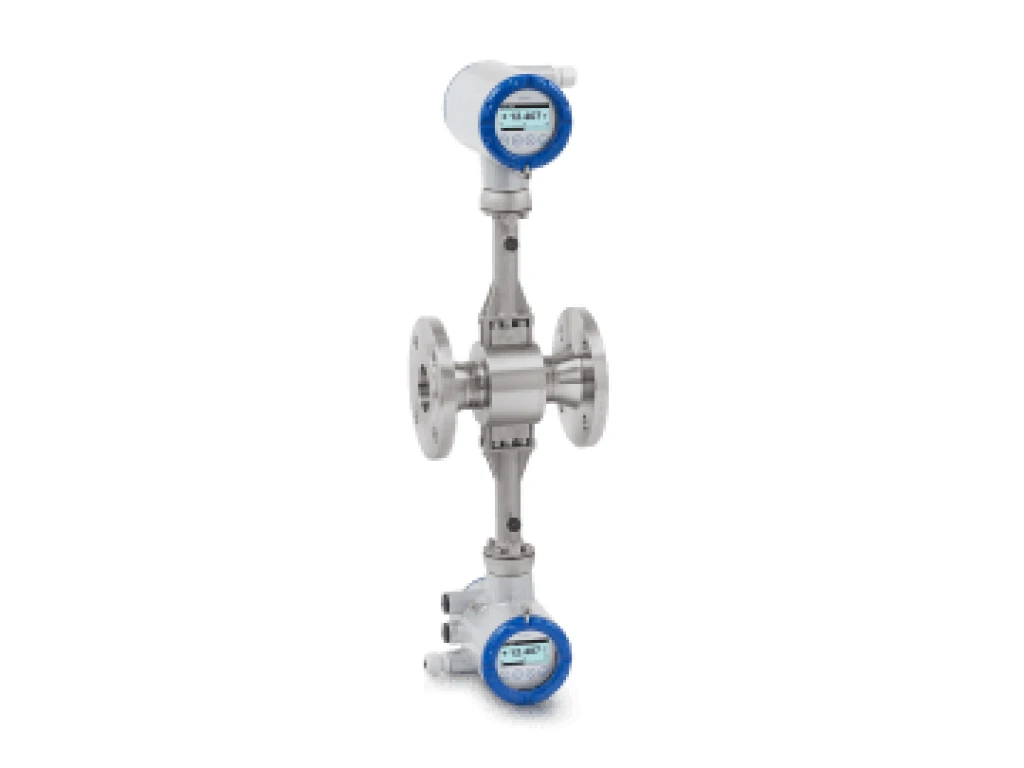

Flange or space-saving sandwich (wafer) version (up to DN100 / 4") Compact all-in-one device for varying process conditions Integrated gross and net heat calculation for steam and hot water Optional shut-off valve to allow replacement of pressure sensor without process interruption Advanced technology for signal filtering (AVFD Advanced Vortex Frequency Detection) Optional integrated reduction of nominal size for a large measurement span Approx. 45% less installation costs compared to Vortex meter with external T and P sensors plus calculator Also available as dual Vortex meter with two independent sensors and converters in one device for redundant measurement and applications with high safety requirements Also available as remote version with field housing for installation of converter 50 m / 164 ft away from the sensor SIL2/3 certified (for high, low or continuous mode of operation) On-site verification of flowmeter with service tool OPTICHECK
