Level Measurement

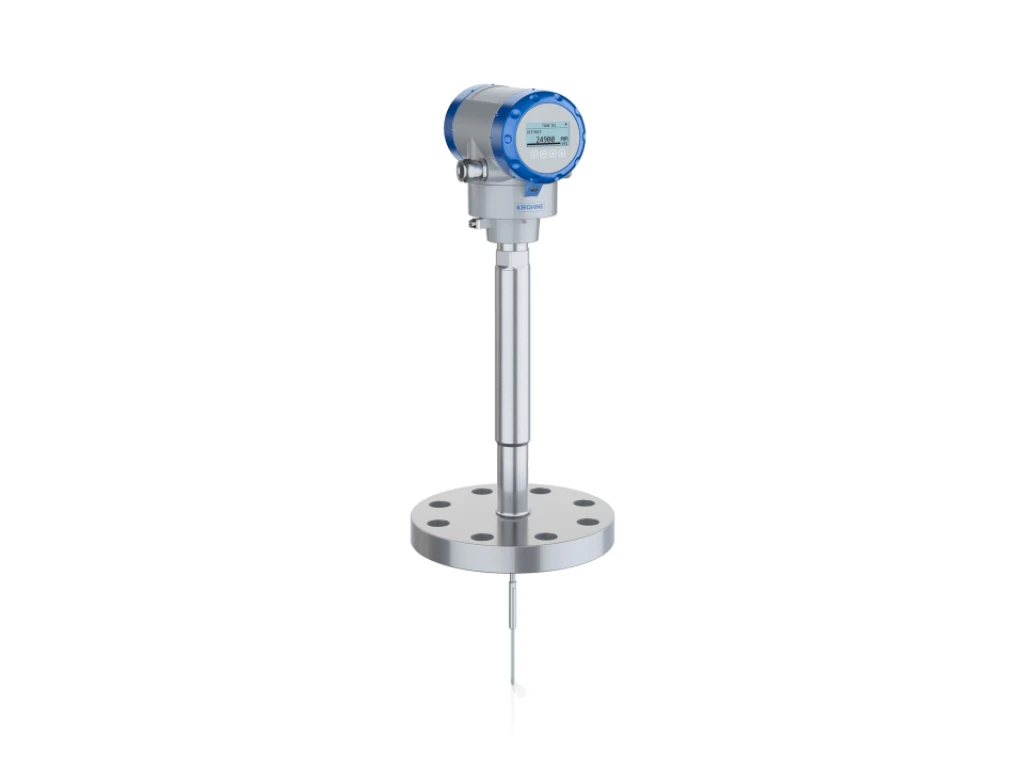

OPTIFLEX 8200
Brand:
Krohne
Guided radar (TDR) level transmitter for liquids at high temperature and pressure
- Continuous level and interface measurement in reactors and separators
- Single or double ceramic process seal system for demanding process conditions
- Measuring range: 0.6…60 m / 2…197 ft
- -50…+315°C; -58…+599°F; -1…320 barg; -14.5…4641 psig
- Various converter and electronic versions to facilitate access to the device:
- Available as compact version (C) or with remote converter (F) up to 100 m / 328 ft
- Sensor extension with compact version (S) up to 15 m / 49.2 ft
- Horizontal or vertical housing to suit every installation
- Converter is rotatable and removable under process conditions and compatible with all previous Guided Radar (TDR) level transmitters made by KROHNE
- Stainless steel housing for corrosive environment
- Weather protection - protects the converter in extreme weather conditions
- Diagnosis functions according to NAMUR NE 107
- NACE design MR 0175 (ISO 15156), MR 0103 (ISO 17945) / ASME B31.3
- SIL 2/3 certified for safety-related applications
- ±2 mm /±0.08" accuracy
- Real-time clock for event logging
- 3-year warranty
OPTIFLEX 8200 Technical Datasheet
