Level Measurement

OPTIFLEX 1100

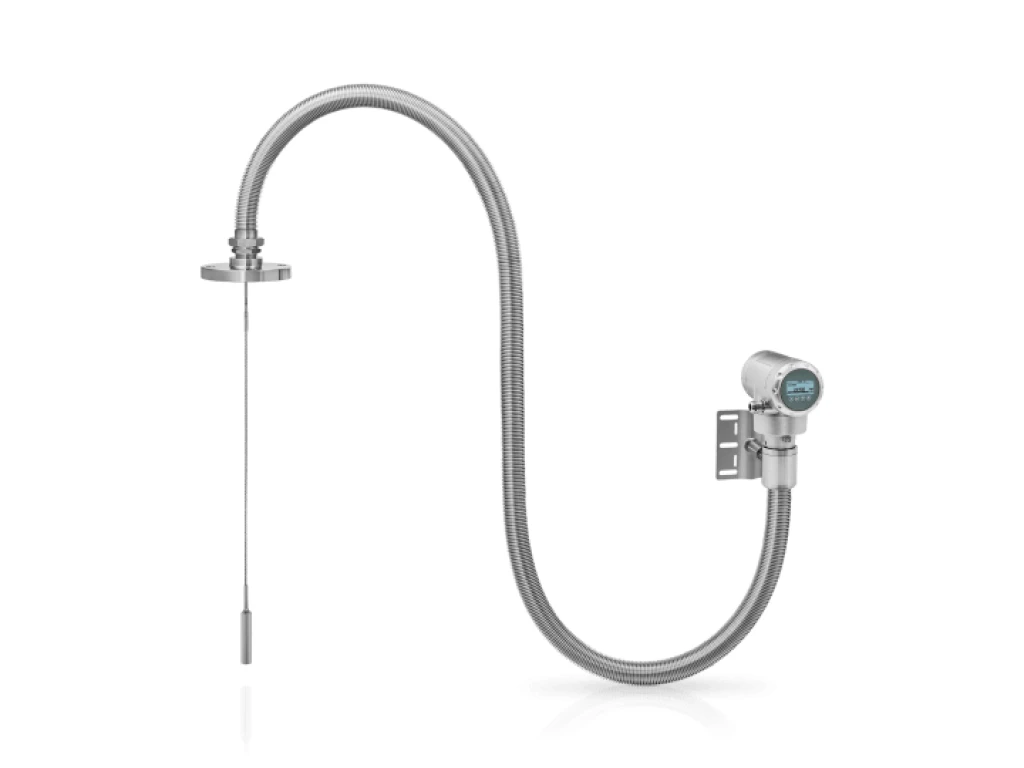

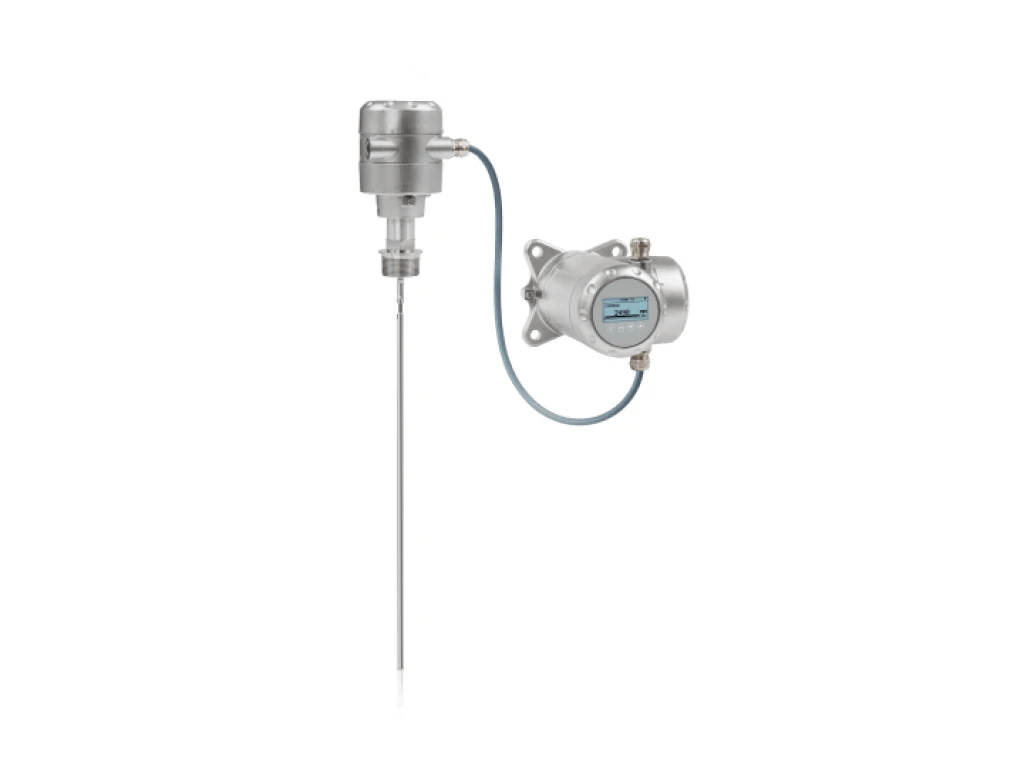

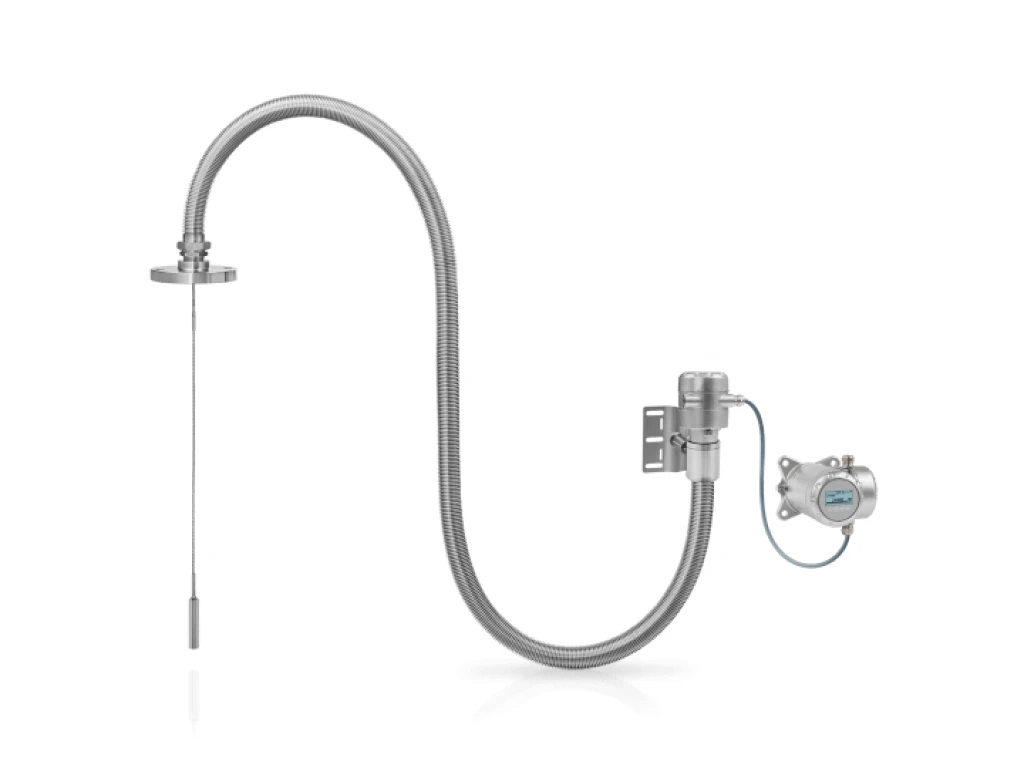

POWERFLEX 2200

Brand: Krohne
Guided radar (TDR) level transmitter for the nuclear industry Continuous measurement of level, distance, volume, mass or dielectric constant Designed and tested for industrial nuclear environments Measuring range: 0.6…40 m / 2…131 ft -50…+150°C / -58…+302°F; -1…100 barg / -14.5…1450 psig
- +
Download Data Sheet
Referenced for nuclear applications Four versions to suit safety- and non-safety-related applications Conforms to nuclear standards (e.g. ASME Section III, RCC-M) Qualified according to IEEE Std 323, IEEE Std 344 and RCC-E For high radiation levels, the converter can be installed up to 450 m / 1476.38 ft away from the probe High resistance to radiation (probe and cable) Seismic qualification up to 300 m/s2 Thermal aging qualification: +107°C / +224.6°F for 296 days DPR (Dynamic Parasite Rejection): the software dynamically eliminates false reflections caused by environmental disturbances and product build-up Quick coupling system: converter is rotatable and removable under process conditions Display keypad directly accessible without opening the cover Measuring range up to 40 m / 131 ft Design conforms to IEC 61508 Conforms to IEC 61513 The device has FDT1.2 DTM certification
