Level Measurement

BM26A-3000

BM26A-1000

Brand: Krohne

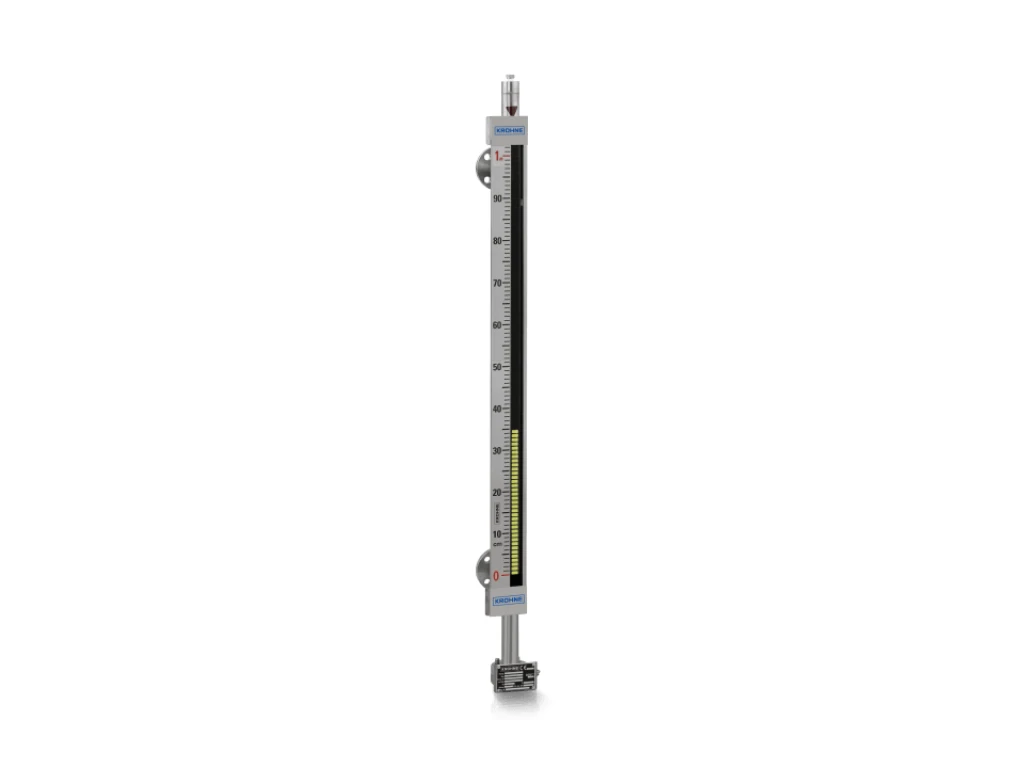

Magnetic level indicator for basic liquid applications

  • Cost-effective level measurement; no power supply needed
  • Measuring range: 0.3…5.5 / 1...18 ft (others on request)
  • Density: 700…1200 kg/m3  / 43.7…74.91 lb/ft3
  • -70…+200°C / -94…+392°F; -1…40 barg / -14.5…580 psig



- +
  • Best price/performance ratio
  • Rugged metallic design
  • Easy to install, safe and no commissioning
  • Flaps housed in hermetically sealed glass tube (IP68)
  • Highly visible level indication works without power supply
  • Optional Plexiglas® anti-icing indication
  • Available with optional reed switches (3-wire, NAMUR) or reed-chain level transmitter (4…20 mA/HART®7, FF, PA output)

BM26A-1000 Technical Datasheet



https://www.krohne.com/en-us/products/level-measurement/level-indicators-bypass-chambers/magnetic-bypass-level-indicators/bm26a-1000
