KTV Tubular Valves

Brand: Kenco Engineering

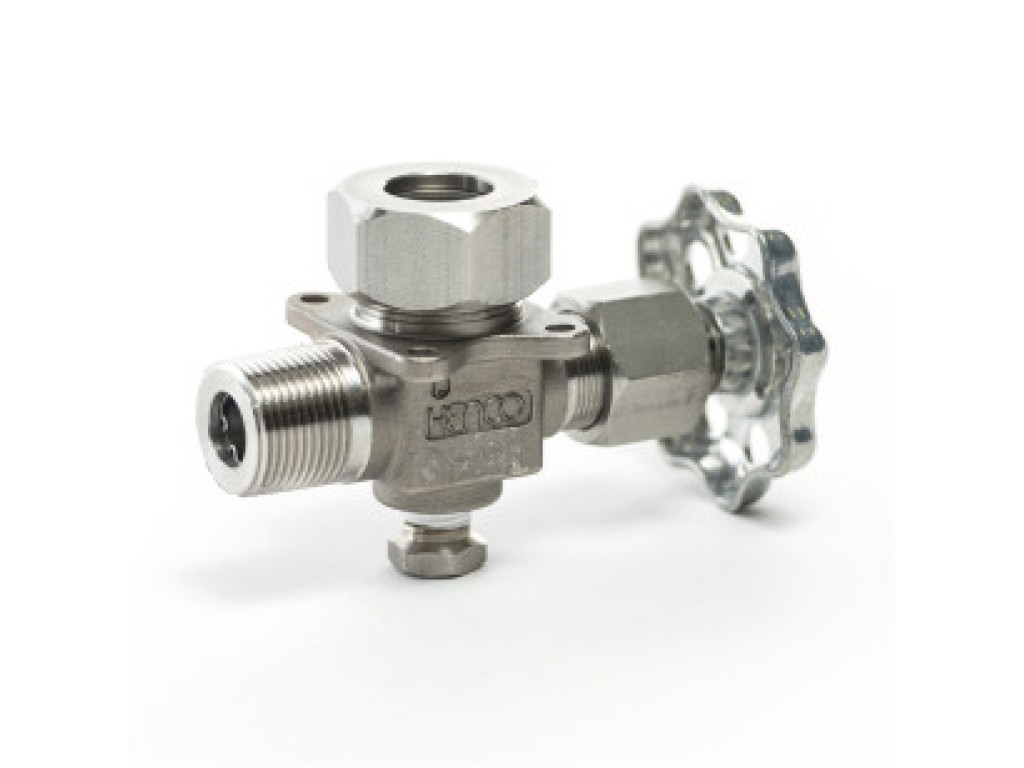

The KENCO Tubular Valve (KTV), when used with a KENCO Safeguard Level Gauge or KENCO EPG Level Gauge, provides maximum operator safety and environmental protection from a potential gauge glass failure. The KTV is designed for service in low to medium pressure applications up to 500 psig (34.47 bar).
- +
Download Data Sheet
The 1/8″ thick O-ring provides for easy installation of the glass and requires less wrenching of the packing nut to seal Positive O-ring seal gauge glass connection 1/2″ or 3/4″ MNPT rigid vessel connections Flanged vessel connections available Ball check shut off Inline vent and drain connections Straight pattern design Braided PTFE stem packing All valves are supplied with 316 S.S. valve stems, ball checks and valve stem packing washer The valve bodies are precision investment castings with each body pressure tested to assure quality
