Level Measurement
OPTIWAVE 7500
Brand:
Krohne
Radar level transmitter for advanced applications with liquids in narrow tanks with internal obstructions
- Continuous, non-contact level measurement in small and narrow tanks with agitators as well as long nozzles
- 80 GHz radar, flush-mounted Lens antenna
- Measuring range: 0…100 m / 328 ft
- -50…+200°C / -58…+392°F; -1…40 barg / -14.5…580 psig
- 2-wire, loop-powered, with HART®7
- Flush-mounted PEEK or PTFE Lens antennas (no tank intrusion)
- Insensitive to deposit
- Small dead zone and beam angle (4° with DN70 / 2¾″ Lens antenna)
- PEEK or PTFE flange plate protections as well as a PEEK thread protection for corrosive media

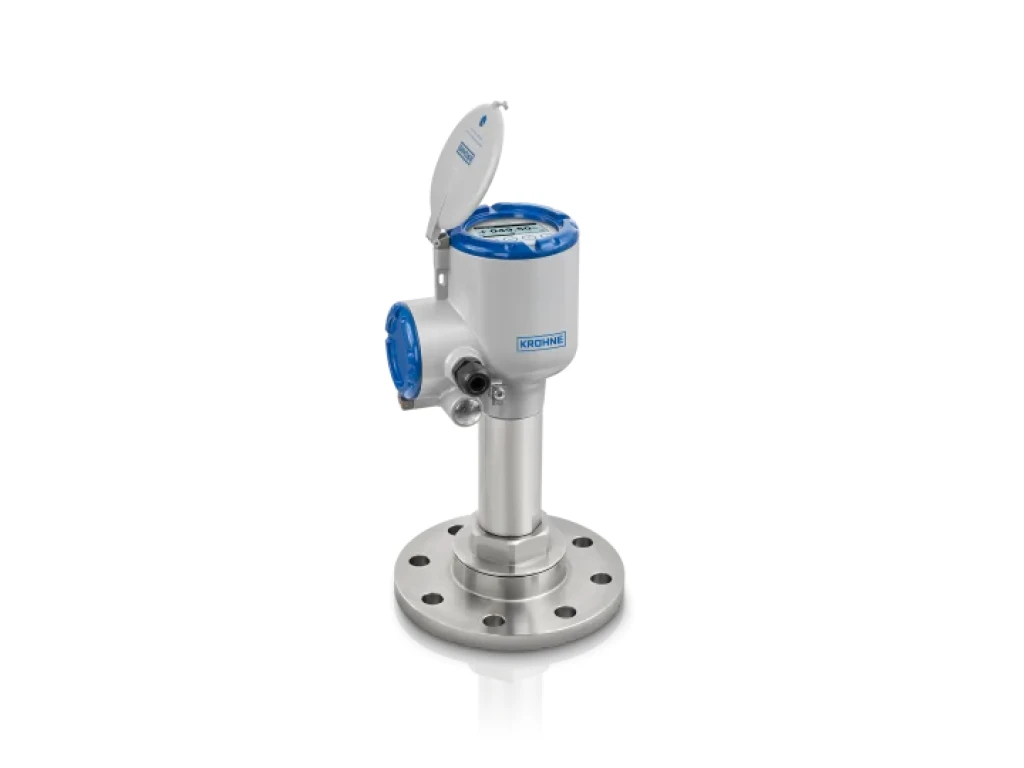

- 112 mm / 4.4″ antenna extension for long nozzles
- Empty tank spectrum function eliminates false reflections caused by tank internals
- TBM (Tank Bottom Management) ensures reliable measurement even in empty tanks:
- dedicated algorithms to filter and compensate for irregular radar wave reflections that occur at tank bottom when the vessel is empty
- allows for quick and easy commissioning of tanks regardless of their size, material or geometry
- ±2 mm / ±0.08″ accuracy
- Large range of flange and thread connections
- Large, backlit LCD screen with 4-button keypad for operation with bar magnet; no need to open the housing cover
- PACTware™, HART® DD and DTM provided free of charge with full functionality
- Extensive device diagnostics acc. to NAMUR NE 107
- SIL 2/3 certified for safety-related applications
- 3-year warranty
OPTIWAVE 7500 Technical Datasheet
