Low Set Pressure / Very Low Flow Pressure Regulating Valve The JRLL Series are low flow regulators designed and built specifically for very low pressure applications. The durable valve body and metal trim components are machined from 316L SST barstock. The valve is outfitted with a sensitive PTFE Jorlon diaphragm for accurate low pressure sensing and Teflon, PEEK, KEL-F and EPDM seats for ANSI Class VI shutoff. USDA and FDA approved soft goods available upon request. Ideal for low pressure regulation of gases Sparging Tank blanketing

Piston Operated Pressure Regulating Valve The 1/4" JRPH Series and JRPL Series are piston operated pressure regulators that offer excellent control at Cv's of 0.20 (0,17 Kv) and lower. There are six set ranges for the JRPH Series and two set ranges for the JRPL Series. Elastomer seals are used throughout with Buna-N, EPDM and Viton being standard options. USDA and FDA approved soft goods available upon request. General, corrosive and specialty gases, water, acids and oils High pressure application

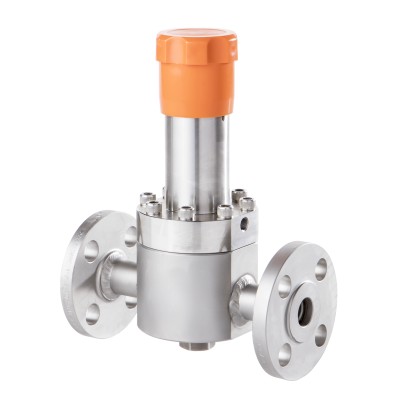

Piston Operated Pressure Regulating Valve The JRPH & JRPL Series are piston operated, balanced trim pressure regulators with high Cvs and KEL-F soft seat for ANSI Class VI shutoff. There are three set ranges for each model. Elastomer seals are used throughout with Buna-N, EPDM and Viton being standard options, along with matching back up seals. USDA and FDA approved soft goods available upon request. A variety of gases, water acids and oil applications Fuel cells

High Pressure Regulating Valve The Mark 6800HP Series is a self-operated pressure regulating valve for use on high pressure industrial gas and liquid services to 4000 psi (276 bar). The Mark 6800HP features exceptional accuracy with high flow capacities and simple in-line maintainability. For durability and dependable service, the 1/2" - 1" valves are constructed of total barstock, with all stainless steel components. Valve plugs are available with either hard or soft seats and balanced trim is available with either seat type. USDA and FDA approved soft goods available upon request. Gas and liquid services (non-cavitating)

Gas Back Pressure Regulating Valve The JB Series line of back pressure regulators have the ability to handle very high pressures and very low flows. USDA and FDA approved soft goods available upon request. Research and sampling systems for corrosive and specialty gases Gas chromatography Flame ionization detectors Industrial controls

High Cv Diaphragm Back Pressure Regulating Valve The JBDL Series is a diaphragm operated, balanced trim, back pressure regulator. The 1.95 Cv (1,69 Kv) offers increased flows across its 1200 psi (83 bar) inlet range, while the DEL-F soft seat provides ANSI Class VI shutoff. Five set spring ranges and three soft seal options offer the customer flexibility in a number of applications and environments. USDA and FDA approved soft goods available upon request. Regulate a variety of gases and liquids in compressor control Process pressure control where high flows and low pressures are required

Piston Sensed, Back Pressure Regulating Valves The JBPH Series is a piston operated back pressure regulator. The 0.5 Cv (0,43 Kv) offers increased flows across its 6000 psi (414 bar) inlet range, while the KEL-F soft seat provides ANSI Class VI shutoff. USDA and FDA approved soft goods available upon request. Research and sampling systems for corrosive and specialty gases Gas chromatography Flame ionization detectors Industrials controls

High Pressure Back Pressure Regulating Valve The Mark 5800HP Series is a high pressure, back pressure regulator designed to maintain upstream pressure of gases and liquids. As a compact, lightweight product, it is well suited for applications where space and weight are at a premium. The T-bar adjusting handle allows for a lighter spring and more sensitive regulator than models with a fixed knob. USDA and FDA approved soft goods available upon request.

High Pressure Back Pressure Regulator The Mark 5850HP is a high pressure, back pressure regulator designed to maintain upstream pressure of gases and liquids. With a robust piston design, the Mark 5850HP can handle setpoints up to 5000 psig (345 bar) at 450°F (232°C) with ease. USDA and FDA approved soft goods available upon request. High pressure vessel venting High pressure injection applications Gas/liquid sampling station Compressor skids Test standards
