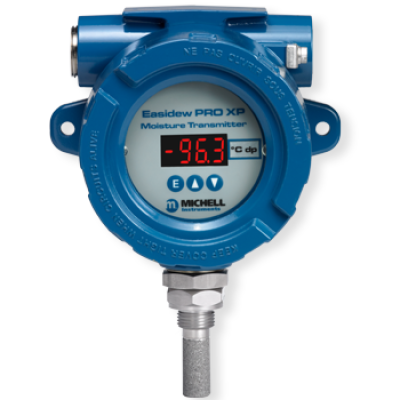

Measurement range –110...+20 °Cdp ATEX, IECEx, UKCA, cQPSus, TR CU Ex certified Accuracy ±1 °Cdp 2-wire 4...20 mA output Traceable 13-point calibration certificate 450 barg pressure rating Alternative process connections available Material certification to BS EN 10204 3.1 Moisture in gases and liquids Service exchange program Oxygen Service cleaned

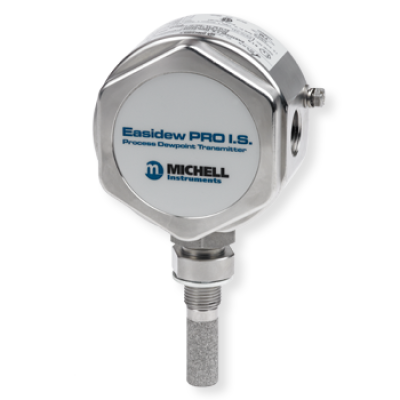

Measurement ranges -110 up to +20 °Cdp (-166 to 68 °Fdp) Global explosion / flameproof certification Accuracy ±1 °Cdp (±1.8 °Fdp) 2-wire 4...20 mA output Traceable 13-point calibration certificate 450 bar (6527 psi) pressure rating Low cost of ownership and easy maintenance with sensor exchange program 3/4” UNF industry standard process connection EN 10204 3.1 material certification Moisture in gases and liquids Integral display meter Oxygen service cleaned

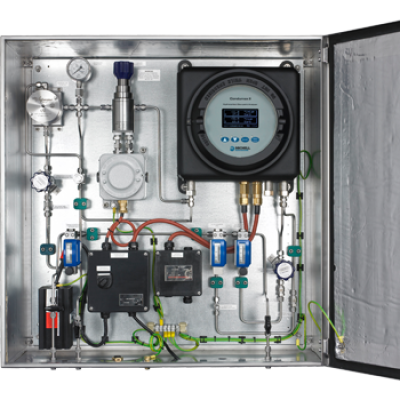

Fundamental principle of dew point measurement with a chilled/refrigerated mirror. Fully automatic identification of water dew point and hydrocarbon levels. Depression measurement range above 65˚C Hydrocarbon dew point accuracy ±0.5 °C IECEx, ATEX, cQPSus and UKEX certifications Operating pressure rating of 100 barg (1450 psig) 3 x 4...20 mA user-configurable outputs 1 system alarm, 3 process alarms, selectable for all measurement parameters. Modbus RTU or TCP/IP interface

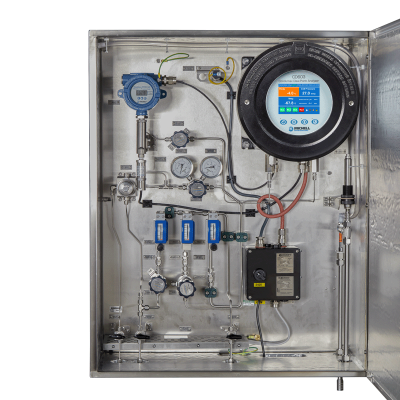

Fully automated online analysis Objective, highly repeatable measurements 0.5 °C Melting mirror principle Patented detection technique Self-cleaning No purging or cooling gas is required. Optional analysis of water dew point. Modbus RTU IECEx, ATEX, UKCA, cQPSus and GOST Ex certifications

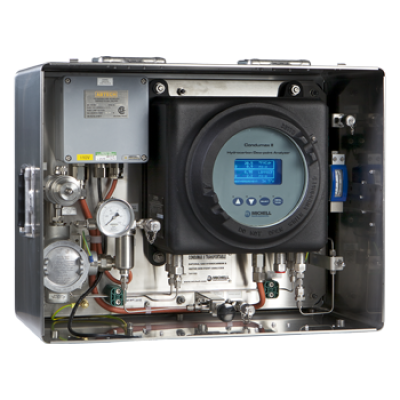

Field-transportable dew point analyzer system Simultaneous measurements of HC and water dew points in a single analyzer. Automatic objective measurements based on proven industry principles. Specific parameter sensors ensure the continuity of readings of HC and water dew points. Self-contained sample treatment, conditioning and analysis kit 0.5°C accuracy of the HC dew point The principle of the cooled mirror is fundamental.

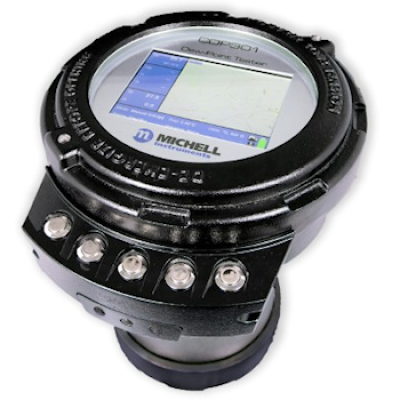

Fundamental principle of measuring the dew point of cold mirrors/brakes High-definition color LCD screen Visual identification of water and hydrocarbon dew point. Automatic control of the mirror cooling rate according to ISO 6327 and ASTM D1142 test methods for natural gas dew point measurements. Self-contained and rechargeable battery Exd certified IECEx ATEX UKCA Zone 1 IIB+H2 T3 100 barg operating pressure Wider measurement range of depressions than 60˚C (up to 100 barg of pressure) Better than +/-0.5˚C accuracy in mirror surface measurement.

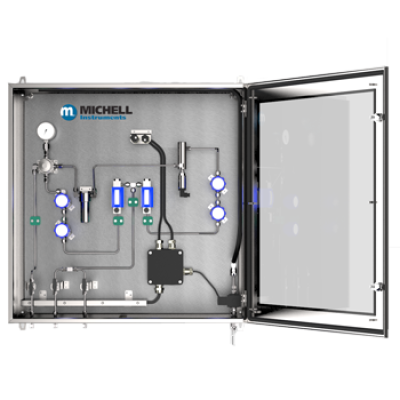

Mounting options on the interior or exterior panel of the enclosure. Process connection via 6mm or 1/4" pipe fittings. High-quality components, stainless steel pipes and fittings Sample inlet pressure up to 138 barg Flexible filtration options Transmitter selection, flow and pressure control Comprehensive documentation options with BS EN 10204 3.1 and NACE MR0175 certification available.

Simple operation, economical and low maintenance. Retrofit functionality, easy to integrate into existing sampling or distribution systems. High integrity moisture in liquid measurement from 0.01 ppm W to saturation point Multi-channel with up to four completely independent measurement channels. Robust design for undisturbed operation in many non-polar liquids for extended periods. Three configurable 4...20 mA outputs and Modbus RTU-based digital communication. Sensor element replaceable by Michell Calibration Exchange Service for reliable and low-cost calibration. NIST and NPL traceable calibration Available version Optional, highly reliable and economical 2- wire O2 loop transmitter.

Compact, lightweight, and easy to install. Intuitive user interface Difficult IP55 accommodation Low cost of ownership due to minimal maintenance. The measurement ranges from 0 to 5% up to 0...100% and 50/80/90...100%. Scale accuracy better than ±1% of full scale 2 x 4...20 mA outputs and Modbus RTU over RS485 as standard.

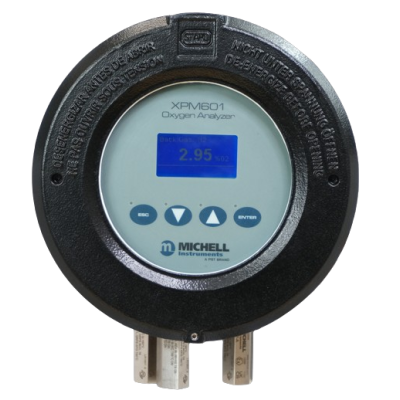

Suitable for use in ATEX, UKCA, IECEx, TR CU Ex & cQPSus certified Hazardous Areas. Optional status LEDs following the NAMUR standard. Compact and robust design with an EExd housing and 4...20 mA output. The touchscreen allows for calibration or adjustment without the need for a hot work permit. Accuracy of better than ± 2% of full scale. IP66 rated enclosure Low cost of ownership due to minimal maintenance. Typical ranges available: 0...5% up to 0...100% (others gas dependent) Stability ±0.5% per month (of range)

Compact, lightweight, and easy to install. Intuitive user interface Difficult IP55 accommodation Low cost of ownership due to minimal maintenance. The measurement ranges from 0 to 1% up to 0...25% O2 and 20/80/90...100% O2 Scale accuracy better than ±1% of full scale 2 x 4...20 mA outputs and Modbus RTU over RS485 as standard.

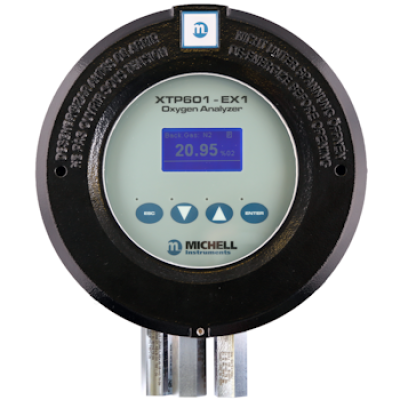

Measurement range of 0 to 5% O2 in H2 High-precision measurement performance Fast measurement response time Meets the requirements of IEC 61508 standard (SIL2 capability). Certified for hazardous areas (Exd) - UKEX, ATEX, IECEx, cQPSus Low cost of ownership due to minimal maintenance. The glass screen allows for operation, configuration, and calibration. Analog and digital outputs, and user-configurable alarm setting points.

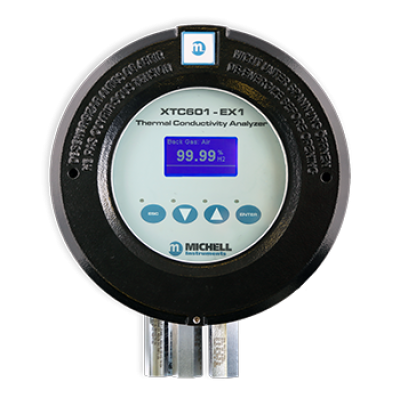

Certified models for general purposes or ATEX, UKCA, IECEx, cQPSus, TR CU & Ex for hazardous areas. Meets the requirements of IEC 61508 (SIL 2 Capable) Available changes: 0...0.5% up to 0...50% & 20, 80 or 90...100% The touchscreen allows for calibration or adjustment without the need for a hot work permit. The intrinsic error (precision) is better than 1% of full scale. Stability of the range at 0.25% of the range per month. The results include RS485 and two 4...20 mA (following the NAMUR NE 44 standard). Low cost of ownership due to minimal maintenance and absence of consumable parts.

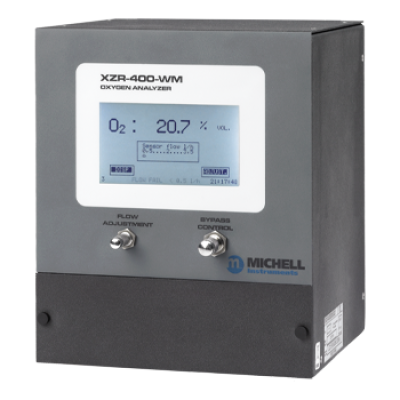

Response time Simple and easy operation. Low maintenance and cost of ownership. There is no need for reference air. Barometric pressure compensation Multiple outputs available: 4-20 mA, RS485 Modbus RTU and RS232 Available versions for rack, wall, countertop, and portable mounting. Optional built-in Easidew transmitter with rack-mount version.
