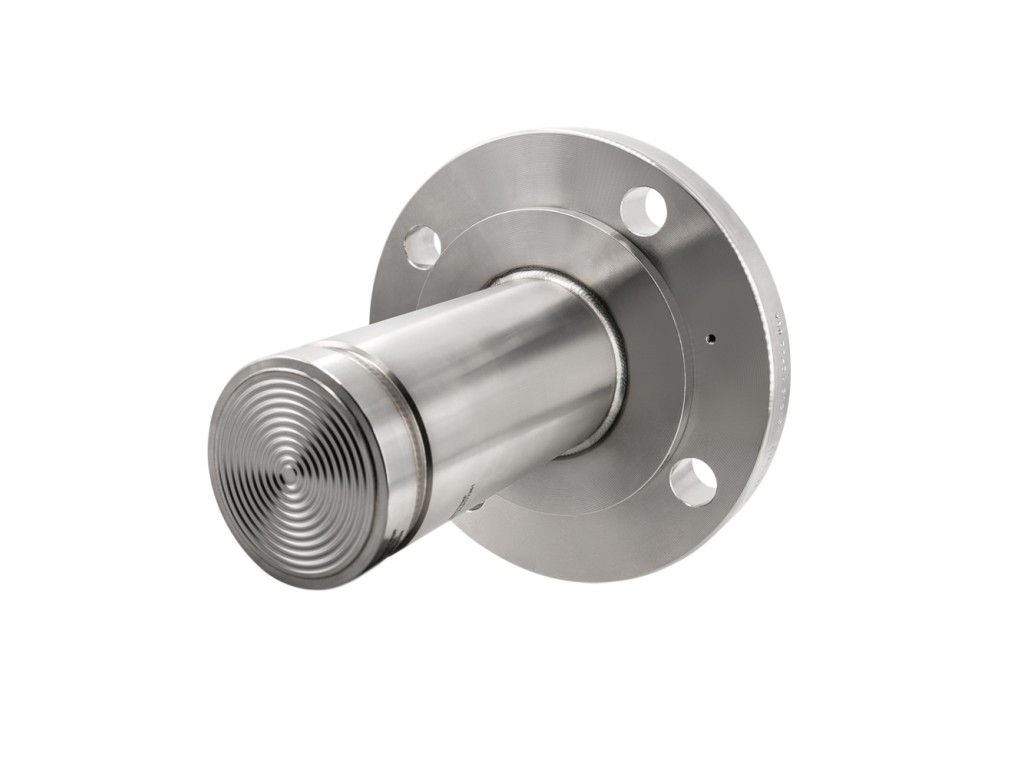

The Extended Diaphragm Seal is ideal for highly viscous and dry powder applications. Its unique design eliminates dead space in piping. It is often used for flush mounting in thick-walled vessels and is available in standard and custom lengths.
Wetted Materials: 316L SS, Hast C-276, Monel A400, Alloy 20, Zirconium, Titanium, and Others
Flange Material Non-Wetted: 316L SS (Standard), and Others
Process Temperature Limits: -150°F to 850°F
Ambient Temperature Limits: Determined by the Pressure Instrument.
