Pressure Measurement

All Stainless Industrial Low Pressure Gauges
General Purpose Brass Low Pressure Gauge

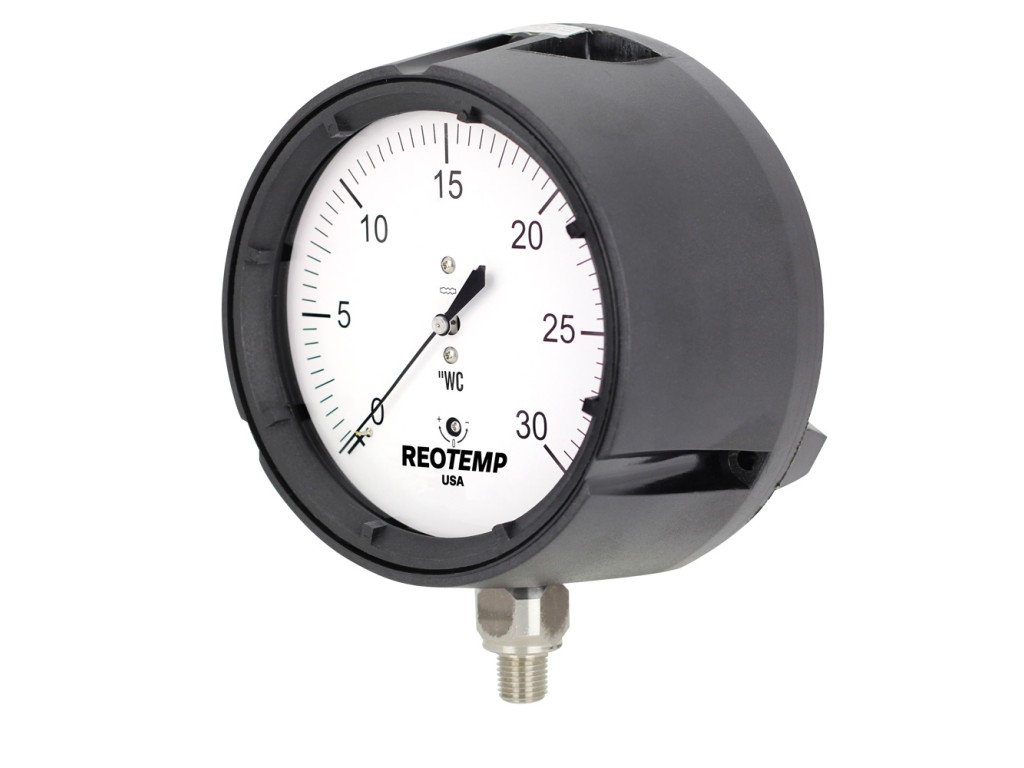

4.5″ Low Pressure Process Gauge

Brand: Reotemp
REOTEMP’s Series PC45 low pressure capsule gauges offer accurate and reliable measurements of gaseous media. Offered with stainless steel internals, they are designed to withstand corrosive media and ensure a long-lasting instrument. Sensitive Diaphragm/Capsule Mechanism Safety Blowout Back Easy-Access Zero Reset Screw on Dial NACE MR-0175 and MR-0103 Compliant ASME B40.100 Design
- +
Download Data Sheet
Construction Materials Non Wetted Case: 304SS Ring: 304SS, Bayonet Twist-Off Dial: White Aluminum, Black Letters Wetted Capsule: 316LSS Socket: 316SS Case-to-Socket Screw Connection & Vented Case Lens Tempered Safety Glass (Stdandard), Plastic, or Laminated Safety Glass Temperature Limits Ambient -40°F to 150°F Process -40°F to 200°F Process When Assembled with a Diaphragm Seal Direct Mount: -60°F to 350°F Remote Mount or Cooling Tower: -100°F to 750°F Accuracy: 1.6% Full Scale, ASME Grade A+ Fillable: No Restrictor Screw: Yes Max Working Pressure: Stable = 100%, Momentary = 130% of scale Weight: 2.5” = 0.5 lbs, 4” = 1.1 lbs, 6” = 2.1 lbs
