Regulators

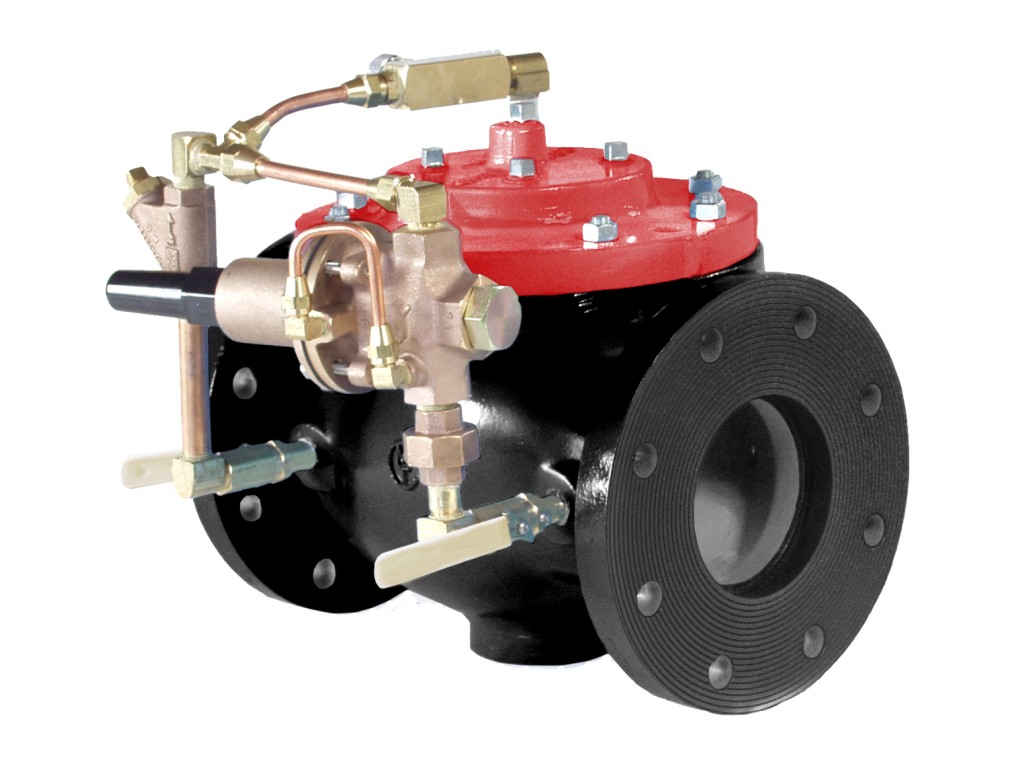

Mark 6127
Brand:
Jordan Valve
Piloted, Liquid Pressure Regulating Valve
- The Mark 6127 pressure-reducing valve is used in many applications worldwide.
- Primary function of the Mark 6127 is to reduce a greater upstream pressure to a lesser, more manageable downstream pressure, and operate without regard to either upstream supply or downstream demand.
- The liquid pressure regulator valve is easily maintained without removal from the line.
- Reduces higher inlet pressure to a constant lower outlet pressure
- Outlet pressure is accurate over wide range of flow
- Pilot-operated main valve is not subject to pressure fall off characteristic of direct-acting PRV’s
- Outlet pressure is adjustable over complete range of control spring
- Sizes: 1-1/4″ – 24″
- Body Material: Ductile Iron, Cast Steel, Cast Bronze, Stainless Steel
- End Connection: Flanged (#150, #300), Screwed, Grooved End
- Diaphragm: Buna-N, Viton, EPDM
- Max Inlet Pressure: 740 psi (51 bar)
