Regulators

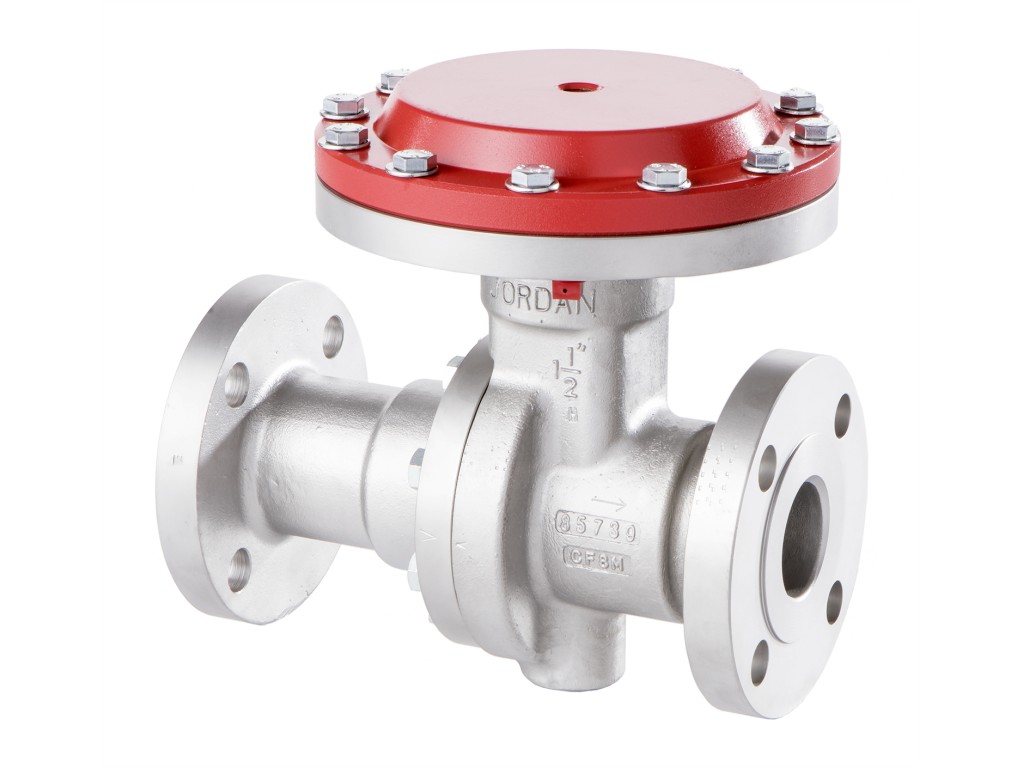

Mark 66/660
Brand:
Jordan Valve
Air Loaded Pressure Reducing Regulator, Sliding Gate Seat, High Accuracy
- The Mark 66/660 is a highly accurate and economical air loaded pressure regulator that provides regulation from a local station or from a remote station.
- Dome loading combined with the sliding gate seats provide excellent regulation and rangeability.
- This air loaded regulator valve can be coupled with an extended range I/P for remote operation. It can also be manually controlled with a MK12 loading station or a LowFlow JR regulator.
- All metal-to-metal contacts – No gaskets or o-rings to wear out (2”/DN50 and under)
- Versatile Application – Use on steam, air, gas, liquids, or chemicals
- Sliding Gate Seats – Straight-through flow for reduced turbulence and quiet operation, short stroke for fast response and accurate regulation, tight shutoff, and easily interchangeable Cv’s
- Remote/frequently changing set points
- Sizes: 1/2″ – 6″ (DN15 – DN150)
- Cv (Kv): up to 395 (up to 340)
- Diaphragm: Jorlon, Stainless Steel, Buna-N, Viton
- Setpoint: up to body ratings
- Body Material: Ductile Iron, Bronze, Carbon Steel, Stainless Steel, Cast Iron
Mark 66/660 Technical Datasheet
