Regulators

Brand: Low Flow

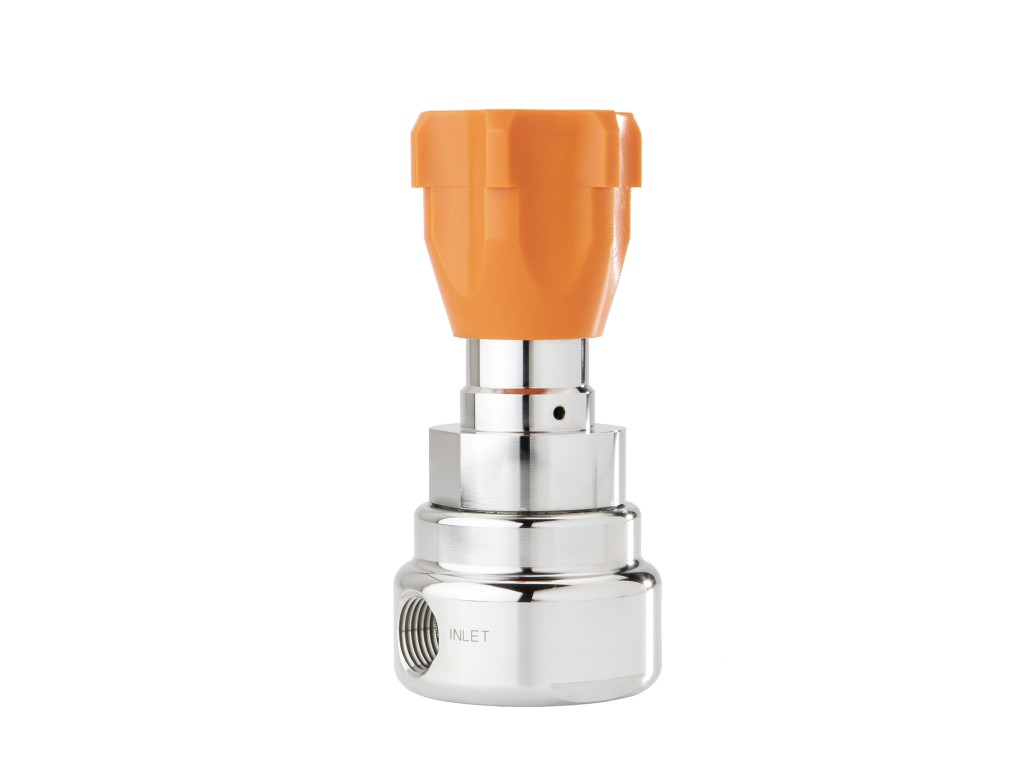

Very High Pressure / Low Flow Pressure Regulator The JRH Series of high pressure regulators has the ability to handle high pressures as well as low flows. USDA and FDA approved soft goods available upon request. Research and sampling systems General, corrosive and specialty gas and liquid service
- +
Top entry design facilitates in-line cleaning and maintenance Barstock construction guarantees material integrity and surface finish High flow rate coupled with high rangeability reduces need for reduced trim sizes Optimized internal volume Jorlon diaphragm material provides exceptionally long life KEL-F soft seat material for ANSI Class VI shutoff Seat Type: KEL-F / Viton Sizes: 3/8″ & 1/2″ (DN10 & DN15) End Connections: Threaded, Socket Weld, Flanged, others Body Materials: 316L Stainless Steel, Hastelloy C, Monel, Alloy 20, others Cv (Kv): 0.8 (0,69) Spring Range: 2-10 psi (0,14-0,69 bar) to 75-450 psi (5,2-31 bar)
