Temperature Measurement
Temperature Measurement

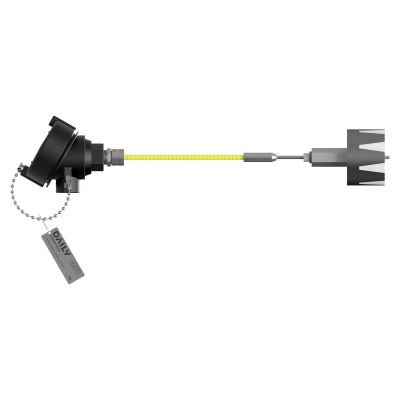

VSS™ Magnetic Vessel Skin Sensors
- Unsurpassed in reliability and accuracy for real-time monitoring of temperature variations on ferritic vessel surfaces
- Daily Thermetrics’ Magnetic VSS™ is the best solution for increasing sensor density without compromising the integrity of the vessel surface
- The Magnetic VSS™ installs within seconds and provides optimum contact of the sensor to the vessel surface for the life of the sensor.
- When the job calls for superior heat transfer, accurate temperature measurement, and the ability to exchange sensors without successive welding, refiners turn to Daily Thermetrics and the Magnetic VSS™.
- The Magnetic VSS™ proprietary design allows for effortless replacement of the sheathed sensor without the need to remove vessel insulation or hot-work.

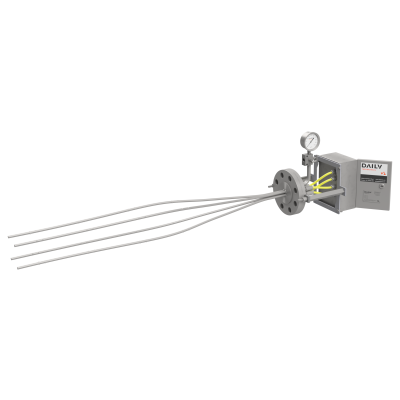

CatTracker®
- MOST ADVANCED TRACKING TECHNOLOGY The CATTRACKER® CATALYST TEMPERATURE TRACKING SYSTEM, patented by Daily Thermetrics and first introduced commercially in 2001, is a proven technology with superior operational service over five continents profiling hundreds of reactors, regenerators, and fractionating columns.
- The CatTracker®, employing patented aerospace thermocouple technology, offers the process industry the most rugged yet flexible temperature probes designed to be in direct contact with the process.
- CatTracker® temperature sensors are engineered to withstand the harshest environments and the most strenuous temperature demands.

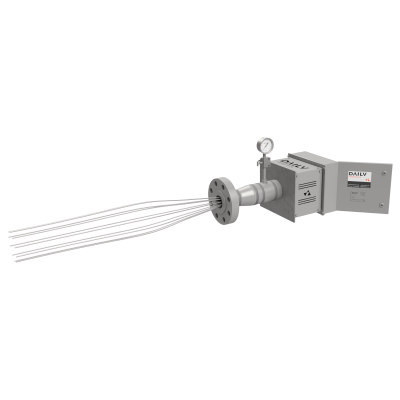

CatFlex
- Daily Thermetrics provides numerous designs for vessel thermometry
- The Catflex consisting of multiple individual TC points at different lengths designed to fit your application

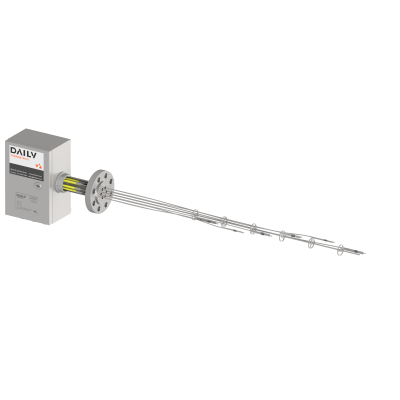

HeatFlex
- Daily Thermetrics provides numerous designs for vessel thermometry
- The Heatflex consists of multiple individual TC points at different lengths in a "caged" insert into a pipwell
- Each TC end is connected to a bimetallic strip, and when heated, the TC tips are pressed against the wall of the pipwell

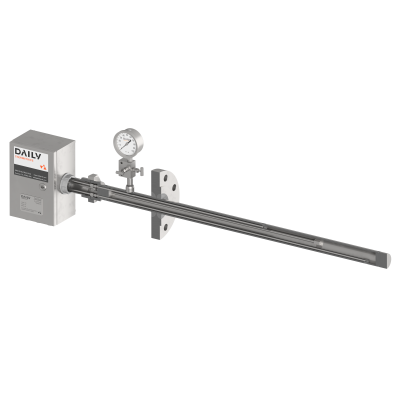

Guide Tube Multipoint
- Daily Thermetrics provides numerous designs for vessel thermometry
- The Guide Tube Multipoint consists of a pipewell with individual guide tubes at different lengths attached to heat sink blocks at the sensing point
- Individual thermocouples can be removed for maintenance while running
Back Connect Bimetal Thermometer
Reotemp’s Bimetal Thermometers offer dependable and precise temperature monitoring without the need for electricity or wiring. The Industrial Grade is available in stock, while the Process Grade can be tailored to specific requirements. Back Connect Thermometers are well-suited for obtaining local, eye-level temperature readings in various process applications. These thermometers offer the convenience of recalibration with a simple turn of the calibration screw located on the back of the dial.
Five Year Limited Warranty
Accuracy ± 1% Full Scale (ASME B40.3 Grade A)
Hermetically Sealed (ASME B40.3)
Standard External Reset for Calibration
Fully Customized Dials Available
Silicone Fillable for Vibration Available

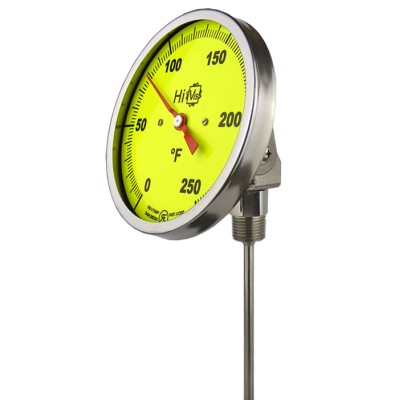

Adjustable Angle Bimetal Thermometer
Reotemp’s Bimetal Thermometers are reliable and accurate temperature sensors requiring no electricity or wiring. Adjustable Angle Thermometers allow for easy temperature monitoring from any position and they are ideal for local indication. They can be recalibrated with a turn of the calibration screw on the back of the dial.
Dial can be adjusted to any position for easy viewing.
Made to ASME B40.3 Specifications
Accuracy ± 1% Full Scale (ASME B40.3 Grade A)
All Stainless Steel Construction
Hermetically Sealed (ASME B40.3)
Silicone Fillable for Vibration
Standard External Reset for Easy Calibration
OEM Logo Dials/Custom Dials
Five Year Warranty
Bottom Connect Bimetal Thermometer
Reotemp’s Bimetal Thermometers offer dependable and precise temperature monitoring without the need for electricity or wiring. The Industrial Grade is available in stock, while the Process Grade can be tailored to specific requirements. Designed for side and elevated installations on tanks or pipes, Bottom Connect Thermometers are perfect for local indication. With the convenience of recalibration using the calibration screw on the dial’s back, these thermometers provide versatility and accuracy.
Five Year Limited Warranty
Accuracy ± 1% Full Scale (ASME B40.3)
Hermetically Sealed (ASME B40.3)
Standard External Reset for Easy Calibration
Fully Customized Dials Available
Silicone Fillable for Vibration Available

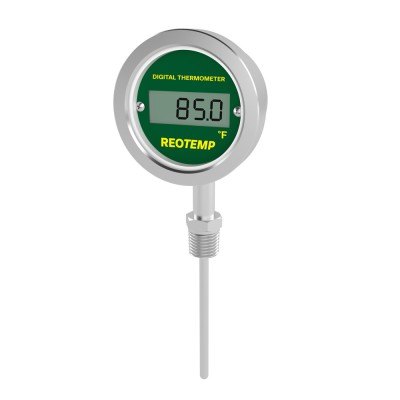

Bottom and Back Mount Industrial Digital Thermometer
The Reotemp Digital Thermometer/Transmitter is a durable high accuracy thermometer with digital display. It features an IP67/NEMA 4X enclosure, 5 year battery life and optional transmitter output (Note: 4-20mA models are loop powered 9-36VDC).
High Accuracy 1,000Ω RTD (Class A)
Water Resistant IP67/NEMA 4X
5 Year Battery Life (4-20mA Models are Loop Powered)
4-20 mA Output Available (Loop Powered 9-36VDC)
Low or High Temperature Range Models

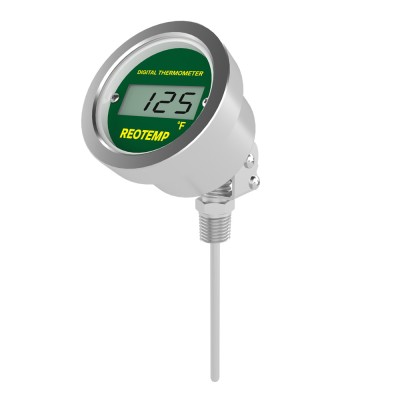

Adjustable Angle Industrial Digital Thermometer
The Reotemp Adjustable Angle Digital Thermometer/Transmitter is a durable high accuracy thermometer with digital display. It features an IP67/NEMA 4X enclosure, 5 year battery life and optional transmitter output (Note: 4-20mA models are loop powered 9-36VDC).
High Accuracy 1,000Ω RTD (Class A)
Water Resistant IP67/NEMA 4X
5 Year Battery Life (4-20mA Models are Loop Powered)
4-20 mA Output Available (Loop Powered 9-36VDC)
Low or High Temperature Range Models
Remote Digital Thermometer
The Reotemp Remote Digital Thermometer/Transmitter is a durable high accuracy thermometer with digital display. It features an IP67/NEMA 4X enclosure, 5 year battery life and optional transmitter output (Note: 4-20mA models are loop powered 9-36VDC). The remote model is well suited for mounting the display away from a high temperature or hard to reach process. The remote digital is an excellent alternative to gas/vapor thermometer offering greater accuracy and lengths.
High Accuracy 1,000Ω RTD (Class A)
Water Resistant IP67/NEMA 4X
5 Year Battery Life (4-20mA Models are Loop Powered)
4-20 mA Output Available (Loop Powered 9-36VDC)
Low or High Temperature Range Models

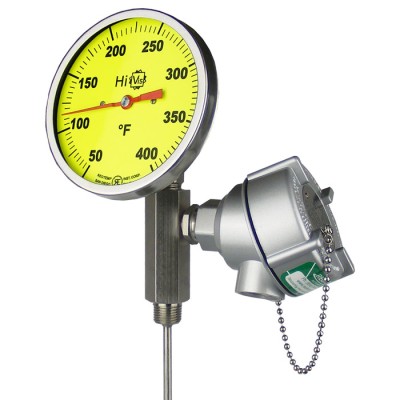

Dual Mode Thermometer
REOTEMP’s Dual Mode Thermometer (DMT) is a convenient, multi-purpose indicator for local and remote temperature monitoring. This rugged dual-sensor system puts TWO independent sensors in ONE THERMOWELL, and allows easy tie-in to process controls. Both sensors are NIST traceable. Special sensor encapsulation and optional liquid filling make the DMT the most rugged, durable instrument of its kind.
Allows independent local and remote reading (Up to 1000°F) from one thermowell
Redundant sensors for simple, effective calibration or spot checking without removing instrument from thermowell
Easily installed in any standard thermowell
Interchangeable with existing thermometer, RTD, or Thermocouple
INOR C530X
Universal HART-compatible 2-wire transmitter with wireless communication
IPAQ C530 is a modern, HART® temperature transmitter developed to meet the highest standards of accuracy and reliability. A universal transmitter compatible with RTD, thermocouples, voltage and potentiometer sensors, offering high flexibility and reduces the number of installed product variants.
It is fully compatible with HART® 7 and offers extended diagnostic information (for example device error, sensor and wiring conditions) making it reliable and highly precise.
IPAQ C530 supports communication via NFC® (Near-field communication) and Bluetooth® which makes it possible to configure and monitor the transmitter remotely.
INOR LCD-H300 AL
Loop Powered LCD Indicator with backlight for field mounting LCD-H300 is a digital loop powered LCD indicator in a robust aluminum field housing designed for tough environments. The field indicator is installed directly in a 4-20 mA loop without need for external power supply. The indicator is equipped with high-contrast, easy-to-read 4-digit LCD display with backlight. The scale is easily programmed with push buttons or with a smartphone via NFC and the app INOR Connect.
INOR LCD-H300 SS
Loop Powered LCD Indicator with backlight for field mounting LCD-H300 is a digital loop powered LCD indicator in a robust stainless steel field housing designed for tough environments. The field indicator is installed directly in a 4-20 mA loop without need for external power supply. The indicator is equipped with high-contrast, easy-to-read 4-digit LCD display with backlight. The scale is easily programmed with push buttons or with a smartphone via NFC and the app INOR Connect.
