Valves

Elite Floating Ball Valves
Elite Trunnion Ball Valves

Elite Multi-Port Ball Valves

Brand: Elite Valve

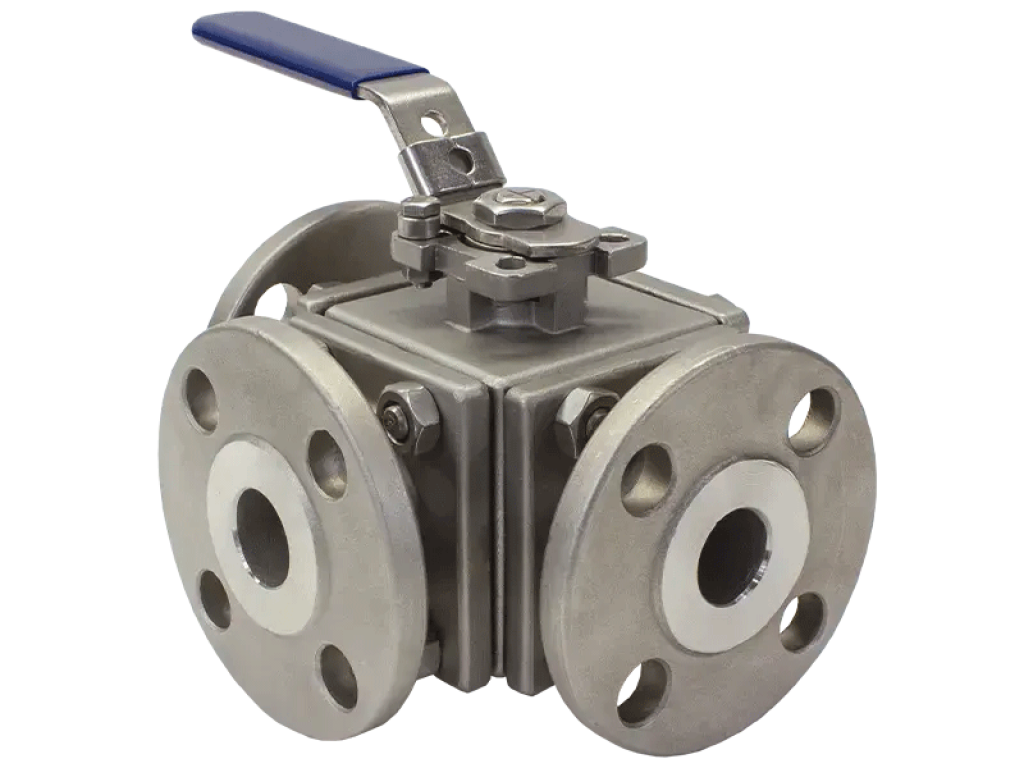

The ZF1L/T is a multi-port flanged Class 150 ball valve available with L or T port configuration to suit industrial applications in the oil & gas, petrochemical, pulp & paper, and mining industries. CF8M body, 316SS ball RTFE seats ASME Class 150 1/2” to 8″
- +
Download Data Sheet
Sizes Available 1/2" to 8" Pressure Rating ASME Class 150 Temperature Rating-20 to 450°F (-29 to 232°C) Design & Construction • 316SS (CF8M) body • 316SS ball and stem • RTFE seat • PTFE packing • Flanges per ANSI B16.5 • Anti-static device • Blow-out proof stem • ISO 5211 direct mount • Full port Standards & Approvals CRN
