Valves

Bray Trunnion Mounted
Elite Floating Ball Valves

Elite 3-Piece Ball Valves

Brand: Elite Valve

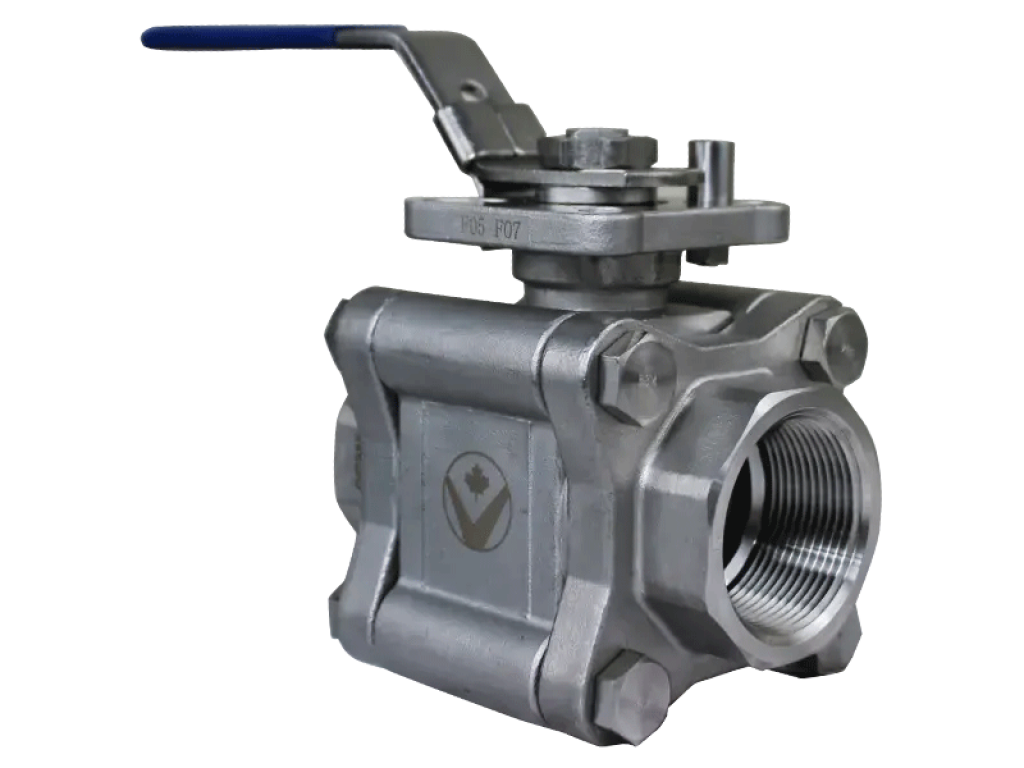

The B35 is a full port, fire safe, 3-piece ball valve with various seat options for demanding industrial applications in the oil & gas, petrochemical, pulp & paper, and mining industries. Fire Safe API 607 WCB or CF8M body, 316SS ball RTFE seats Up to 3000 WOG pressure rating 1/4” to 4″
- +
Download Data Sheet
Sizes Available 1/4" to 4" Pressure Rating • 3000 WOG (1/4" to 1") • 2000 WOG (1-1/4" to 2") • 1500 WOG (2-1/2") • 1000 WOG (3" to 4") Temperature Rating • WCB body: -20 to 400°F (-29 to 204°C) • CF8M body: -50 to 400°F (-46 to 204°C) Design & Construction • CF8M or WCB body • 316SS ball and stem (Optional: TFM-1600 or PEEK®) • RTFE seats • Graphite packing and stem seals • Viton® GFLT O-ring seals • Threaded (NPT), or socket weld connection • Anti-static device • Blow-out proof stem • Full port Standards & Approvals Sulphide Stress: NACE MR0175 Fire Testing: API 607 Design: API 608 Testing: API 598 Mounting: ISO 5211 Quality: ISO 9001:2015 Registration: CRN
