Valves

Mosite C10N
Mosite A20N

Mosite A20

Brand: Media Valve

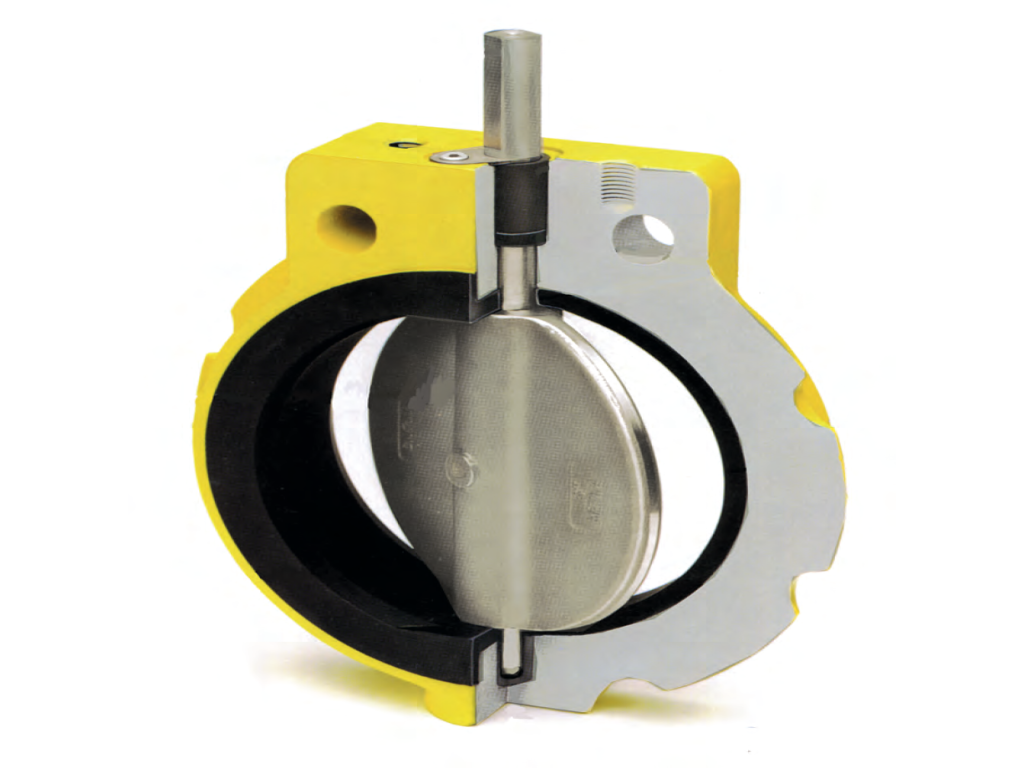

The Mosites A20 Butterfly Valve was developed in response to market demand for a high cycle butterfly valve. Reduced torque and low profile disc increases the A20 cycle capabilities and economizes actuation cost. Uniquely suited for applications involving continuous cycling, the Mosites A20 Butterfly Valve provides reliable service in flow control applications.
- +
Download Data Sheet
MOSITES A20 VALVE 2” - 12” 275 PSI SERVICE The quarter turn operation of the disc is easily accomplished by the handlever (with friction lock positioner) or weatherproof gear operator. For pneumatic or electric actuation packages, see page 11. The Mosites Butterfly Valve meets ANSI B16.104, Class VI, bi-directional shut-off specifications, and is for use with ANSI B 16.5 (2”-12”) dimensional 150# flanges. The valve can also be used for full vacuum and dead end service
