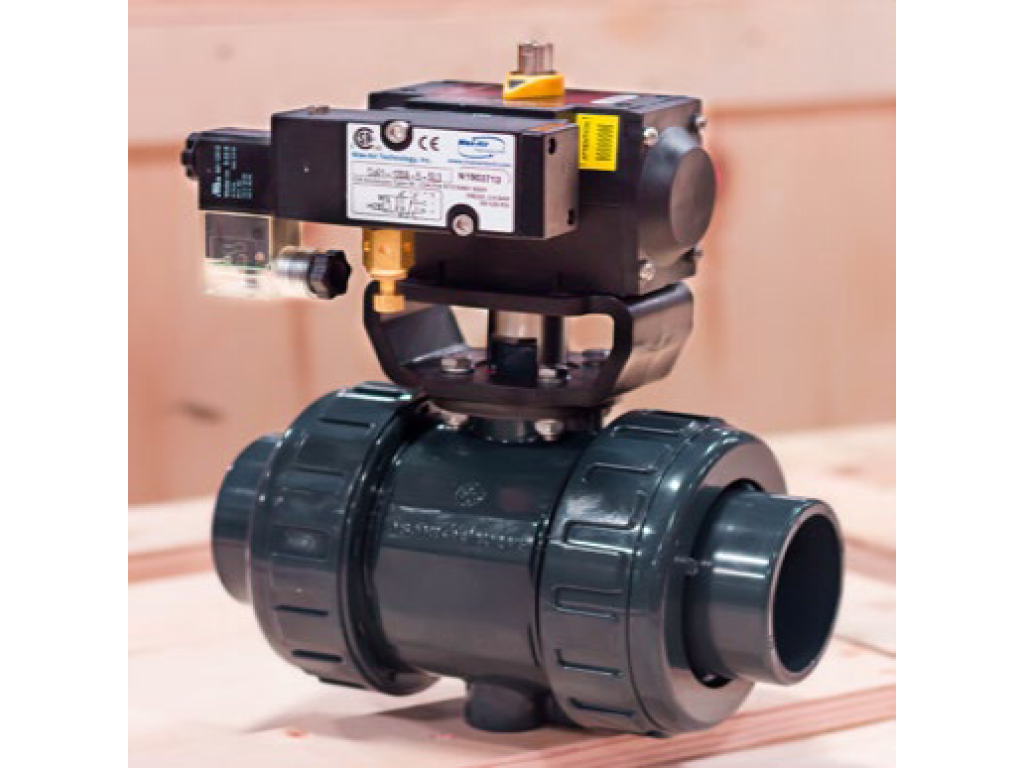

Actuators
UT Technopolymer
Brand:
Max-Air Technologies

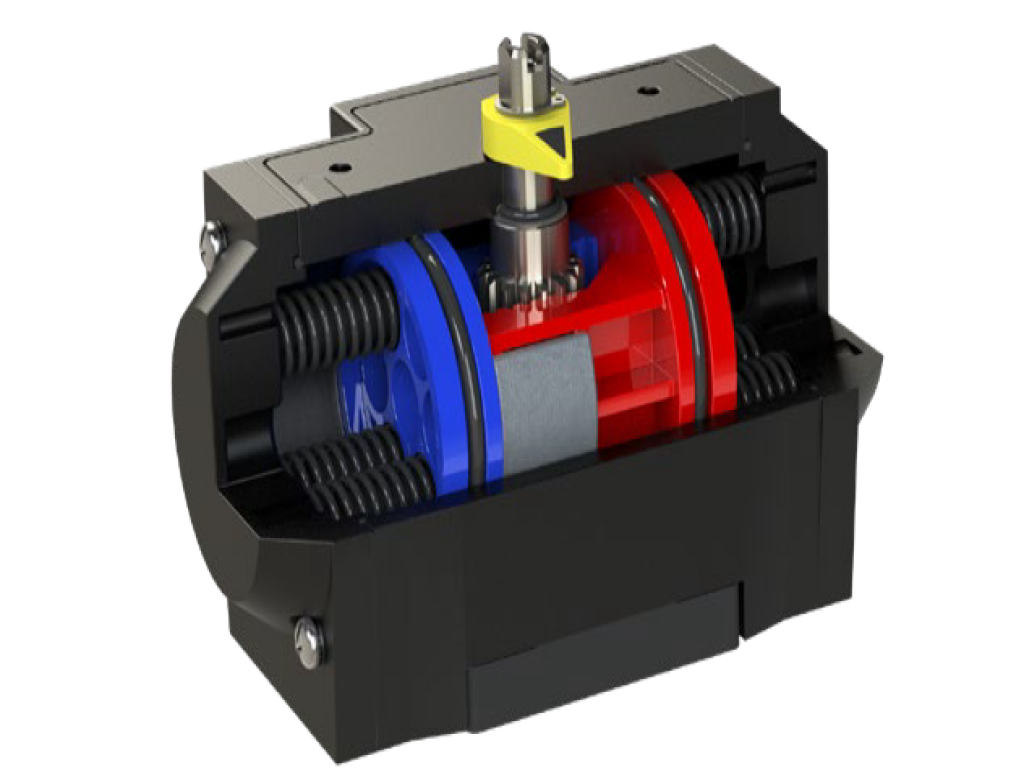

- Compact Rack and Pinion Design
- Direct ISO 5211 Standard Valve Mounting
- Interchangeable Mounting Flange
- Skates and Bearings Isolate for High Cycle Wear Resistance
- Anti-Blowout Bi-Directional Pinion Retention
- Rugged Tooth Rack and Pinion Design
- Pre-Loaded Spring Cartridges for Easy Changeout
- Low Profile Indicator
- Torque Range Up to 500 in-lbs (DA) & 230 in-lbs (SR)
- Materials Technopolymer
- Ambient Temp. -4°F to 176°F
- Standard Rotation 90° Spring Return or Double Acting
- Operation Media Gas or Low Pressure Hydraulic Fluid
- Mounting ISO 5211, NAMUR VDI/VDE 3845
UT Technopolymer Series Technical Datasheet
