Products
Max-Air Technologies
- Pnuematic Actuation
- Electric Actuation
- Delta T Butterfly Valves
- Sesto Ball Valves

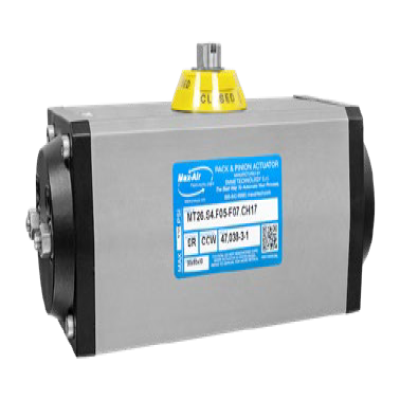

MT Series Aluminum Rack & Pinion Actuator
- Two ISO bolt circle patterns drilled directly in the body
- NAMUR standard mounting for accessories
- Our patented ±10° adjustment for the open/closed positions
- All backed by the best unlimited cycle life warranty
- Proprietary LockMesh® Coating
- LockMesh® provides the chemical resistance of PTFE along with the durability of a stainless steel base layer

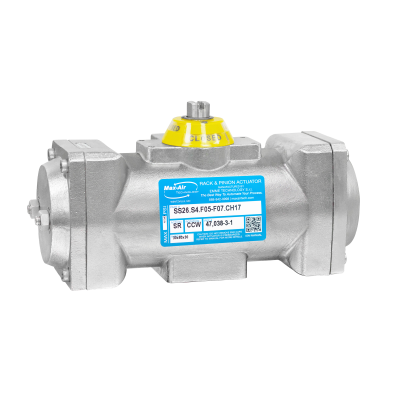

SS Series Stainless Rack & Pinion
- Compact Rack and Pinion Design
- 3D Models Available for All Sizes
- Direct ISO 5211 Standard Valve Mounting
- Direct NAMUR Accessory Mounting
- Anti-Blowout Bi-Directional Pinion Retention
- High Visibility Open/Closed Beacon
- Pre-Loaded Spring Cartridges
- Double-Acting (Air-to-Air) Operation
- Spring-Return (Air-to-Spring), Fail-Close or Fail-Open
- Standard (CCW open) or Reverse (CW open) Rotation
- Patented Dual Travel Stop Design ±10° Adjustment
- Designed for High Cycles 1,000,000+
- Unlimited Cycle Life Warranty
UT 180 Series Aluminum Actuator
- Compact Rack and Pinion Design
- 3D Models Available for All Designs and Sizes
- Direct ISO 5211 Standard Valve Mounting
- Direct NAMUR Accessory Mounting
- Anti-Blowout Bi-Directional Pinion Retention
- Configurable Beacon
- Pre-Loaded Spring Cartridges
UT Technopolymer
- Compact Rack and Pinion Design
- Direct ISO 5211 Standard Valve Mounting
- Interchangeable Mounting Flange
- Skates and Bearings Isolate for High Cycle Wear Resistance
- Anti-Blowout Bi-Directional Pinion Retention
- Rugged Tooth Rack and Pinion Design
- Pre-Loaded Spring Cartridges for Easy Changeout
- Low Profile Indicator
HD Pnuematic
- Symmetric and Canted Yoke options
- Slide Block Technology extends service life
- Hard chrome plated wear surfaces
- Three layer epoxy coating for general corrosion resistance
- Modular design w/ self-contained spring modules
- Optional Heavy Duty Polyamide Epoxy coating
HHD Hydraulic
- Symmetric and Canted Yoke options
- Slide Block Technology extends service life
- Hard chrome plated wear surfaces
- Three layer epoxy coating for general corrosion resistance
- Modular design w/ self-contained spring modules
- Optional Heavy Duty Polyamide Epoxy coating
SV Series NAMUR
- Aluminum 3/4-way direct NAMUR mount body
- 2 position
- 1/4" NPT Ports
- normal closed or fail-in-place
- for ordinary or hazardous locations
NV Series Inline
- Aluminum 3 or 4-way body
- 1/4" NPT ports
- 2 position
- Normal closed
- For ordinary or hazardous locations.
SSV Series NAMUR
Stainless steel 3/4-way direct mount
body, 2 position normal closed, for
ordinary or hazardous locations.
S3 Series NAMUR
Aluminum 3/4-way direct mount body,
3 position center return, for ordinary or
hazardous locations.

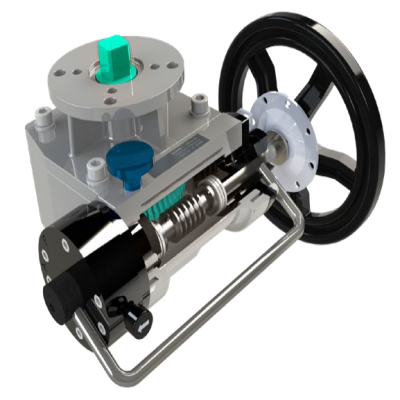

GOW Series
Max-Air offers a declutchable override gear with triple epoxy coated IP67 housing mounts between ISO 5211 valve and actuator interfaces. It features an easy declutch mechanism, integrated block and bleed capability and lockout/tagout holes. GOW Series comes standard with a female double square output drive, which directly couples to square valve stems, or quickly adapt to smaller square drives, or double-D and keyed drives with the use of adapter bushings.

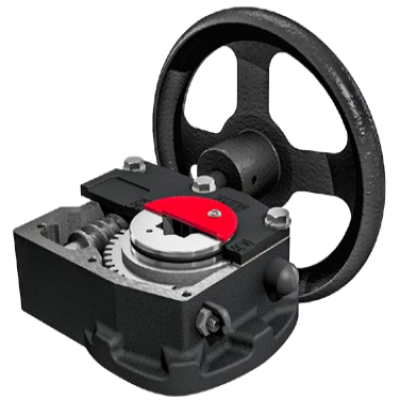

GO Series
Direct ISO 5211 valve mounting for easy and compact handwheel operation. The GO Series comes standard with a female double square output drive, which directly couples to square valve stems, or quickly adapt to smaller square drives, or double-D and keyed drives with the use of adapter bushings.
MA intelligent
Open/Close/Jog & Modulating, Intelligent MA Series industrial electric actuators are offered in 4 frame sizes and 8 different torque ratings providing 133 in-lbs thru 1,770 in-lbs. These units utilize an “Advanced Interface” for operation and configuration with all set-up and monitoring done through a set of push buttons and illustrated on an OLED screen. All units come standard with 3 meter cable integrated into an industrial powder coated heavy duty, IP67 aluminum enclosure, ISO mounting and female drive output. MA Series actuators are available in 24 VAC/VDC or 90 to 265 VAC.
ME Industrial
Open/Close/Jog/Modulating, Heavy Duty
ME Series industrial electric actuators are offered in 8 frame sizes and 15 different torque ratings providing 310 in-lbs thru 40,000 in-lbs. All units come standard with an industrial powder coated heavy duty, NEMA 4/4X/IP67 aluminum enclosure, ISO mounting and female drive output. ME Series actuators are available in 12 VAC/VDC, 24 VAC/VDC, 120VAC, or 230 VAC models; these are also offered in complete 3 phase configurations with and without motor control centers.
MX Exp
Open/Close/Jog/Modulating, Heavy Duty
MX Series Hazardous Location industrial electric actuators are offered in 6 frame sizes and 10 different torque ratings providing 310 in-lbs thru 13280 in-lbs. All units comply to CSA Class 1, Division 1, Groups C, D T4 temperature standards as well as Class 2 Division 1Groups E, F, G with T130 degree temperature standards. The units are also fully ATEX rated for Class 1, Zone 1 Ex dbIIB T4 Gb (Canada) and Class 1, Zone 1 AEx db IIB T4 Gb (for US); Ex tb IIIC T130C Db(for Canada).
