Flow Measurement

Brand: Krohne

For gases and liquids up to 4,600 t/h; maintains operation over a wide range of gas fractions and complex flow conditions (EGMTM)
CT: OIML R117, MI-005, MI-002; API and AGA compliant
Flange: DN100…400 / 4…16", max. PN160 / ASME Cl 1500
3 x 4…20 mA, HART®7, Modbus, FF, Profibus-PA/DP, PROFINET, EtherNet/IP™, Bluetooth®

Qty: - +

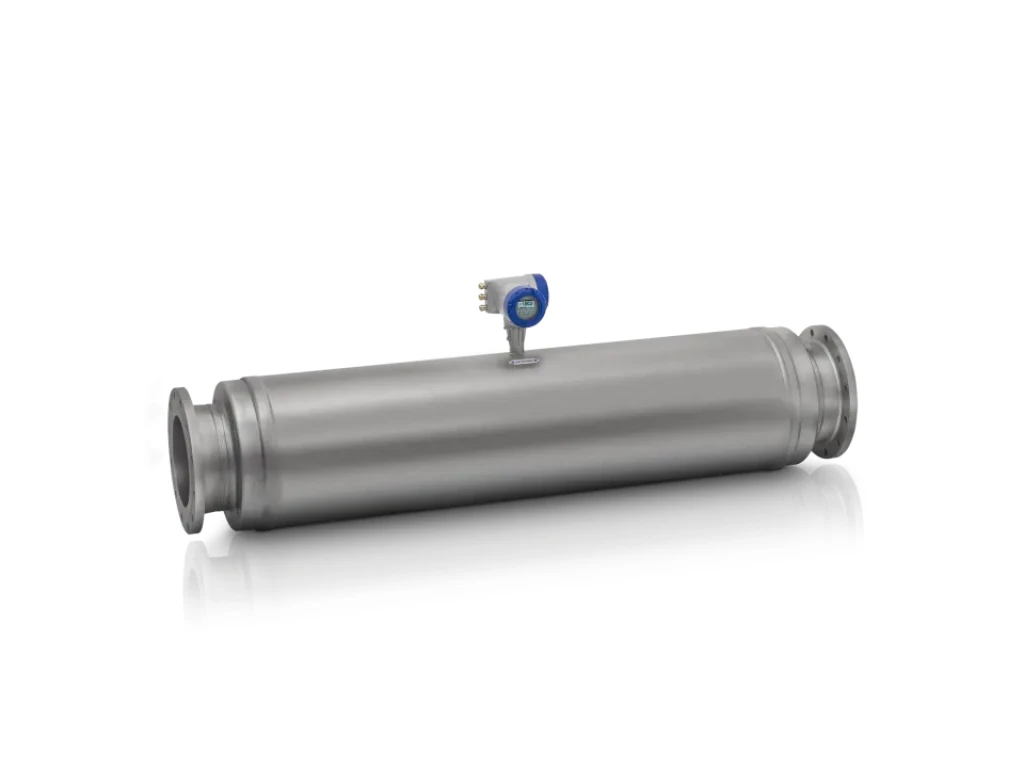

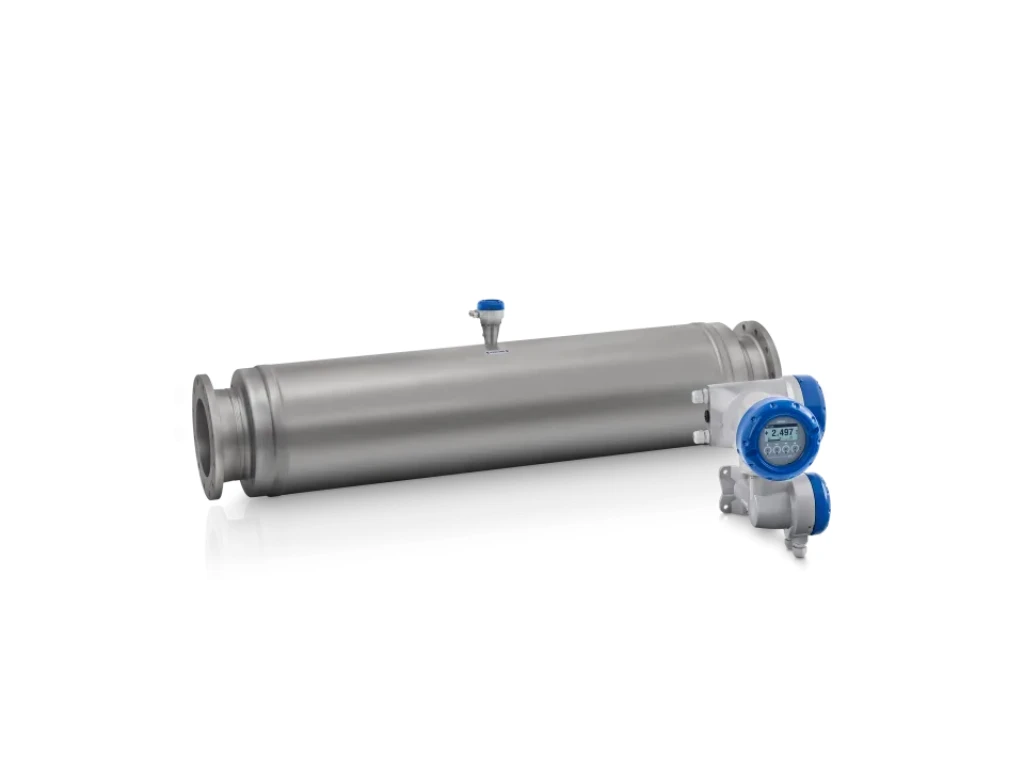

Twin or four straight tube design
Entrained Gas Management (EGM^TM): maintains operation with air or gas entrainments in the medium
Available with Ethernet-APL for hazardous areas
Device commissioning, verification, diagnostics and monitoring via a secure wireless Bluetooth^® connection (<20 m / 65.6 ft)
Fast and completely digital signal processing
High accuracy mass, density and volume flow measurement (±0.1% of MV / optional ±0.05% of MV)
Features the highest OIML accuracy class of 0.3 for custody transfer (CT)
Extensive sensor and process diagnostics (incl. NE 107)
With integral pressure compensation for flow and density measurement
Integrated temperature measurement
Optimised flow splitter for low pressure loss
Duplex steel or Super Duplex steel sensor material
Optional PED approved secondary pressure containment up to 150 barg / 2175 psig
Optional heat tracing (insulation, heating jacket) or purge ports
No crosstalk: resistant to installation and process effects
On-site verification of flowmeter with OPTICHECK service tool
