Flow Measurement

Brand: Krohne

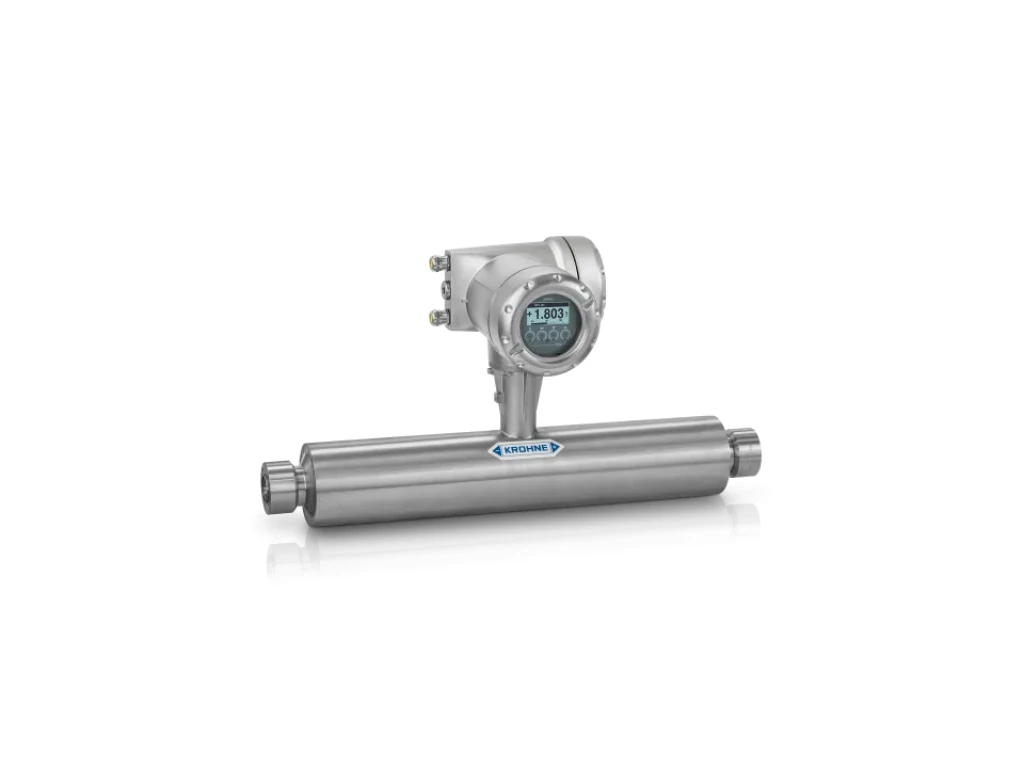

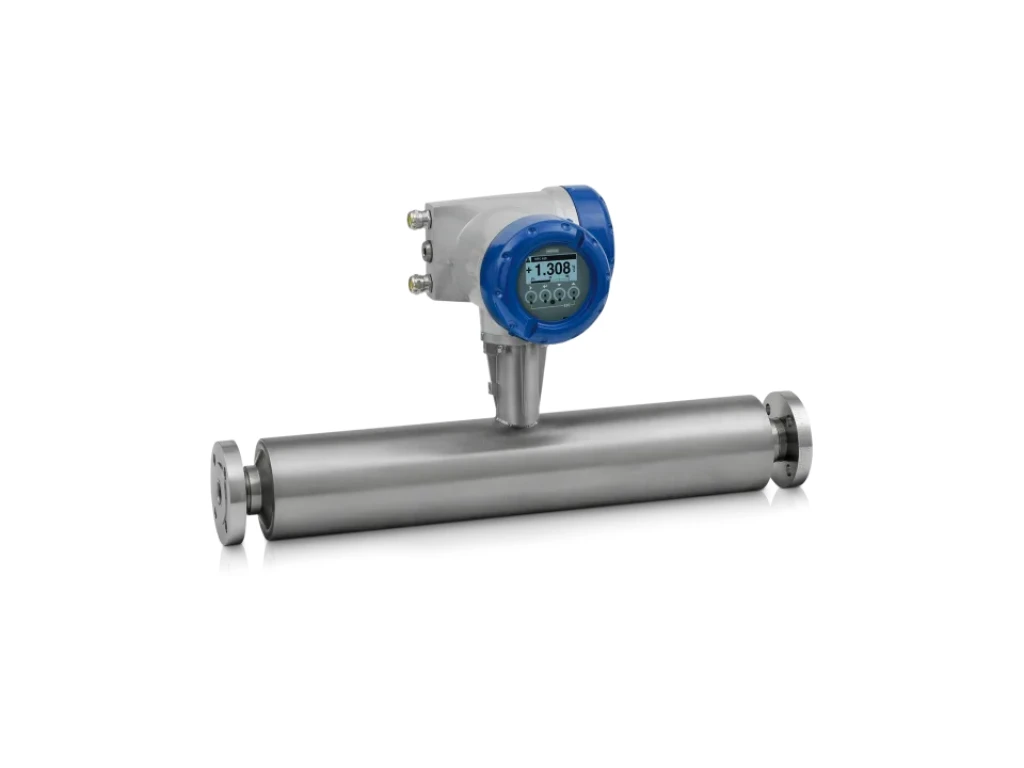

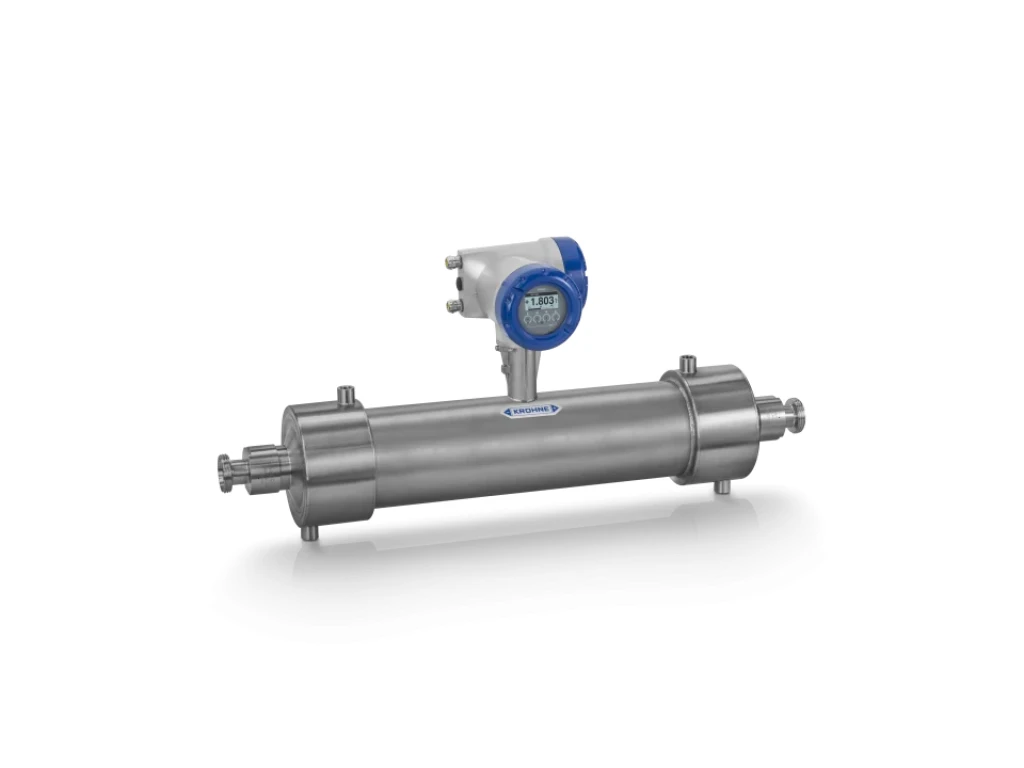

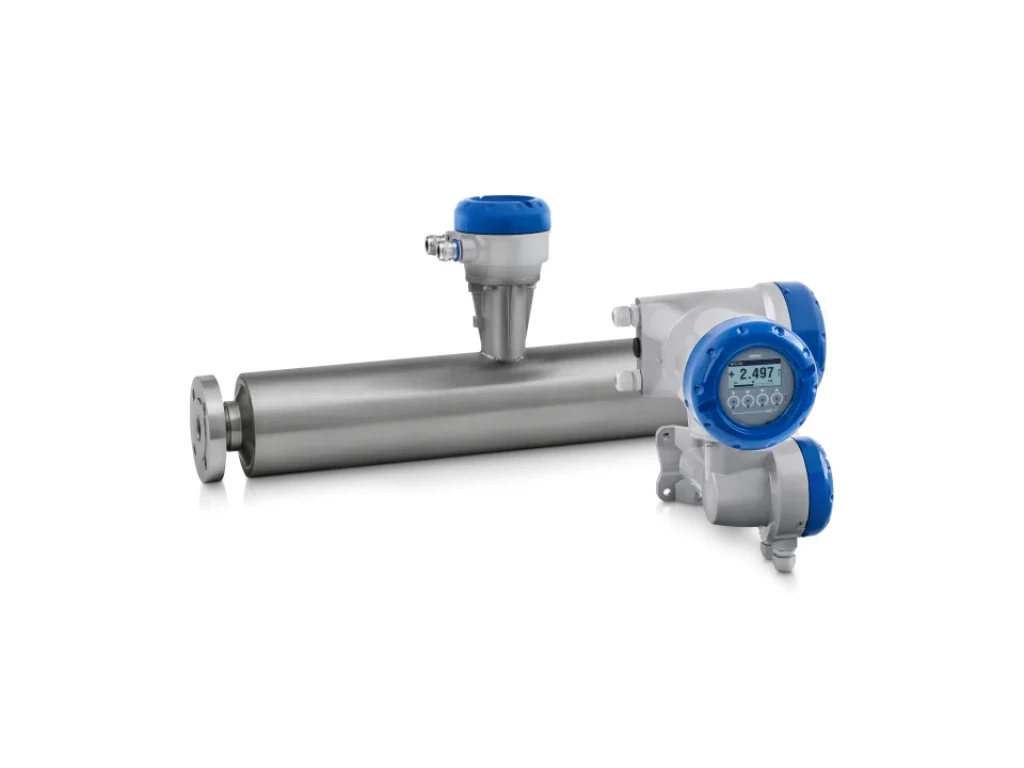

Coriolis mass flowmeter for advanced process applications High accuracy (±0.1%), for viscous, aggressive or shear-sensitive media; maintains operation over a wide range of gas fractions and complex flow conditions (EGMTM) CT: OIML R117, MI-005; API; hygienic certifications Flange: DN10…100 / ½…4", max. PN100 / ASME Cl 600; others 3 x 4…20 mA, HART®7, Modbus, FF, Profibus-PA/DP, PROFINET, EtherNet/IP™, Bluetooth®

Qty: - +

Download Data Sheet

Single straight tube design Entrained Gas Management (EGMTM): maintains operation with air or gas entrainments in the medium Available with Ethernet-APL for hazardous areas Device commissioning, verification, diagnostics and monitoring via a secure wireless Bluetooth® connection (<20 m / 65.6 ft) Fast and completely digital signal processing High accuracy mass, density and volume flow measurement (±0.1% of MV) Highest OIML accuracy class of 0.3 for custody transfer (CT) Extensive sensor and process diagnostics (incl. NE 107) Integrated temperature measurement Available in four sensor materials: titanium, stainless steel, Hastelloy® or tantalum With sensor size DN80 / 3" in titanium or Hastelloy® it is the largest single straight tube meter on the market Optional PED approved secondary pressure containment up to 100 barg / 1450 psig Many options (heat tracing, purge port etc.) No crosstalk: resistant to installation and process effects Various approvals and certifications (hygienic, custody transfer, marine, hazardous areas etc.) On-site verification of flowmeter with OPTICHECK service tool
