Flow Measurement

Brand: Krohne

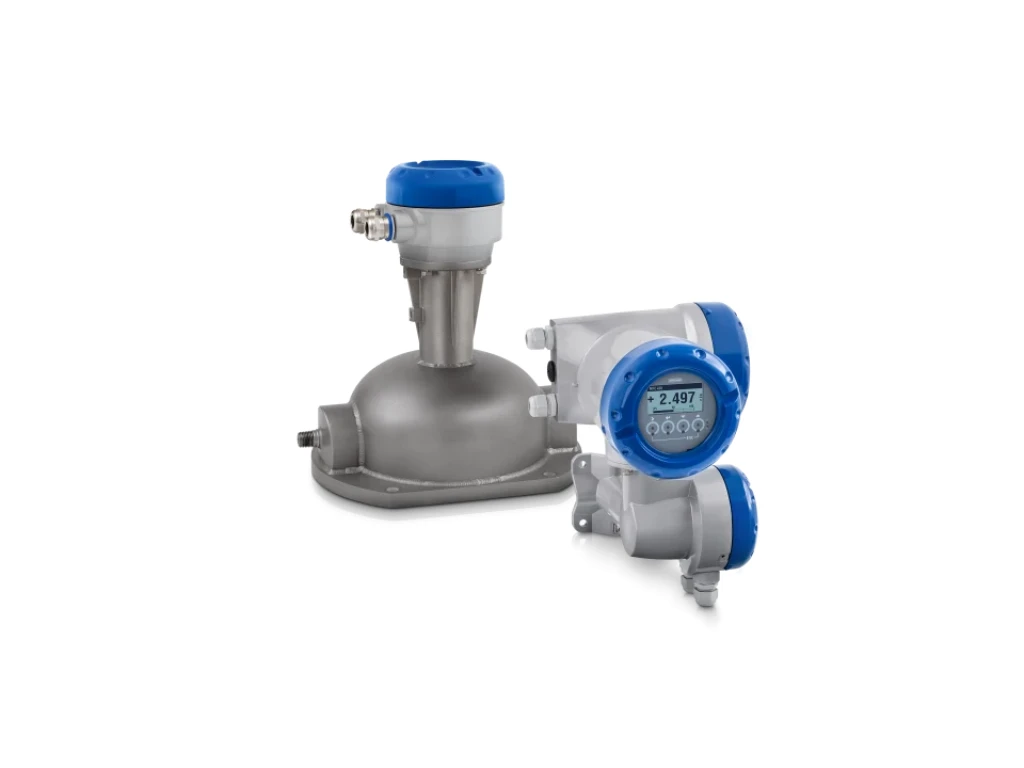

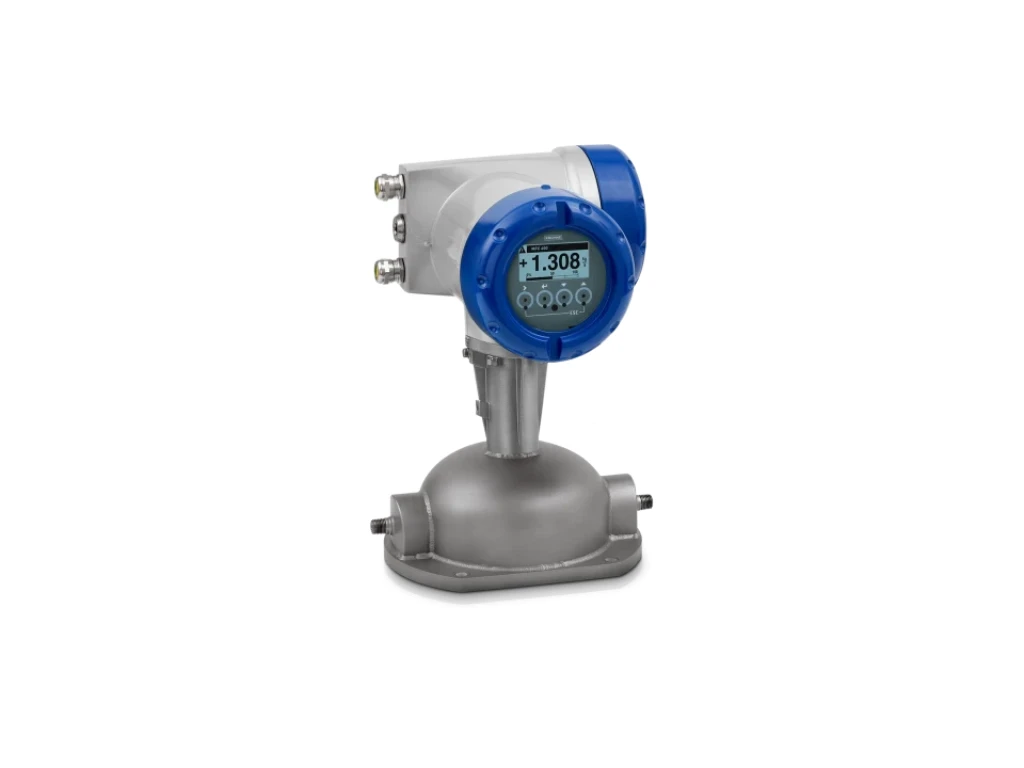

Coriolis mass flowmeter for low flow and dosing applications Coriolis mass flowmeter for low flow and dosing applications High accuracy (±0.1%) for gases and liquids >0.3 kg/h / 0.01 lb/min; maintains operation over a wide range of gas fractions and complex flow conditions (EGMTM) Standard pressure rating up to 300 bar / 4351 psi Flange: DN15 / ½"; also thread and clamp connections 3 x 4…20 mA, HART®7, Modbus, FF, Profibus-PA/DP, PROFINET, EtherNet/IP™, Bluetooth®

Qty: - +

Download Data Sheet

Single Z-tube design Entrained Gas Management (EGMTM): maintains operation with air or gas entrainments in the medium Available with Ethernet-APL for hazardous areas Device commissioning, verification, diagnostics and monitoring via a secure wireless Bluetooth® connection (<20 m / 65.6 ft) Fast and completely digital signal processing High accuracy: ±0.1% of MV for liquids / ±0.5% of MV for gases Extensive sensor and process diagnostics (incl. NE 107) Integrated temperature measurement 3 sizes in a single footprint Optional PED approved secondary pressure containment up to 30 barg / 435 psig Many options (heat tracing, purge port etc.) Easily drained and easy to clean No crosstalk: resistant to installation and process effects On-site verification of flowmeter with OPTICHECK service tool
