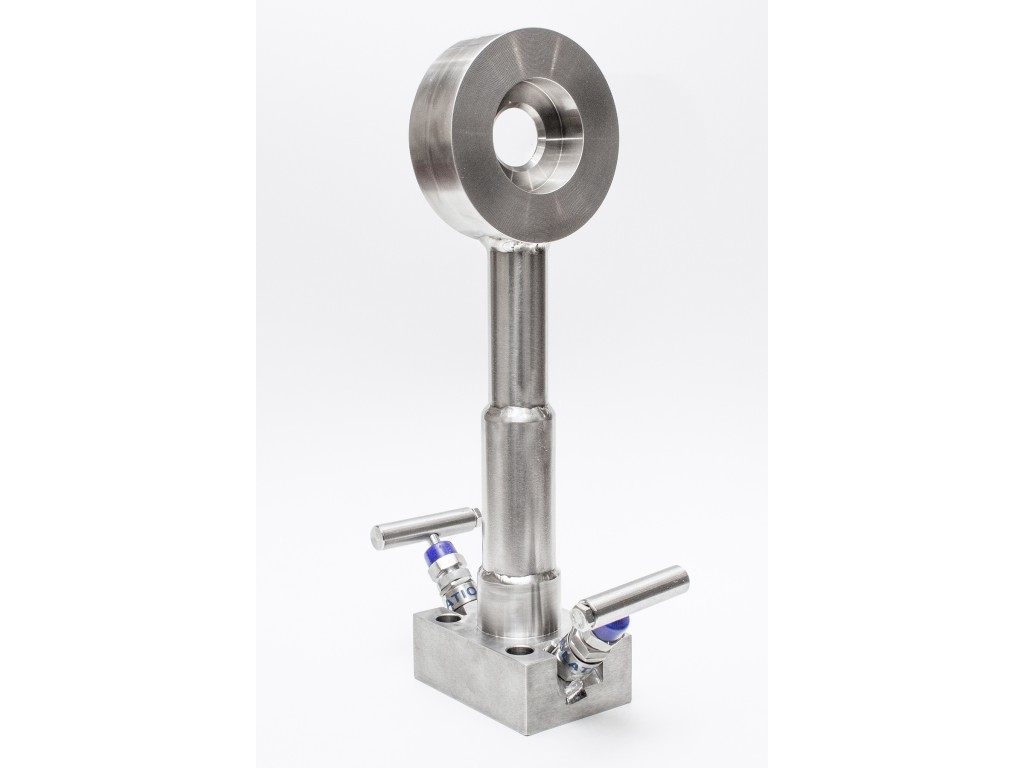

Mac-Weld Orifice Wafer Assembly

Brand: Mac-Weld
Compact design Manufactured to fit almost any flange material and design Can be installed between 150#-2500# flanges Fully leak-tested and configured Reduced installation costs Integral Isolation valves; 3 & 5 Valve H-Style manifolds can also be mounted directly to assembly
- +
Download Data Sheet
A new space saving design to make flow measurement easier. Mac-Weld’s orifice wafer assembly can be installed between 150#-2500# flanges. We can also manufacture these with an integral isolation valve. Our wafer assemblies combine the primary orifice plate element with the connection and manifold hardware. These units offer a space saving design, with the same quality and reliability Mac-Weld is known for in the industry. Improve accuracy and performance with our new orifice wafer assemblies.
