Standard sizes: 1/2” to 24” (also available in metric) Standard ratings from 150# to 2500# (also available in metric) Approved Canadian Registration Number (CRN) on most designs Orifice flange unions available upon request Available in various alloy materials including 316 Stainless Steel, Hastelloy®, Monel®, and other exotic alloys

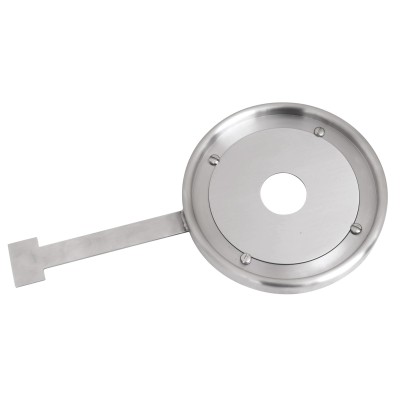

Custom designs available based on clients application requirements Available as single machined piece or two pieces; orifice plate and holder Recommended for high temperature and/or pressure applications Large selection of materials available NACE compliant

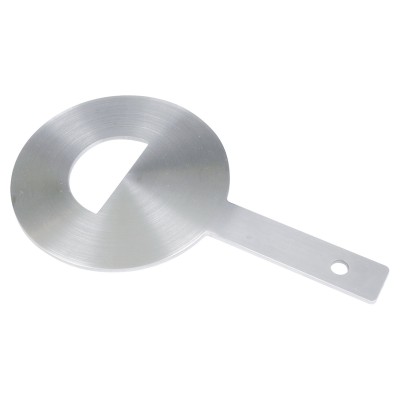

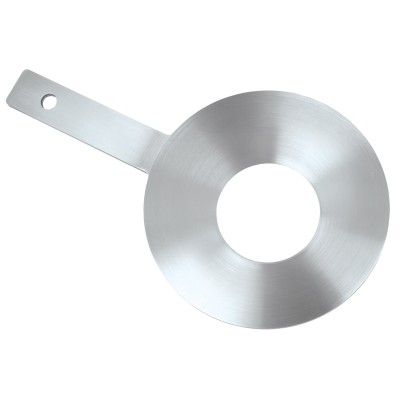

Custom bores and finishes available Custom engineered orifice plates Orifice plates available with a maximum line size of 48” 1/16” to 5” plate thickness available All Mac-Weld orifice plates are inspected and stamped before being released from production.

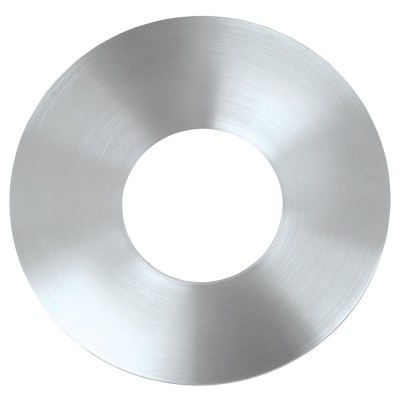

Orifice plates available with a maximum diameter of 48” All Mac-Weld orifice plates are inspected and stamped before being released from production. Custom designs available based on clients application requirements Large selection of materials available NACE compliant Material Options: 316 Stainless Steel, 304 Stainless Steel, Carbon Steel, 310 Stainless Steel, 321 Stainless Steel, 347 Stainless Steel, Alloy 20, C-276, Duplex, Incoloy 800, Monel 400, and Titanium (For a complete list, talk to a Mac-Weld sales representative today). Industries: Any industry that requires Flow measurement

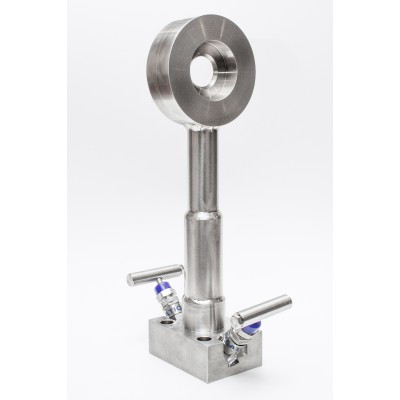

Compact design Manufactured to fit almost any flange material and design Can be installed between 150#-2500# flanges Fully leak-tested and configured Reduced installation costs Integral Isolation valves; 3 & 5 Valve H-Style manifolds can also be mounted directly to assembly

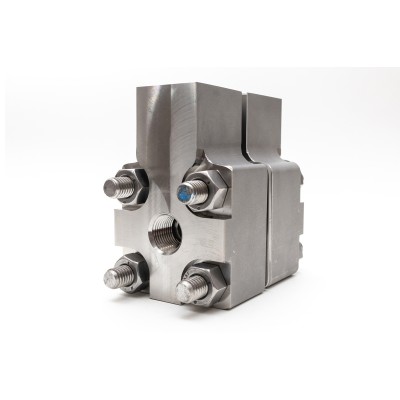

Supplied fully assembled and ready for installation Available with flanges, threads or weld bevel connections Designed for line sizes up to 12” Meter runs above 12” available upon request Suitable for steam, gas and liquid flow measurement Large selection of materials available NACE compliant CRN’s available upon request, see factory for details Dye Pen, X-Ray and Hydro testing available

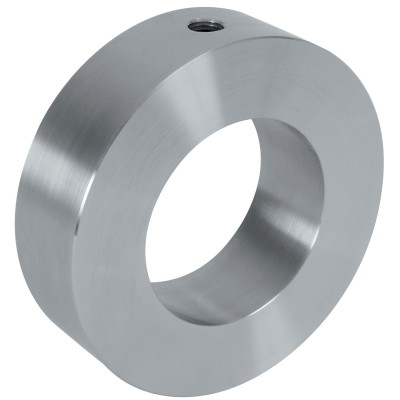

Manufactured 100% in house SW Eliminate threaded connections. Allows for on site calibration, venting, & purging. No break of the process flange CRN approved

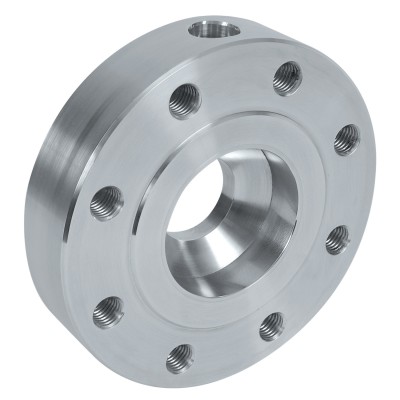

Allows for transmitter calibration, venting and purging The seal and process size transition design reduces installation and maintenance costs Our engineered and manufactured-in-house design can be adapted and modified for your specific application Eliminates the need for a reducing spool Valve options available upon request Manufactured in accordance with ASME, ASTM and ANSI standards Available in carbon steel and stainless steel. Also available in most alloy materials CRN approved

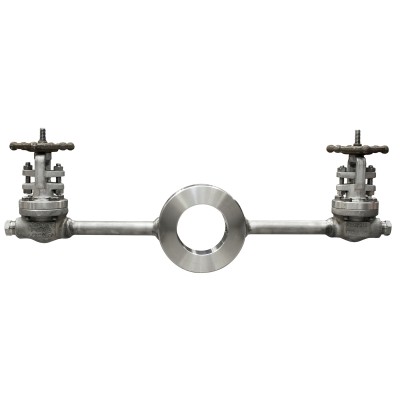

Allows for easier installation on-site Engineered and manufactured-in-house, designs can be adapted and modified for your specific application Various valve options available upon request Manufactured in accordance with ASME, ASTM and ANSI standards CRN approval available upon request

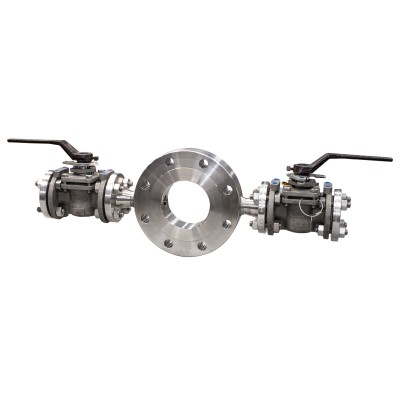

Eliminates the need for a reducing spool Valve options available upon request Available in carbon steel and stainless steel. Also available in most alloy materials. Manufactured in accordance with ASME, ASTM and ANSI standards CRN approved
