Flow Measurement

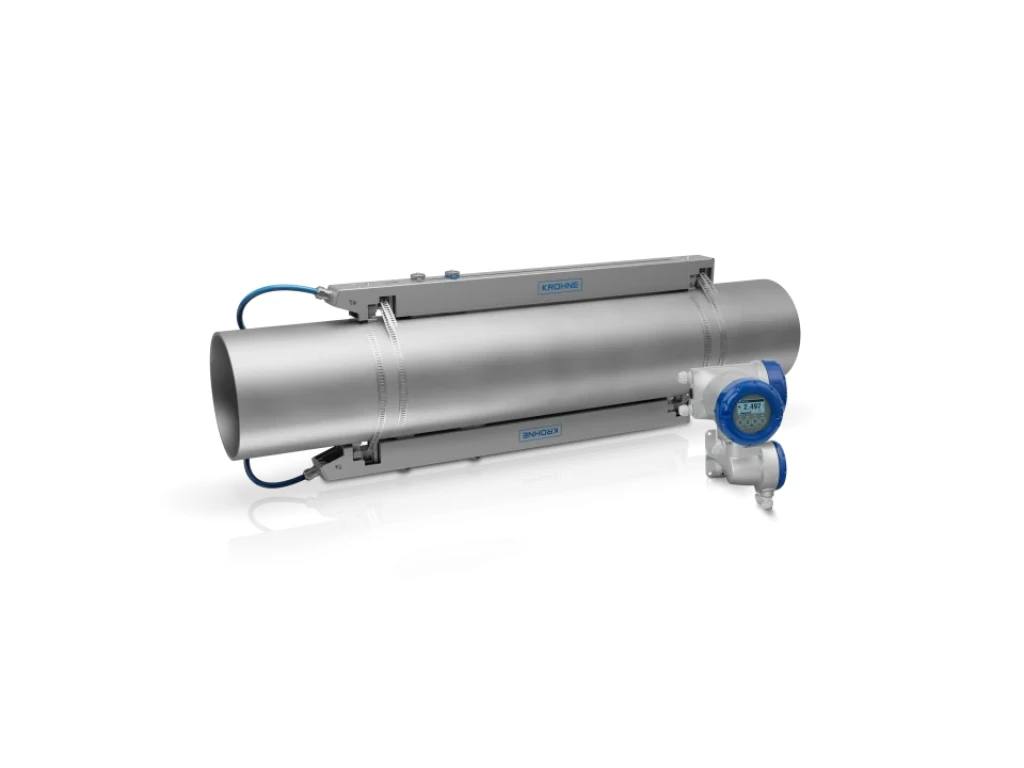

OPTISONIC 6300
Brand:
Krohne
Ultrasonic clamp-on flowmeter for flow measurement of liquids
- Stationary device, for installation at any location without process interruption or need to cut pipes
- Up to +200°C / +392°F
- Robust stainless steel sensor rail for pipes DN15…4000 / ½…160"
- 4…20 mA, HART®7, Modbus, FF, Profibus-PA/DP
- Robust industrial design to provide maximum reliability
- Easy and accurate sensor mounting using a stainless steel rail system
- Minimal maintenance using efficient re-greasing concept or solid coupling pads
- Optimal accuracy due to factory flow calibration
- X-mode dual path sensor for extra reliability
- Measurement range: 0.1...20 m/s (200:1)
- Integrated thermal energy calculation
- Extended temperature (XT) version available for all sensor rail sizes to measure liquids up to +200ºC / +392ºF
- IP68 / Nema 6P option
- Namur NE107 diagnostics
- With wall-mounted or field-mounted converter
OPTISONIC 6300 Technical Datasheet
