Flow Measurement
OPTISONIC 6300 P
Brand:
Krohne

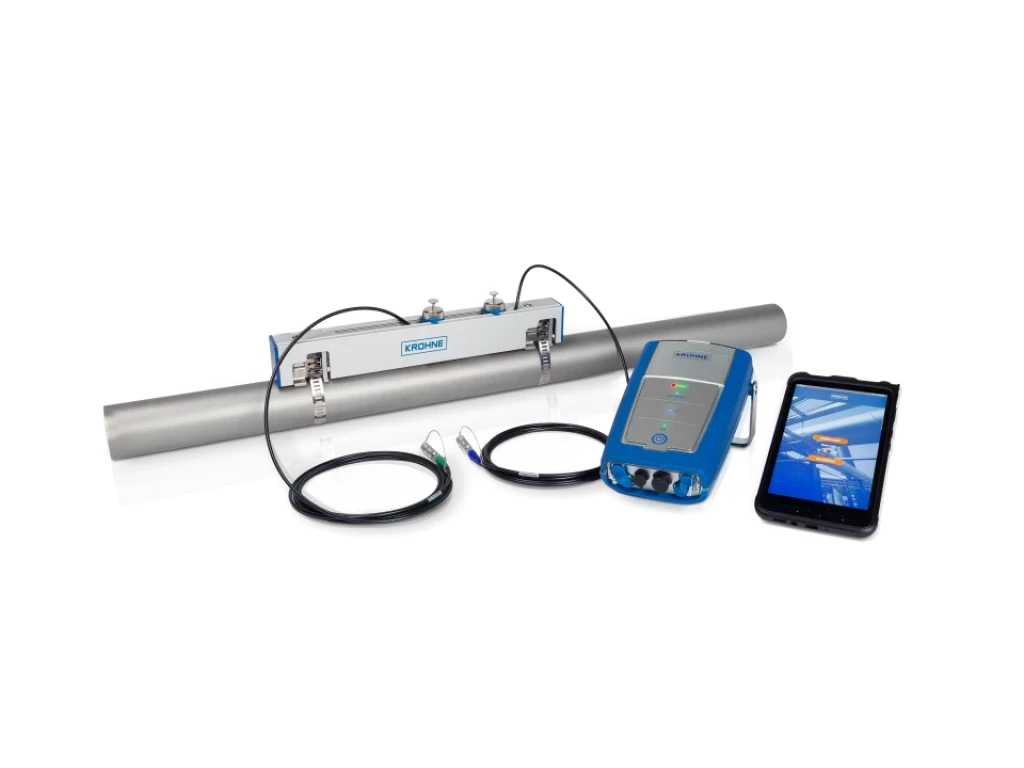

Ultrasonic clamp-on flowmeter for temporary flow measurement of liquids
- Portable, battery-powered meter used to collect additional flow data or for cost-effective on-site verification of inline flowmeters
- For pipes DN15…4000 / ½…160"; up to +120°C / +248°F
- Portable signal converter with integrated data logger
- Commissioning, monitoring and data analysis via a mobile smart device using the OPTISONIC 6300 P mobile app (for Android or iOS) in combination with a USB cable or wireless Bluetooth connection®
- Flexible clamp-on flow measurement with battery-powered signal converter and datalogger
- Bi-directional measurement where inline measurement is not possible or desirable
- Easy installation without process interruption: zero impact on/risk to the process and no cutting of pipes necessary
- Real-time measurement or data-logging
- 2-channel converter for dual path or dual pipe measurements
- User-friendly operation using a mobile smart device plus OPTISONIC 6300 P mobile app:
- Data transfer via secure wireless Bluetooth® or USB cable connection
- User-friendly, graphical installation wizard for immediate start-up
- Many options for collecting, monitoring, analysing and storing measurement data
- Free download for Android and iOS
- Easy and flexible sensor mounting using mounting rails
- Click and turn mechanism on fixing units for quick and easy installation or removal
- Energy measurement with PT100 and I/O box
- Useful accessories available from one source, e.g. factory configured tablet, cable extensions, magnetic fixation units, thickness gauge, etc.
- Delivered in hardcase (flight case) or portable soft case with organiser trays
*KROHNE & Accutrol offer a rental service for this instrument. Please check availability by contacting your local Accutrol representative.
