Flow Measurement

DK37 M8
DK46/47/48/800

DK32/34

Brand: Krohne

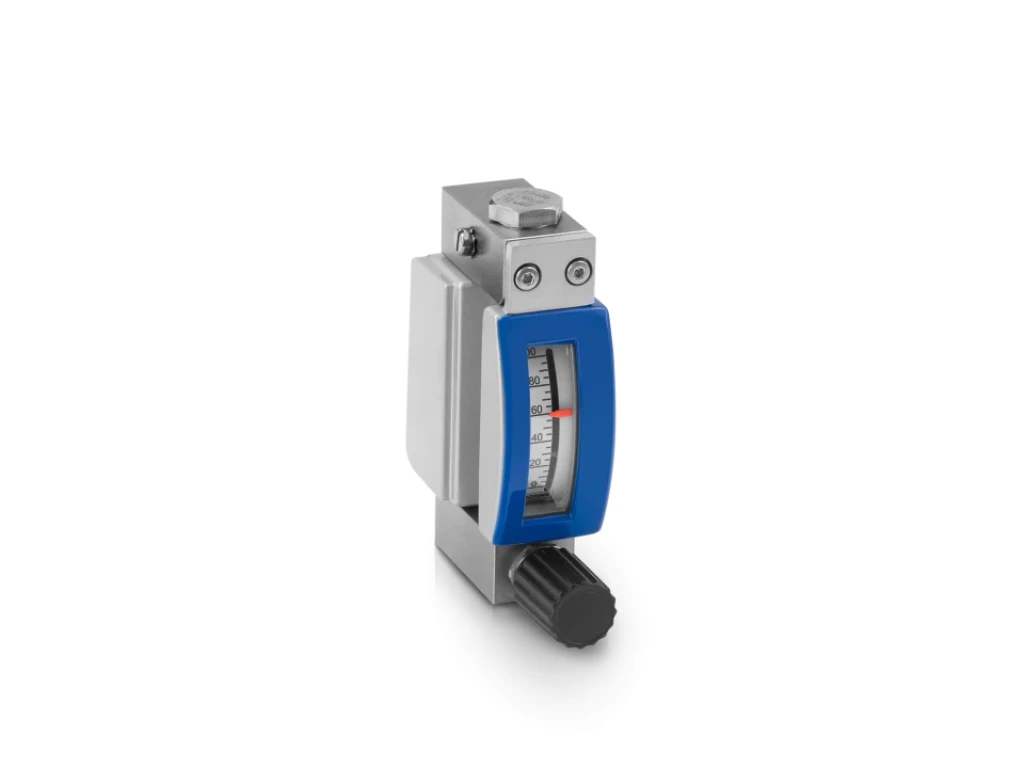

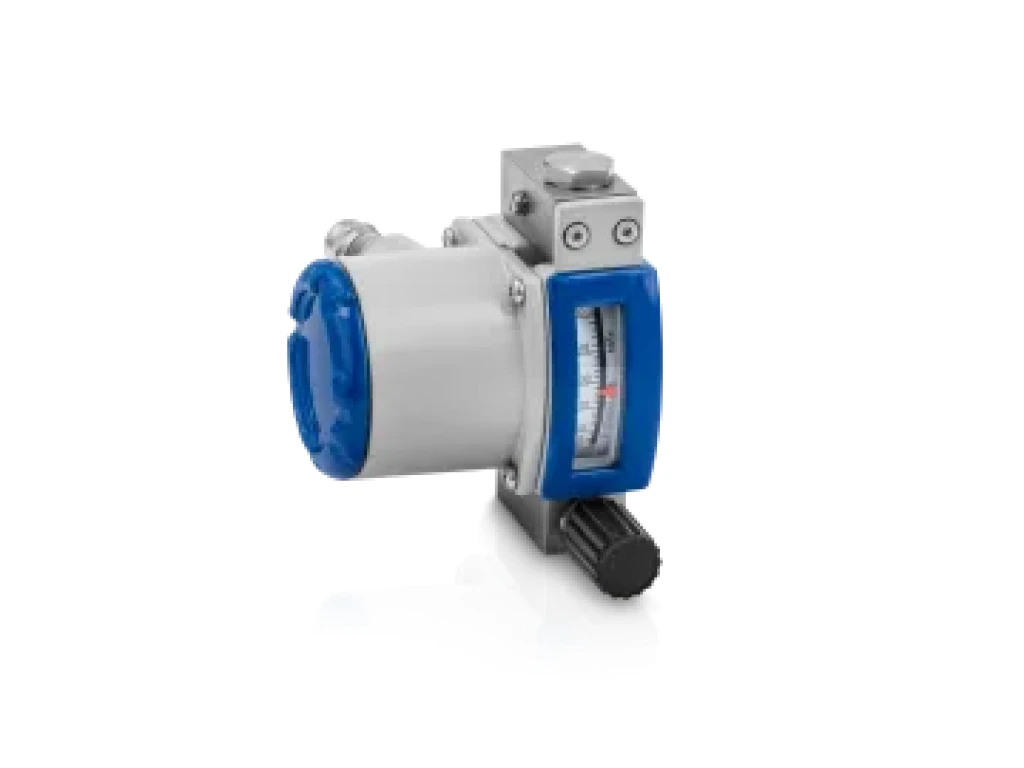

Variable area flowmeter for low liquid and gas flows Compact mechanical indicator, optional 4…20 mA/HART®7, MIN/MAX switches and needle valve Sturdy metal design: stainless steel or alloy Thread: G¼, ¼ NPT, etc. -40…+200°C / +392°F, max. 220 barg / 3190 psig
- +
Download Data Sheet
Simple, low-cost installation: Able to measure and display without auxiliary power supply Purgemeter with 2 optional limit switches for flow monitoring Various stainless steel and alloy sensor materials Optional surface passivation with SilcoNert®2000 for trace-level analysis Ingress protection IP65/66 Full scale value for liquids: 1.6…150 l/h / 0.4…40 GPH Full scale value for gases: 16…4,800 l/h / 0.6…170 SCFH Turndown ratio 10:1 Maximum measuring error: ±4% (acc. to VDI/VDE 3513-2) or ±3% of full scale Suitable for use in Safety Instrumented Systems with SIL 2, in redundant design (1oo2) also in SIL 3 applications (type A device) Approved for hazardous areas
