Flow Measurement

H250 M40
DK32/34

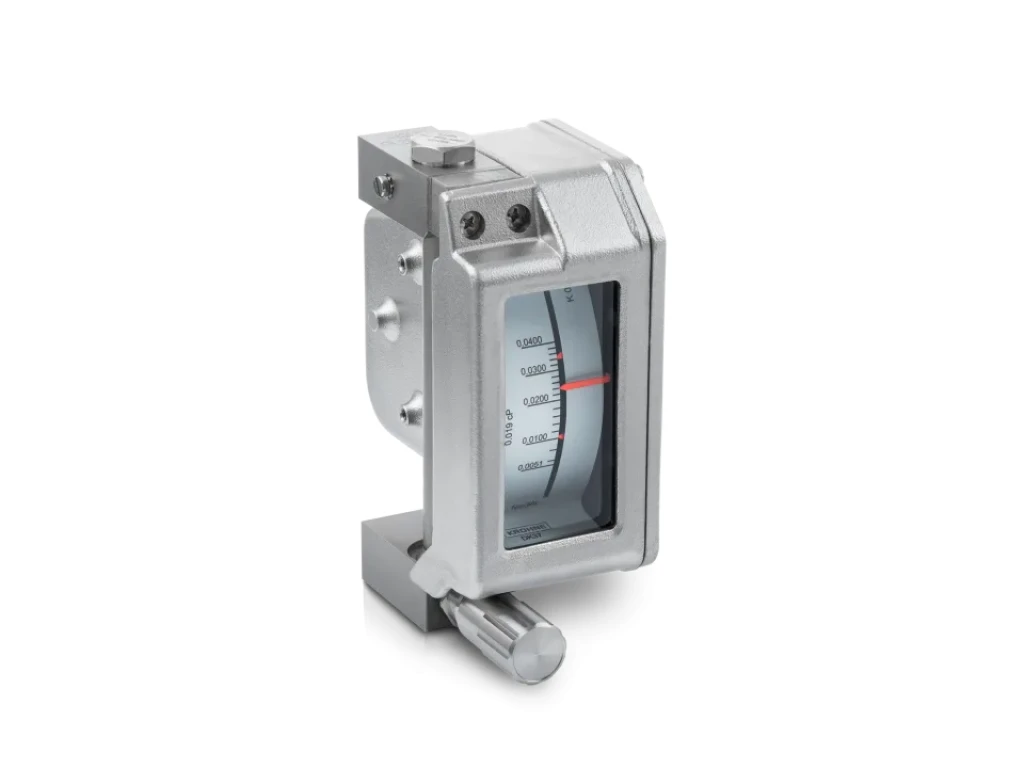

DK37 M8

Brand: Krohne
Variable area flowmeter for advanced low liquid and gas flows Mechanical or with electronic indicator (4…20 mA/HART®) Sturdy metal design: stainless steel or alloy Thread: G¼, ¼ NPT; others -40…+150°C / +302°F; max. 220 barg / 3190 psig
- +
Download Data Sheet
Simple, low-cost installation: Able to measure and display without auxiliary power supply Purgemeter with 2 optional limit switches or 4…20mA/HART® for flow monitoring Various stainless steel and alloy sensor materials Optional surface passivation with SilcoNert®2000 for trace-level analysis PPS housing as standard, stainless steel housing as option Ingress protection IP66/67 Full scale value for liquids: 1.6…250 l/h / 0.4…67 GPH Full scale value for gases: 16…8,000 l/h / 0.6…300 SCFH Turndown ratio 10:1 Maximum measuring error: ±2.5% (acc. to VDI/VDE 3513-2) or ±2% of full scale Suitable for use in Safety Instrumented Systems with SIL 2, in redundant design (1oo2) also in SIL 3 applications (type A device) Approved for hazardous areas
