Flow Measurement

DK37 M8

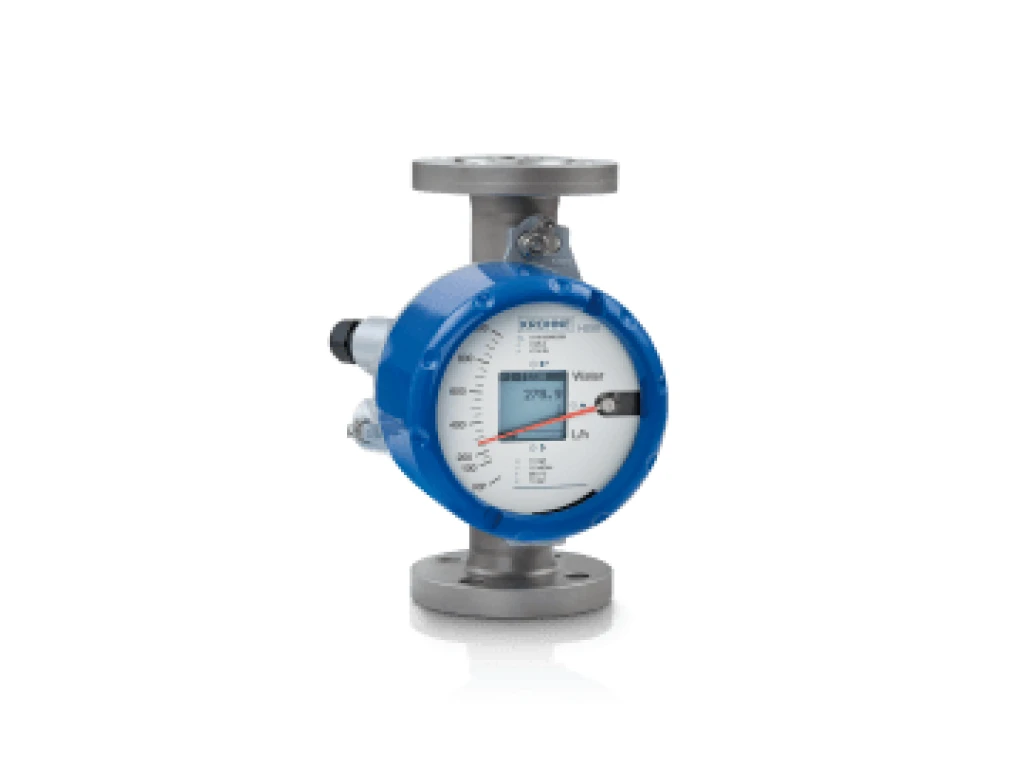

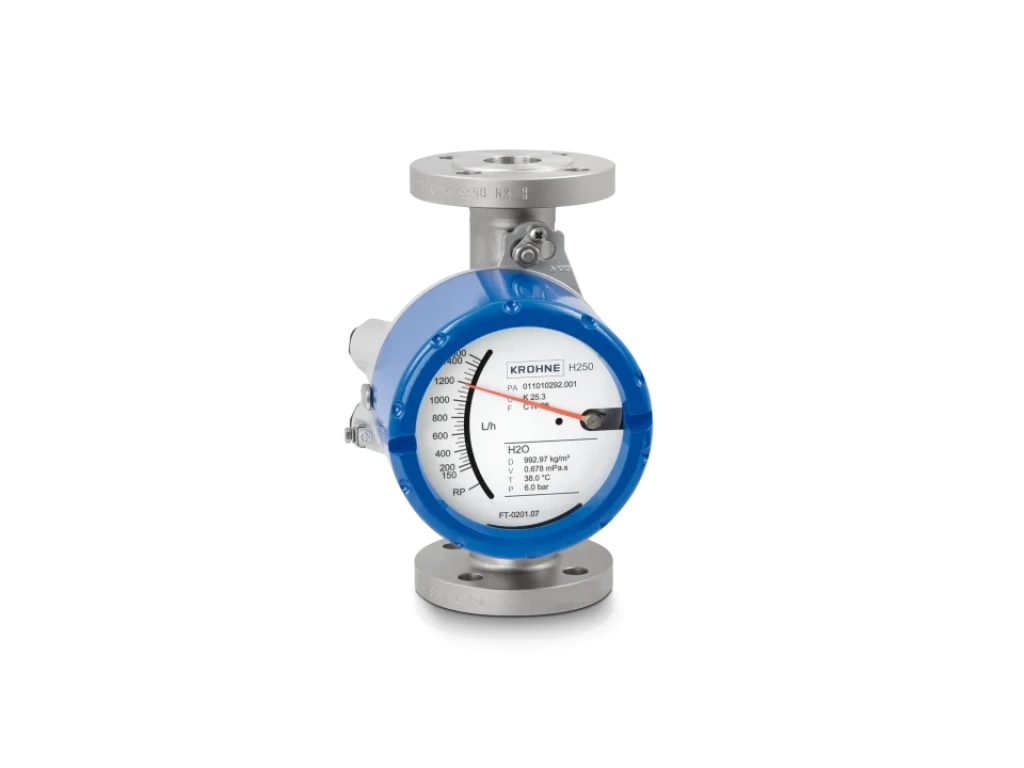

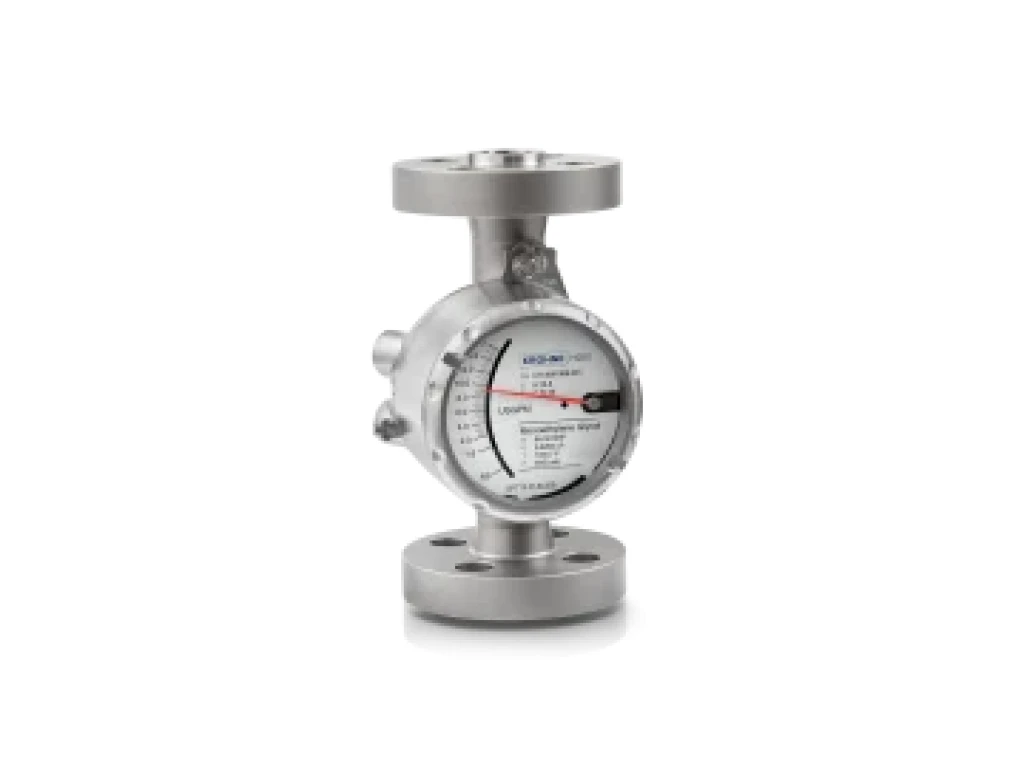

H250 M40

Brand: Krohne
Variable area flowmeter for liquids and gases Modular design: from mechanical indicator to 4…20 mA/HART®7, FF, Profibus-PA and totalizer Any installation position: vertical, horizontal or in descending pipes Flange: DN15…150 / ½…6"; also NPT, G, hygienic connections, etc. -196…+400°C / -320…+752°F; max. 1000 barg / 14500 psig
- +
Download Data Sheet
Simple, low-cost installation: able to measure and display without auxiliary power supply Unique modularity and serviceability: Limit switches, 2-wire 4…20mA, totalizer with LCD and pulse output, fieldbus interfaces NE 107 device and application diagnostics with CFM (Continuous Float Monitoring), e.g. for float blockade detection Universal ex-concept: Explosion proof and intrinsically safe Various stainless steel and alloy sensor materials Optional stainless steel housing for corrosive atmospheres Ingress protection IP66 and IP68 / NEMA4X and NEMA6, IP69K optional Full scale value for liquids: 10…120,000 l/h / 5…32,000 GPH Full scale value for gases: 0.7…2800 m3/h / 25…100,000 SCFH Turndown ratio 10:1 (optional 100:1) Maximum measuring error: ±1.6% (acc. to VDI/VDE 3513-2) or ±1.5% of full scale Suitable for use in Safety Instrumented Systems with SIL 2, in redundant design (1oo2) also in SIL 3 applications (type A device) Optional hygienic design for use in the food and pharmaceutical industry
