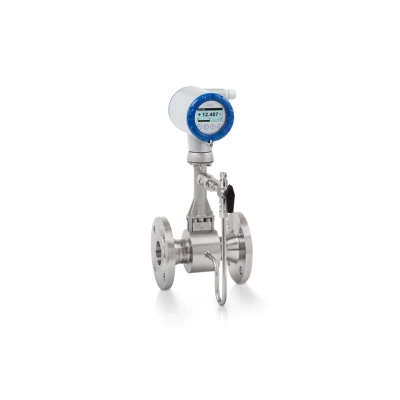

Vortex flowmeter for utility applications and energy management systems For liquids, (wet) gases, saturated and superheated steam (+240°C / +464°F) Integrated P+T measurement: direct output of mass, normalised flow, energy, gross/net heat Flange: DN15…300 / ½…12"; wafer version: max. DN100 / 4" 2-wire, 4…20 mA, HART®, FF, Profibus-PA

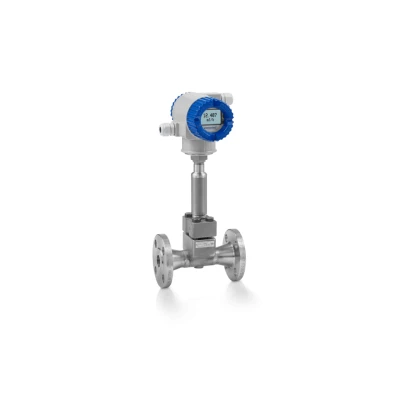

Vortex flowmeter for high temperature applications For liquids, gases and steam up to +427°C / +800°F Adaptive filtering and signal conditioning Flange: DN15…300 / ¾…12", max. PN160 / ASME 1500 lb; Sandwich version: max. DN200 / 8" 2-wire, 4…20 mA, HART®

Azbil multivariable flowmeters utilize three primary sensing elements –a vortex shedding velocity sensor, an RTD temperature sensor, and a solid-state pressure transducer–to measure the mass flow rate of gases, liquids and steam. Systems that use external process measurements to calculate mass flow may not provide adequate compensation for the fact that process conditions can change radically between the point of velocity measurement and the point where upstream or downstream pressure and temperature measurements are being made. Because the model AX22 multivariable flowmeter measures all of these parameters in a single location, it delivers a more accurate process measurement. Integrating multivariable output capability with a single line penetration also simplifies system complexity and helps reduce initial equipment cost, installation cost and maintenance costs. The product line is available with a wide range of options and meter configurations to meet your specific application requirements.

Azbil’s Model AX24 Multivariable Vortex Flowmeter offers accurate and reliable flow metering in a multivariable design. The multivariable design incorporates a high-accuracy velocity sensor, a precision platinum RTD temperature sensor, and a solid-state pressure transducer. The AX24 can deliver volumetric flow, mass flow, temperature, pressure, density, and energy (BTU) measurements from a single installed device. This drastically reduces complexity, equipment costs, and installation costs in comparison to installing multiple stand-alone instruments to arrive at the same process measurements.

Azbil multivariable flowmeters utilize three primary sensing elements – a vortex shedding velocity sensor, an RTD temperature sensor, and a solid-state pressure transducer – to measure the mass flow rate of gases, liquids and steam. Because the model AX23 is able to measure all process variables within a single device it provides exceptional accuracy, simplifies system design and reduces installation costs.
