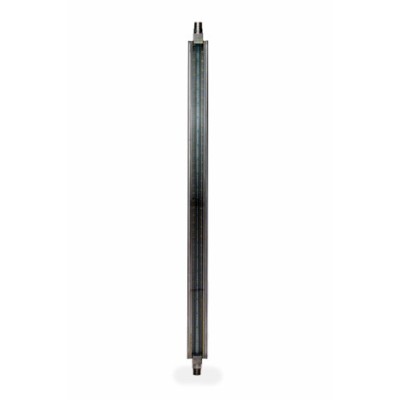

The 17000 Gauge functions as a level indicator and also serves as a pump setting gauge. The rate scale can be calibrated in a variety of options, such as GPM, GPH, GPD, LPM, LPH, or LPD. The maximum pump rate for a 12″ gauge section is 25 GPD. The sight tube in the 17000 is 1″ O.D. glass, which makes it ideal for viscous fluids. The top and bottom connection for this gauge is 1″ MNPT.

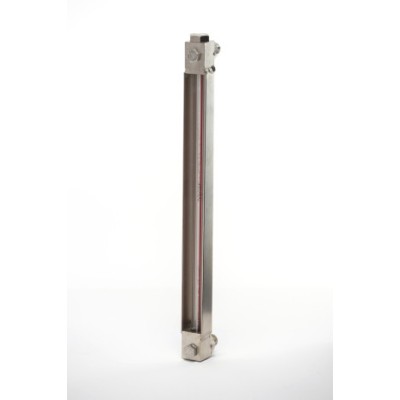

The KENCO close-mount level gauge is ideally suited for applications in which the level gauge must be mounted with a minimum of protrusion from the tank. Typical applications include offshore or corrosive atmospheres, packaged hydraulic equipment, steel mill pumps, surge tanks, radiator fluid levels. The design of these gauges affords easy installation. Simply install the male thread adapter into the tank connection and then slide the gauge housing over these adapters and bolt gauge into place. The glass is protected from breakage by the gauge housing.

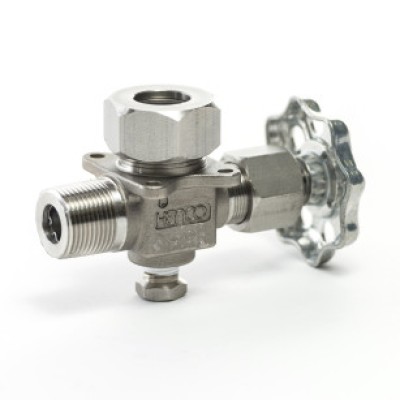

The KENCO Tubular Valve (KTV), when used with a KENCO Safeguard Level Gauge or KENCO EPG Level Gauge, provides maximum operator safety and environmental protection from a potential gauge glass failure. The KTV is designed for service in low to medium pressure applications up to 500 psig (34.47 bar).

The KENCO Armored Level Gauge (Model ESP or ST) is a rugged tubular liquid level gauge that offers maximum impact from mechanical stress and impact. Product benefits include lower installation costs, reduced maintenance, unobstructed visual indication for your application. The gauge is adaptable to many different types of process connections. Armored frame and 90 degree instrument tees are available in a wide variety of materials. Wetted materials are limited to the O-Ring material, PTFE sight tube holder, and glass. The level gauge will operate in a medium pressure range up to 500 PSI. The ESP series offers extra glass protection from an outer tube of polycarbonate, which surrounds the gauge glass.

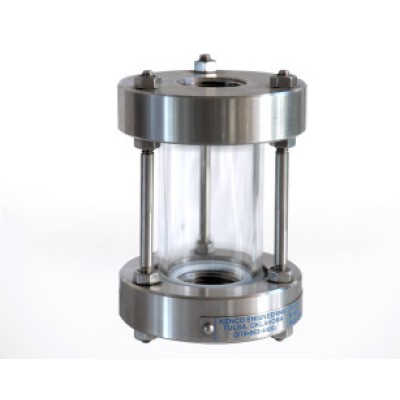

Full View Sight Flow Indicators are used to observe the flow of liquids in a piping system. 360° visibility provides convenient viewing from any angle. Designed for vertical applications. Threaded and flanged connections are available in a variety of sizes to match the diameter of the pipe being used. A wide range of end plate materials are available. Units can be made with any overall length if additional visibility is required. Full View Sight Flow Indicators are used in low pressure applications. Maximum pressure allowable will vary with temperature and size.

KSF Cast Body Sight Flow Indicators have a heavy duty cast construction to handle pressure and temperature requirements. A glass window on either side provides product visibility. Mechanical indicators to enhance the visibility of the media include flappers, rotors, and drip tubes. The cast body and threaded or flanged connections meet ANSI standards. Standard materials of construction are carbon steel, 316 SS, ductile iron, and bronze. Hastelloy C 276 and alloy 20 can also be supplied. Please consult the factory for pricing. The KSF Sight Flow Indicators are available in two series – ST and HT. The ST series is designed for standard temperatures and pressures while the HT series is designed for higher pressures and temperatures. Please see specifications for exact ratings of each.

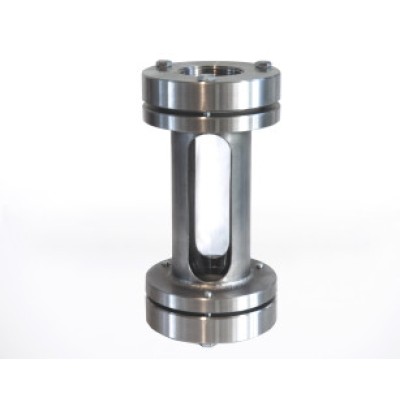

Armored Sight Flow Indicators are used to observe the flow of liquids in a piping system. A rigid steel housing surrounds the sight tube and provides additional strength and protection from mechanical impact. Threaded and flanged connections are available in a variety of sizes to match the diameter of the pipe being used. A wide range of housing materials are available. Units can be made with any overall length if additional visibility is required. Wetted materials consist of glass and the connection end plates. Recommended for low pressure vertical or horizontal applications. Maximum pressure allowable will vary with temperature and size.

Sight Windows are an effective and economical way of viewing tank, pressure vessel, piping system interiors. They are also referred to as Sight Glasses and are often replaceable or removable. Fluid clarity, color, level and flow can be monitored through the window. Sight Windows can be mounted by bolting, welding or direct insertion into the end of the tank or pipe. Welding may require a radius pad that conforms to the pipe or curved vessels or a flat pad that mounts to a flat tank wall.

KSW Threaded Sight Windows are a low cost solution for viewing liquids. The hexagon head body with a male NPT mounting connection allows for easy installation. Clear glass lens is hermetically sealed and fused to the metal body to ensure leak-proof service and eliminate concerns typically found with traditional gasket type sight window assemblies. The optical clarity of the glass lens transmits an accurate view of the liquid being viewed in the window. Lens is flush with the front face of the body which allows for easy cleaning and prohibits build up of dirt and debris normally associated with sight windows having a recessed lens. KENCO KSW sight windows reliably meet and exceed the requirements of most applications.
