Level Measurement

BM26A-3000
BM26A-7000

BM26A-6000

Brand: Krohne

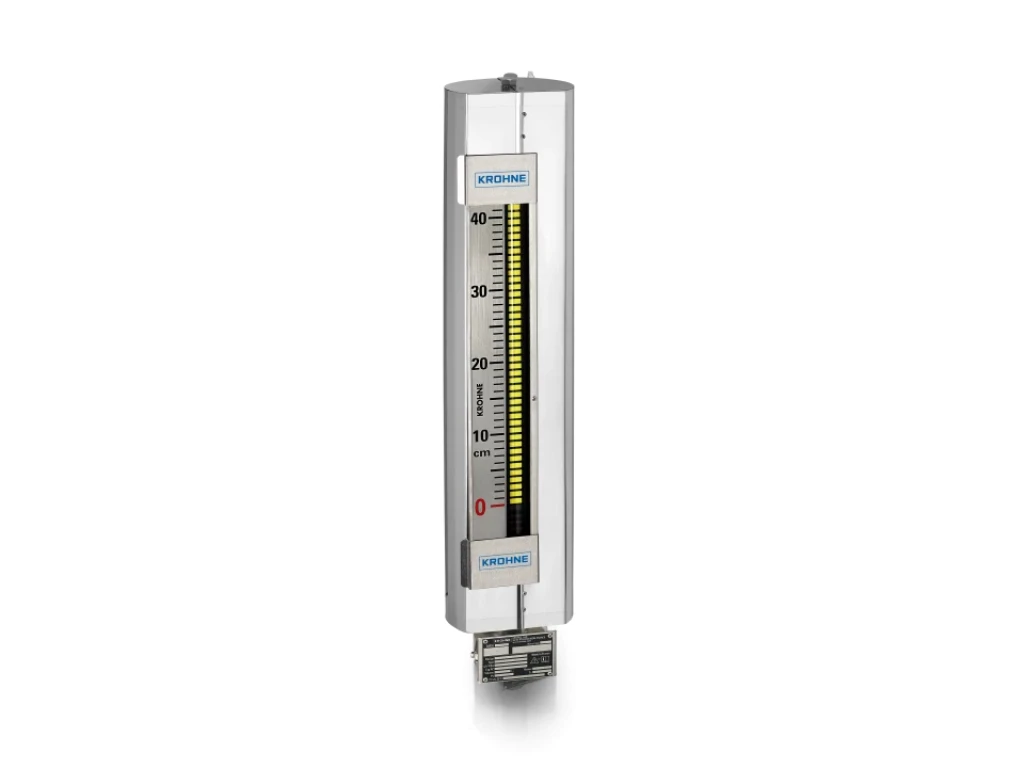

Magnetic level indicator for liquefied gas

  • Designed for low temperature and cryogenic media; no power supply needed
  • Measuring range: 0.3…5.5 m / 1...18 ft (others on request)
  • Density: 500…1200 kg/m3 / 31.21…74.91 lb/ft3
  • -196…+200°C / -320.8…+392°F; -1…40 barg / -14.5…580 psig



- +
  • Stable level measurement in case of evaporating or boiling liquids
  • Rugged metallic design, no maintenance
  • Titanium float for low-density applications
  • Flaps housed in hermetically sealed glass tube (IP68)
  • Highly visible level indication works without power supply
  • Various thermal insulation options for insulation down to -196°C / -320.8°F
  • Available with optional reed switches (3-wire, NAMUR) or reed-chain level transmitter (4…20 mA/HART®7, FF, PA output)

BM26A-6000 Technical Datasheet

https://www.krohne.com/en-us/products/level-measurement/level-indicators-bypass-chambers/magnetic-bypass-level-indicators/bm26a-6000
