Level Measurement

BM26A-6000
BM26A-8000

BM26A-7000

Brand: Krohne

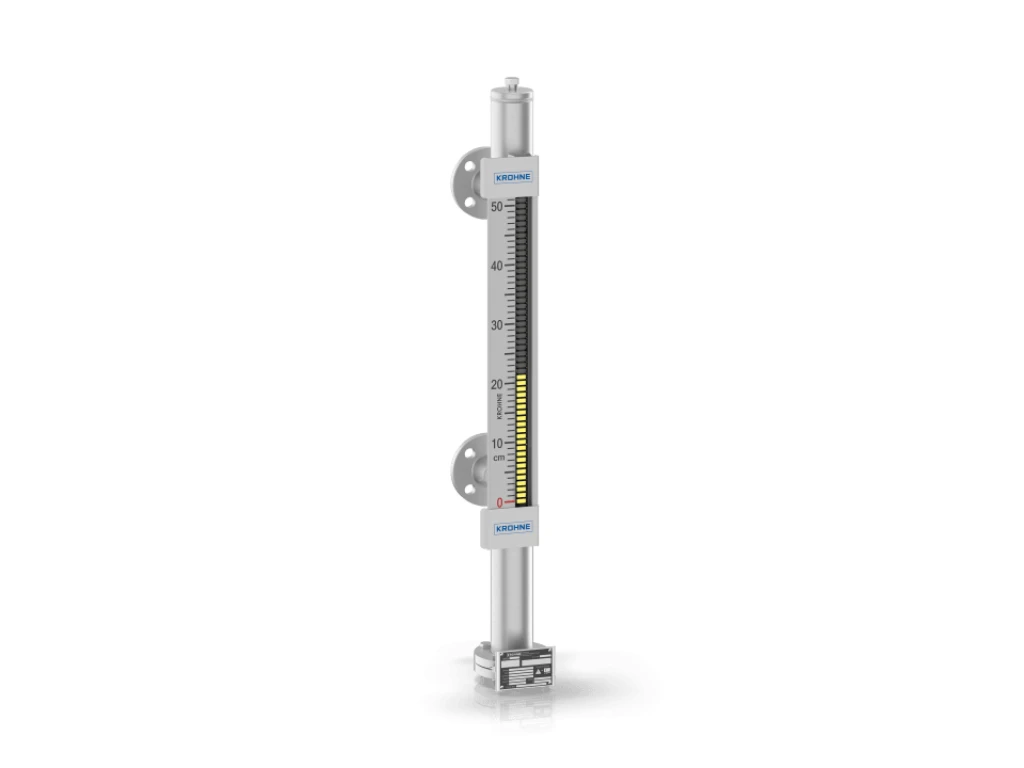

Magnetic level indicator for extreme operating conditions Designed for level and interface measurement of high-temperature and high-pressure liquids; no power supply needed Measuring range: 0.3…5.5 m / 1...18 ft (others on request) Density: 370…1200 kg/m3 / 23.9…74.91 lb/ft3 Up to +400°C / +752°F; 400 barg / 5801 psig
- +
Download Data Sheet
Dedicated version for high temperature and pressure conditions Large choice of materials, e.g. 316L, 304L, alloy C276, alloy 625 PTFE-lined version for corrosive liquids up to +200°C / 192°F and 40 barg / 580 psig Float designed for low densities down to 370 kg/m3 / 23.09 lb/ft3 Flaps housed in hermetically sealed glass tube (IP68) Thermal insulation for high temperatures, electric heat tracing, heating/cooling system, heat protective enclosure Highly visible level indication works without power supply Available with optional reed switches (3-wire, NAMUR) or reed-chain level transmitter (4…20 mA/HART®7, FF, PA output)
