Level Measurement

BM26A-7000
Magnetostrictive Level Transmitters

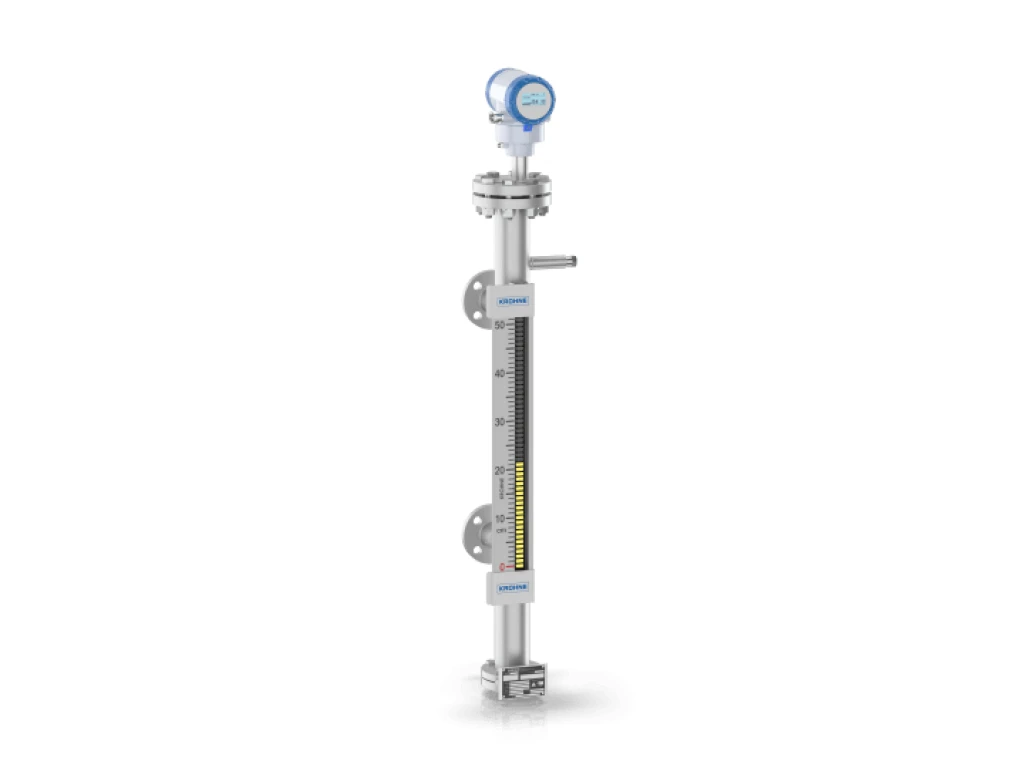

BM26A-8000

Brand: Krohne
Magnetic level indicator with level transmitter for liquids in redundant measurement Designed for redundant level measurement combining magnetic level indicator and guided radar (TDR), radar (FMCW) or displacer technology Measuring range: 0.3…5.5 m / 1...18 ft (others on request) Density: 370…1200 kg/m3 / 23.9…74.91 lb/ft3 Up to +400°C / +752°F; 400 barg / 5801 psig
- +
Download Data Sheet

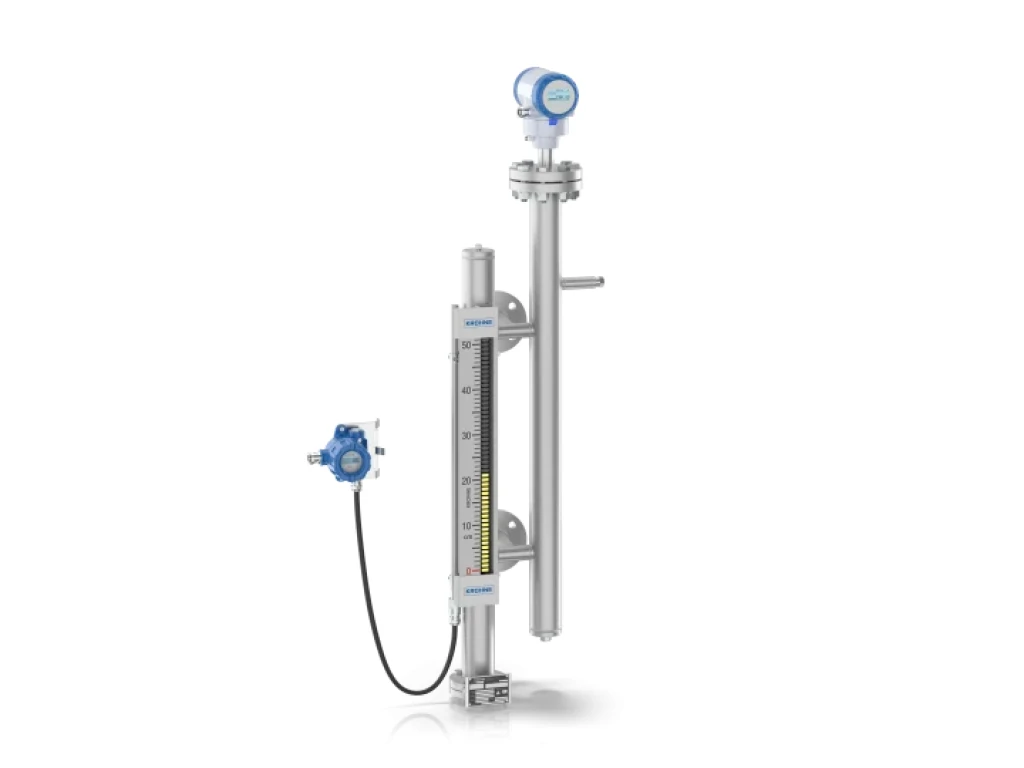

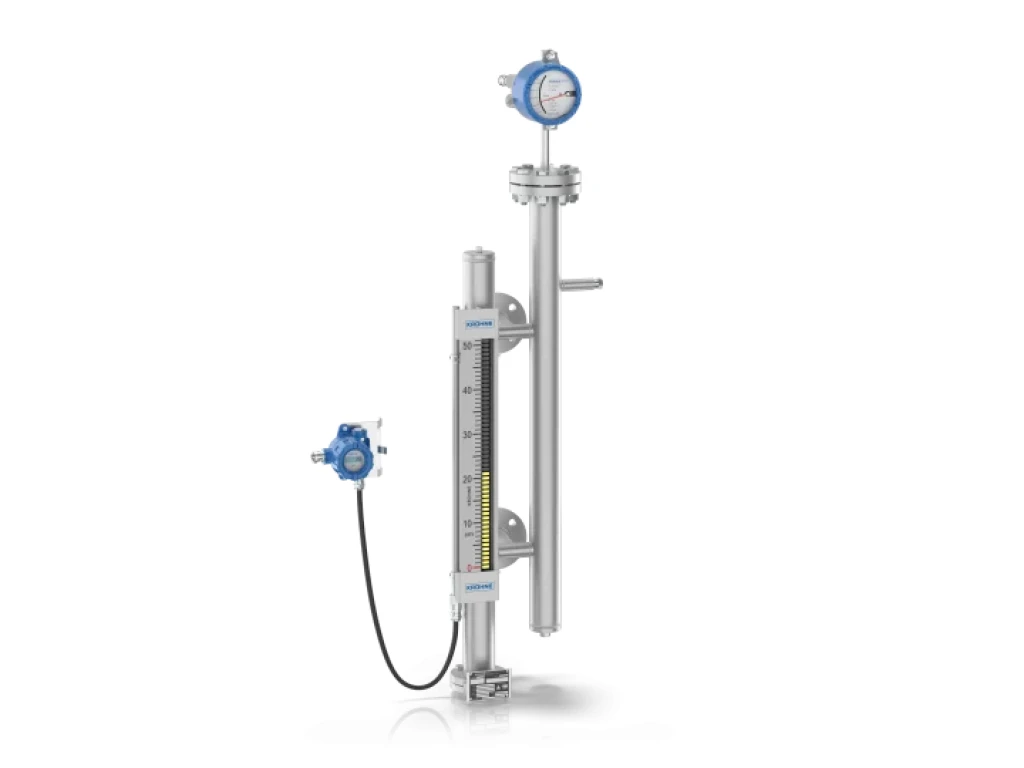

Combined technology for redundancy Can be fitted with OPTIFLEX 7200 or OPTIFLEX 8200 guided radar (TDR), OPTIWAVE 7400 radar (FMCW) or BW 25 displacer level transmitter Also available as TWIN version with a dual bypass chamber connected adjacently Rugged metallic design – no maintenance Large choice of materials e.g. 316L, 304L, alloy C276, alloy 625 Highly visible flaps housed in hermetically sealed glass tube (IP68) Accuracy from ±2 mm / ±0.08″ with OPTIFLEX and OPTIWAVE level transmitters
