Level Measurement
OPTIWAVE 5400
- 2-wire, loop-powered, with HART®7

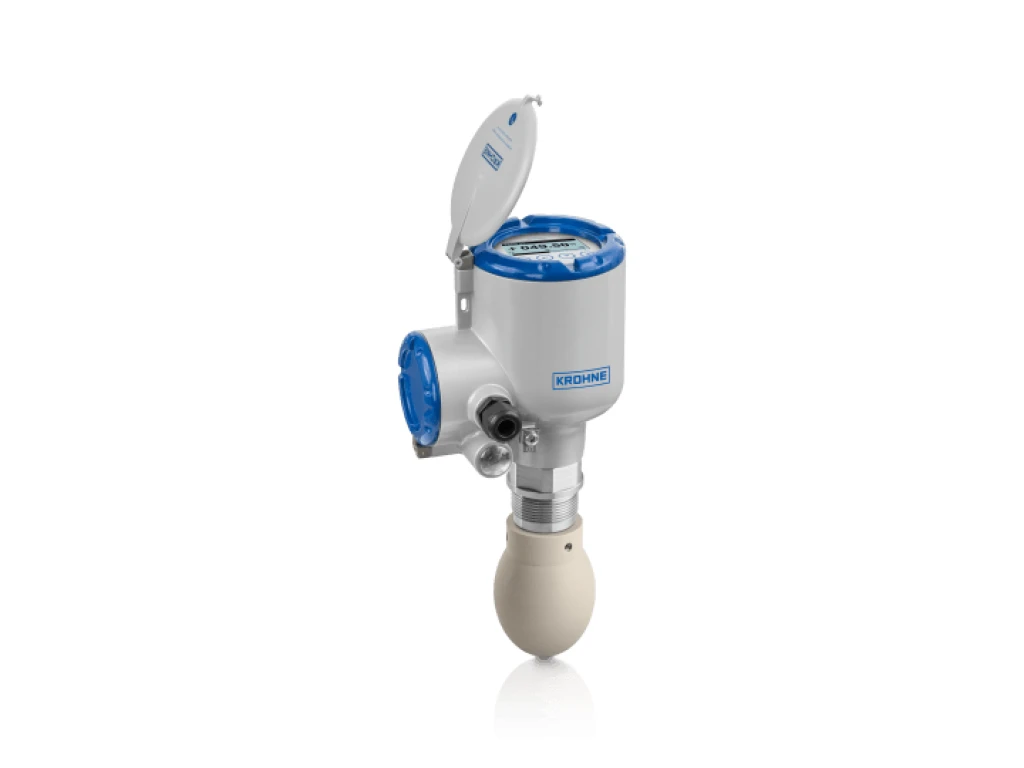

- PP Drop antenna:
- Insensitive to condensation
- Small beam angle (5° with DN150 / 6″ Drop antenna)
- Ellipsoidal shape and smooth surface to minimise scaling
- PP flange plate protection and cladded antenna extensions for corrosive media
- New DN100 / 4″ Drop antenna for distances up to 80 m / 262.5 ft

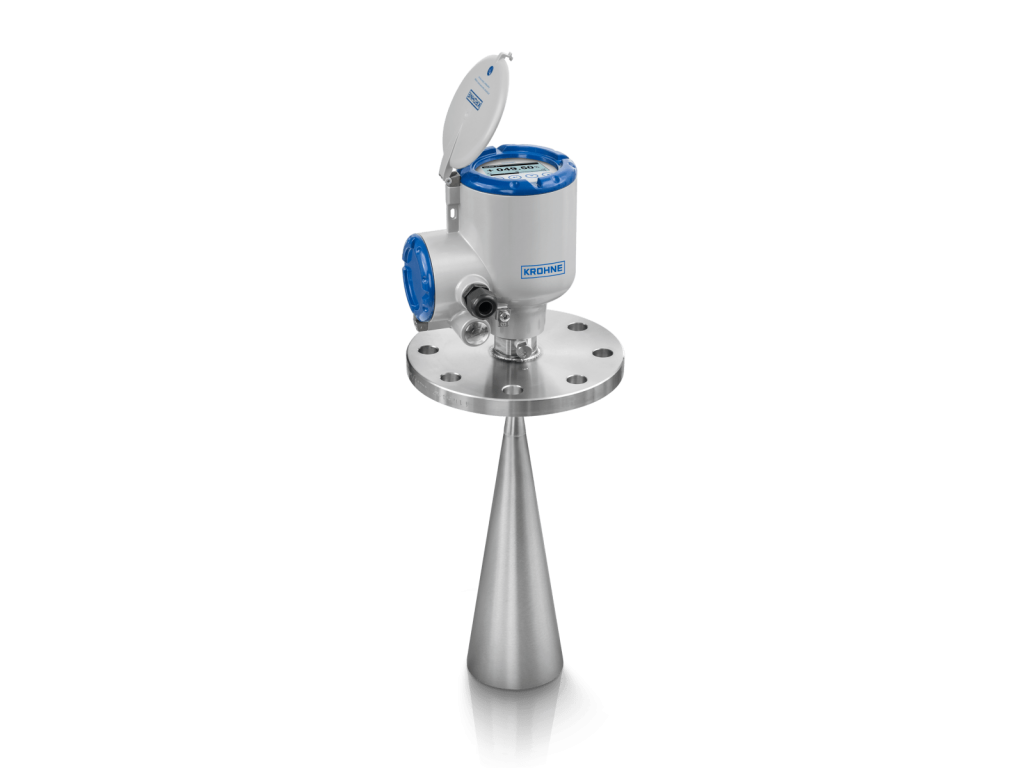

- 316L Metallic Horn antenna with optional purging system
- TBM (Tank Bottom Management) ensures reliable measurement even in empty tanks:
- dedicated algorithms to filter and compensate for irregular radar wave reflections that occur at tank bottom when the vessel is empty
- allows for quick and easy commissioning of tanks regardless of their size, material or geometry
- ±2 mm / ±0.08″ accuracy
- Antenna extensions to suit any nozzle
- length
- Empty tank spectrum function eliminates false reflections caused by tank internals
- Large choice of flange and thread connections
- Large, backlit LCD screen with 4-button keypad for operation with bar magnet; no need to open the housing cover
- PACTware™, HART® DD and DTM provided free of charge with full functionality
- Extensive device diagnostics acc. to NAMUR NE 107
- SIL 2/3 certified for safety-related applications
- 3-year warranty
OPTIWAVE 5400 Technical Datasheet
