Level Measurement
OPTIWAVE 6400
Brand:
Krohne
Radar level transmitter for advanced applications with solids from granulates to rocks
- Continuous, non-contact level measurement in/on silos, stockpiles, conveyor belts etc.
- 24 GHz radar, Horn or Drop antennas
- Measuring range: 0…100 m / 328 ft
- -50…+130°C / +266°F; -1…16 barg / -14.5…232 psig
- 2-wire, loop-powered, with HART®7
- Built-in configurations for different surface profiles

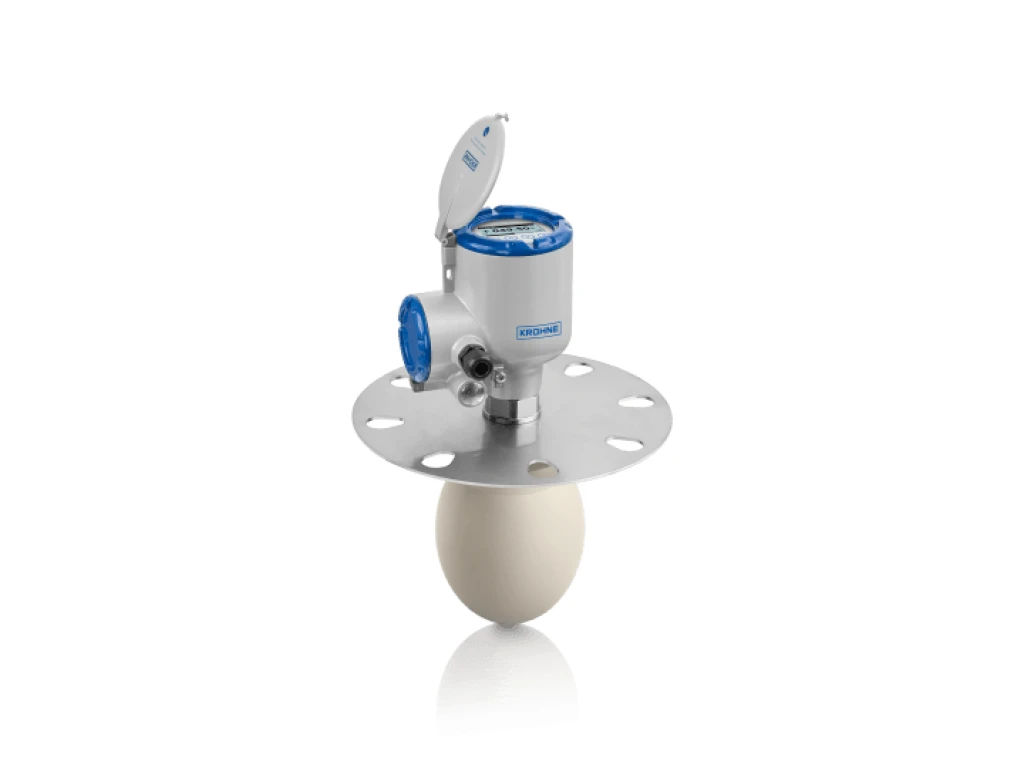

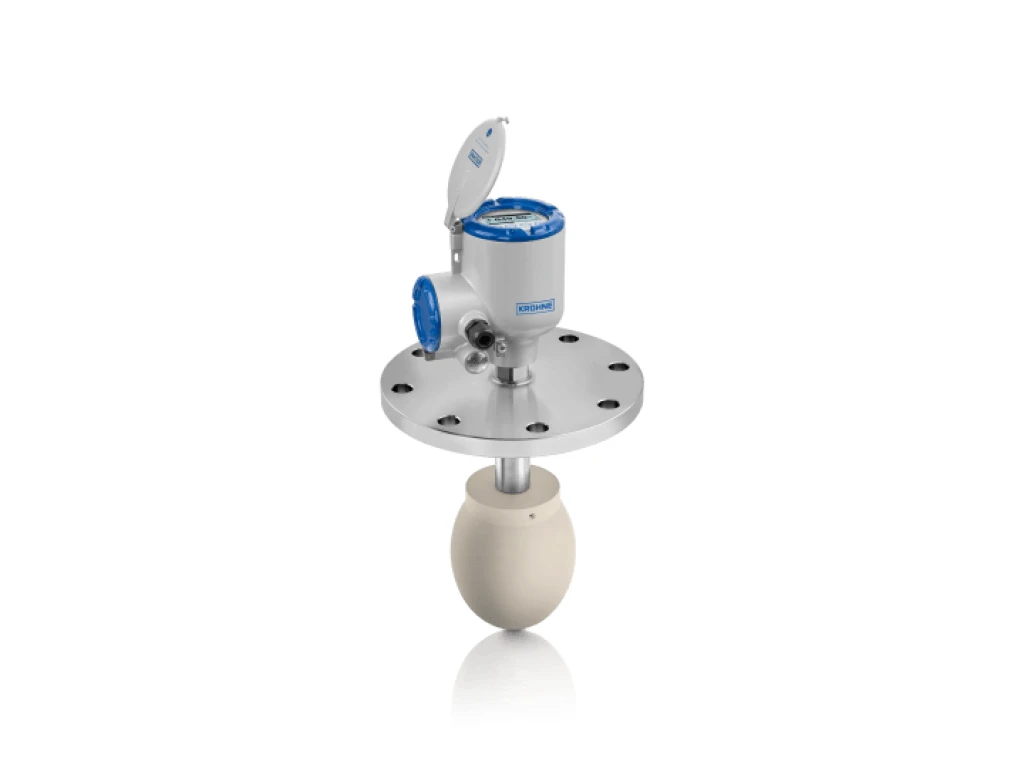

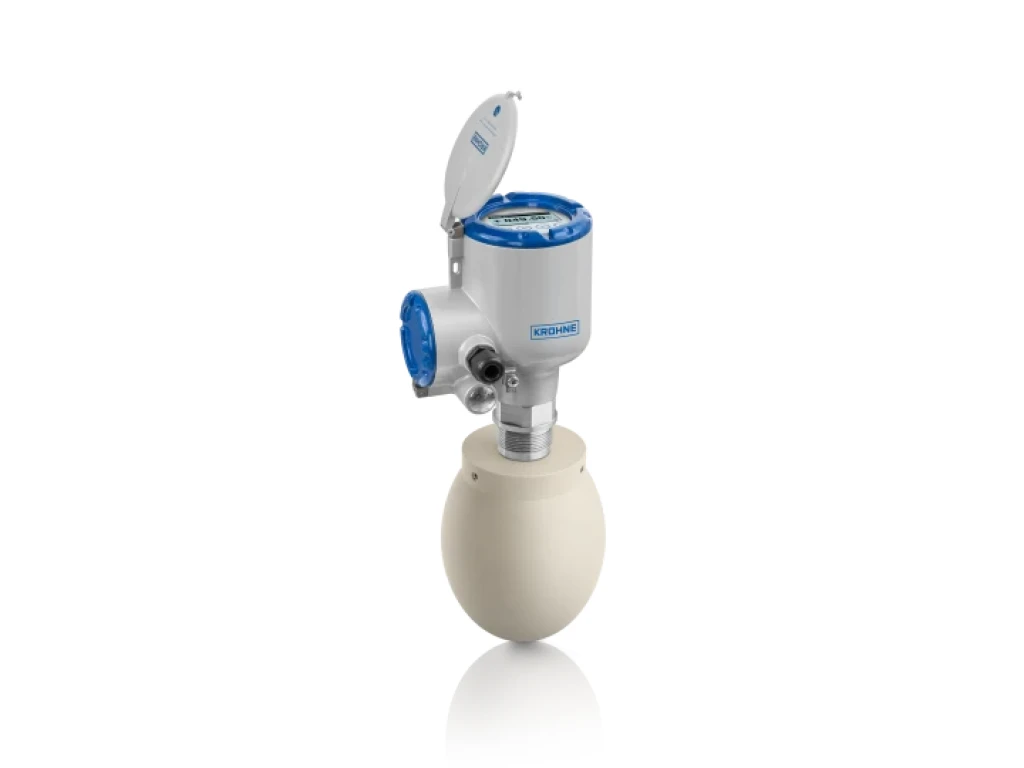

- PP or PTFE Drop antennas:
- Insensitive to product build-up
- Small beam angle (4° with DN150 /6″ PTFE Drop antenna)
- Ellipsoidal shape and smooth surface to prevent scaling
- Unaffected by angle of repose – no need for antenna aiming kits
- New DN100 / 4" for distances up to 40 m / 131.2 ft
- 316L Metallic Horn antenna with optional purging system
- TBM (Tank Bottom Management) ensures reliable measurement even in empty tanks:
- dedicated algorithms to filter and compensate for irregular radar wave reflections that occur at tank bottom when the vessel is empty
- allows for quick and easy commissioning of tanks regardless of their size, material or geometry
- ±2 mm / ±0.08″ accuracy
- Spare converter compatible with all OPTIWAVE 6300 C process connections
- Low-cost 316L low-pressure flange discs
- Antenna extensions to suit any nozzle length
- Large choice of flange and thread connections
- Large, backlit LCD screen with 4-button keypad for operation with bar magnet; no need to open the housing cover
- PACTware™, HART® DD and DTM provided free of charge with full functionality
- SIL 2/3 certified for safety-related applications
- 3-year warranty
