Level Measurement
OPTIWAVE-M 7400
- Cargo radar level gauge designed to operate in the roughest marine conditions
- With rugged stainless steel (1.4404 / 316L) housing and display protection
- Redundant display: ullage/level will always be shown locally
- Inert gas pressure sensor (IGP) integral part of radar flange
- Antennas:
- Horn antenna (DN100 / 4"): Stainless steel (1.4404 / 316L) or higher Molybdenum (on request)

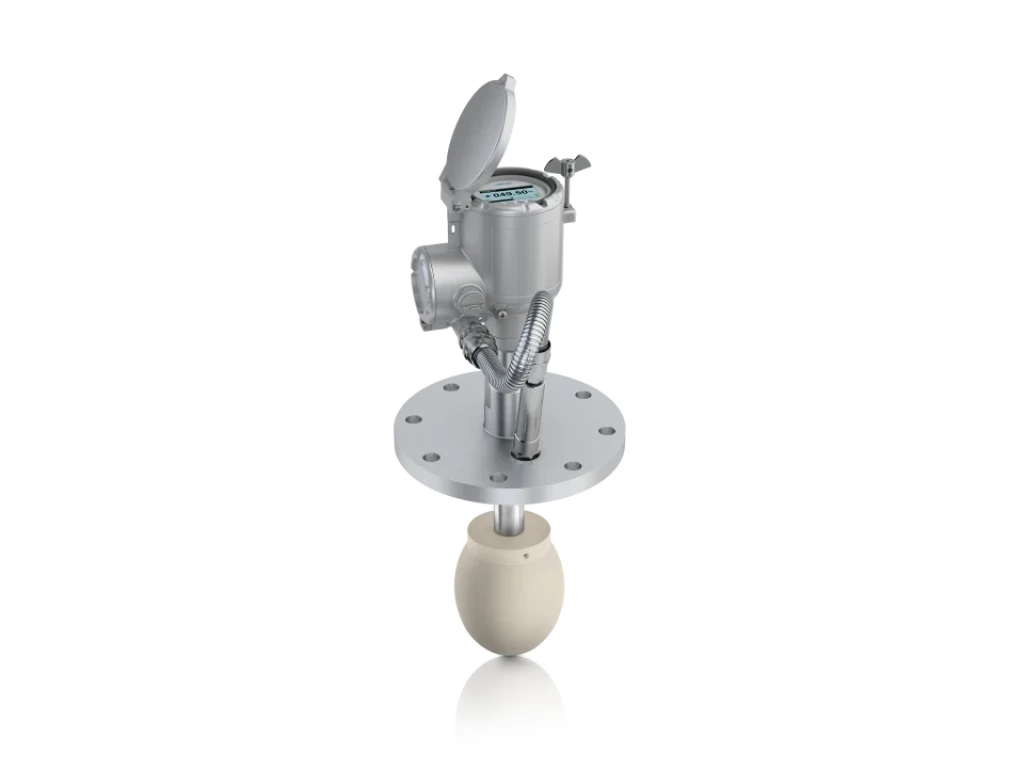

- Drop antenna (DN80 /3" or DN100 /4"): PP or PTFE
- Horn antenna option comes with built-in antenna purging system for cleaning without opening the tank
- TBM (Tank Bottom Management) ensures reliable measurement even in empty tanks:
- dedicated algorithms to filter and compensate for irregular radar wave reflections that occur at tank bottom when the vessel is empty
- allows for quick and easy commissioning of tanks regardless of their size, material or geometry
- Replacement of the signal converter can be done at any time, even during cargo operations without opening the tank
- Accuracy: ±2 mm / 0.1" uncertainty
- Optimized for use with the CARGOMASTER solution for liquid cargo monitoring and alarm
OPTIWAVE-M 7400 Technical Datasheet
