Level Measurement

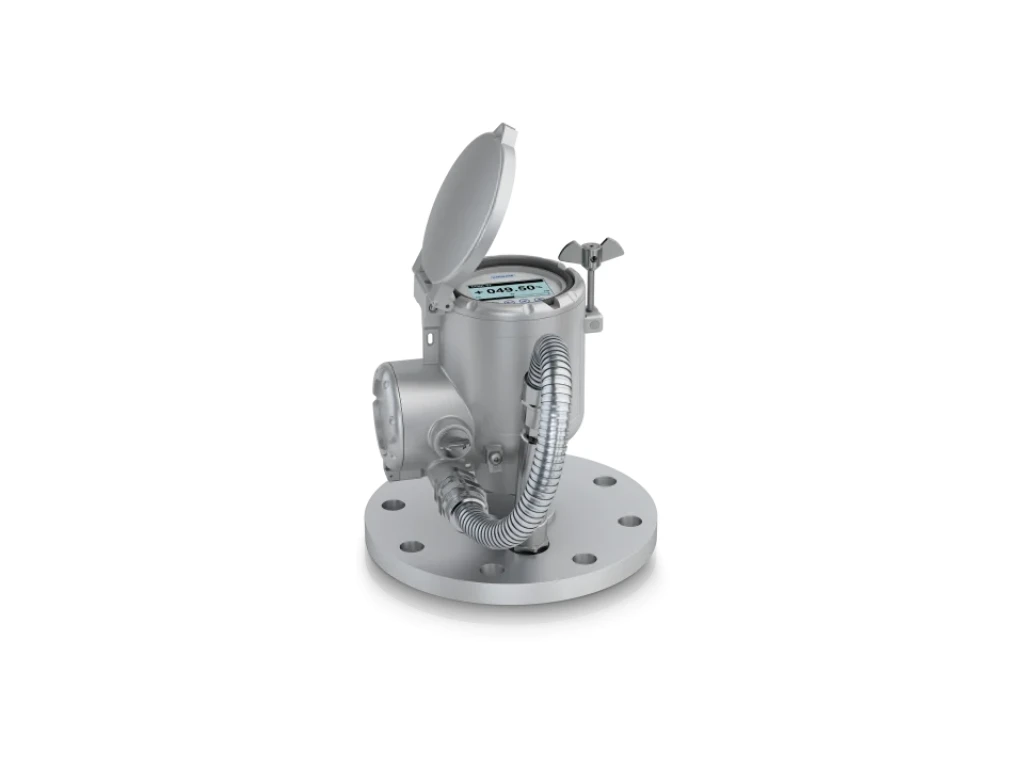

OPTIWAVE-M 7500
Brand:
Krohne
Radar level transmitter for liquids and solids in the marine industry
- Continuous, non-contact cargo level measurement
- 80 GHz radar, Lens antenna (flush-mounted)
- Very small beam angle for narrow tanks of various heights and shapes
- Redundant ullage indication with local display on deck
- Cargo radar level gauge designed to operate in the roughest marine conditions
- With rugged stainless steel (1.4404 / 316L) housing and display protection
- Redundant display: ullage/level will always be shown locally
- Inert gas pressure sensor (IGP) integral part of radar flange
- Flush-mounted PEEK Lens antenna (no tank intrusion):
- DN70 / 2¾″ with extremely focussed beam angle of only 4° for use in narrow tanks
- DN40 / 1½″ with narrow beam angle of 8° for small to large tanks
- TBM (Tank Bottom Management) ensures reliable measurement even in empty tanks:
- dedicated algorithms to filter and compensate for irregular radar wave reflections that occur at tank bottom when the vessel is empty
- allows for quick and easy commissioning of tanks regardless of their size, material or geometry
- Accuracy: ±2 mm / 0.08"
- Optimised for use with the CARGOMASTER® solution for liquid cargo monitoring and alarm
