Paired with the Advanced Pressure Transmitter, Azbil North America is able to provide an extensive line of Remote Diaphragm Seals. From cryogenic to high-temperature applications, we can draw upon decades of experience designing and manufacturing remote diaphragm seals for process control to find a transmitter/remote seal system that fits your needs.

Unique characterization and composite semiconductor sensor provides high accuracy and stable operation for years to come. Wide rangeability means you can cover more of you applications with less inventory, saving you money. A diverse product offering, including measurement ranges, process connections, working pressure ratings and wetted parts materials are available to meet your requirments Fast Response time of under 100 msec makes the transmitter suitable for pressure control in turbine applications User-customizable interface can measure and display in the units you decide are right for your application Bilingual communication capability (HART & DE Protocol) makes the choice for plants with a mixed DCS installed base.

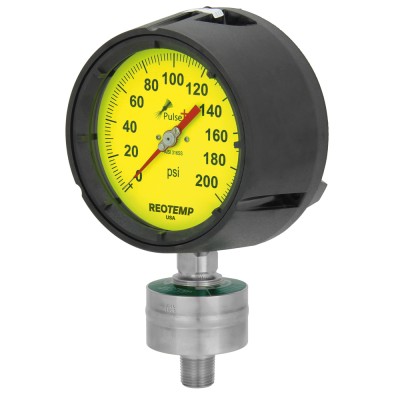

REOTEMP’s All-Welded Pressure Seal Gauge™ offers superior diaphragm seal safety and performance at an economical price. Combined with a gauge or transmitter, the tamper-resistant all-welded diaphragm seal reduces potential leak points, making it ideal for installations where process integrity and worker safety are paramount. Combined with PulsePlus™ protection, the Series MS8 can potentially triple the life of your gauge or transmitter. Increases the Life of the Gauge by Up to 3x Reduce/Eliminate Fugitive Emissions Available Up to 5,000 psi Eliminate Potential Leak Points Tamper Resistant Compliant to NACE MR0175, MR0103

The Reotemp MS9 is a high-accuracy diaphragm seal developed primarily for low pressure applications. The MS9 offers improved temperature stability, critical for outdoor installations. Extra-Large Diaphragm for High Accuracy, High Displacement, or Low Pressure Applications Reduce/Eliminate Fugitive Emissions Eliminate Potential Leak Points Tamper Resistant No Internal Gasket, Ideal for High Temperatures and Long Life

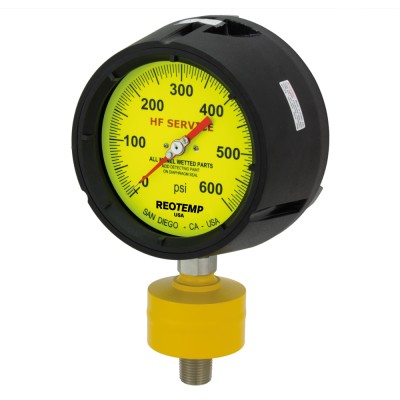

REOTEMP Model MSX HF Safety Gauge is a specially designed Mechanical Pressure Gauge for use in Hydrofluoric Acid service. Both the diaphragm seal components and pressure gauge internals are made with Monel A400 material, complying with EPA rules on dual containment. The entire diaphragm seal system is completely welded and coated with acid-detecting paint providing a visual alert in the event of a process leak around the diaphragm seal. All Welded System Eliminating Potential Leak Points and Assuring Tamper-Proof Installation Gold Plated Monel Diaphragm Available for Aerated HF Service Acid Detecting Paint on Seal Body Assembly Cleaned per ASME B40.1 Level IV and Shipped in Sealed Bag

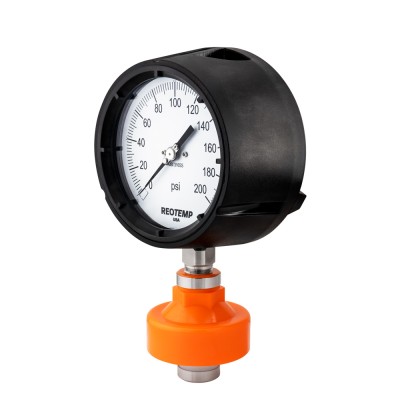

Reotemp’s Model PLS Plastic Chemical Seals provide complete isolation of pressure measurement instruments such as dial pressure gauges, pressure transmitters, and switches from a wide variety of corrosive or ultra pure process fluids. Also know as a Gauge Guard or a Gauge Isolator, the Model PLS features all non-metallic wetted components, offering a robust, durable, and economical solution to pressure measurement applications in Wasterwater, Water Treatment, Chemical Processing, Deslination, and other applications where plastic piping is traditionally used.

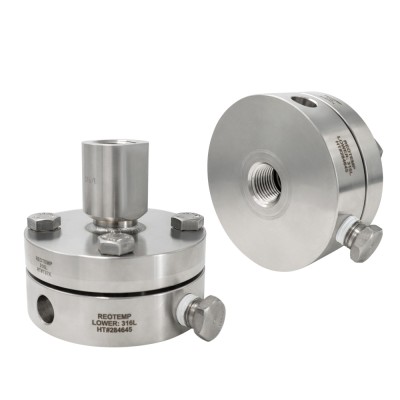

Reotemp’s Threaded Offline Welded Diaphragm Seals are designed with an upper and lower housing bolted together with a diaphragm welded to the upper housing. This removable design allows for easy cleanout of the seal chamber, while still maintaining the system fill. The threaded offline diaphragm seal can be adapted to fit almost any pressure instrument and process application. Welded Diaphragm for Maximum Durability Wide Variety of Diaphragm and Material Options Continuous-duty Disc Protects from Process Fluid Leaking in the Event of a System Breach Easy Cleanout of Diaphragm Cavity without Compromising Filled System

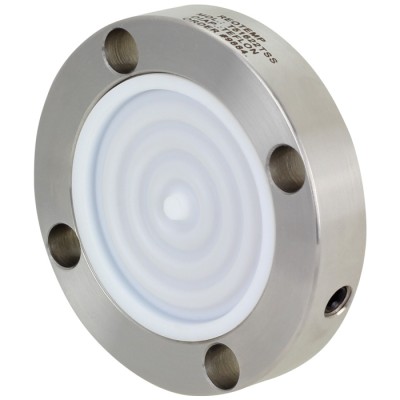

Reotemp’s Threaded Offline Non-Metallic Diaphragm Seals are designed with an upper and lower housing bolted together with a Teflon or Viton diaphragm bonded to the upper housing. This design allows for the lower housing to be removed for easy cleanout of the seal chamber while still maintaining the system fill. The Teflon and Viton diaphragms are ideal for protecting the pressure instrument from corrosive process fluid. Removable Lower Housing Design for Easy Cleanout Wide Variety of Plastic and Metallic Lower Housing Materials Highly Sensitive and Corrosion Resistant Diaphragm High Displacement Diaphragms Ideal for Mechanical Differential Pressure Gauges and Low Pressure Gauges

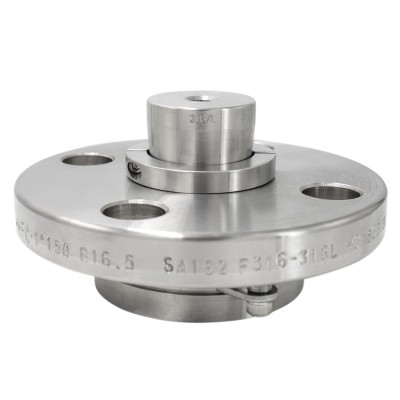

Reotemp’s Flanged Offline Welded Diaphragm Seals are designed with an upper and lower housing, bolted together with a diaphragm welded to the upper housing. This removable design allows for easy cleanout of the seal chamber, while maintaining the system fill. The flanged offline diaphragm seal can be adapted to fit almost any pressure instrument and process application. Welded Diaphragm for Maximum Durability Wide Variety of Diaphragm and Material Options Continuous-duty Disc Protects from Process Fluid Leaking in the Event of a System Breach Easy Cleanout of Diaphragm Cavity without Compromising Filled System

Reotemp’s Flanged Offline Non-Metallic Diaphragm Seals are designed with an upper and lower housing bolted together with a Teflon or Viton diaphragm bonded to the upper housing. This design allows for the lower housing to be removed for easy cleanout of the seal chamber while still maintaining the system fill. The Teflon and Viton diaphragm are ideal for protecting the pressure instrument from corrosive process fluid. Removable Lower Housing Design for Easy Cleanout Wide Variety of Plastic and Metallic Lower Housing Materials Highly Sensitive and Corrosion Resistant Diaphragm High Displacement Diaphragms Ideal for Mechanical Differential Pressure Gauges and Low Pressure Gauges

REOTEMP’s High Accuracy and High Displacement Threaded Diaphragm Seals are ideal for applications where high sensitivity or large fluid displacement is key to proper instrument performance. Designed with a diaphragm welded to the upper housing, the lower housing is detachable from the seal body allowing for easy cleanout of the process cavity without losing system fill. The High Accuracy Threaded Diaphragm Seal is most commonly mounted to Smart Transmitters (Gauge, Differential, and Absolute pressure), low pressure capsule gauges, mechanical DP gauges, and mechanical pressure switches. Extra Large 4.1″ Diaphragm for Maximum Sensitivity Wide Variety of Wetted Material Options 100% Helium Leak Tested Diaphragm Welds Easy Cleanout Design with Multiple Flush Port Options

REOTEMP’s High Accuracy Flanged Diaphragm Seals are ideal for applications where high sensitivity or large fluid displacement is key to proper instrument performance. Designed with a diaphragm welded to the upper housing, the lower housing is detachable from the seal body allowing for easy cleanout of the process cavity without losing system fill. The High Accuracy Flanged Diaphragm Seal is most commonly mounted to Smart Transmitters (Gauge, Differential, and Absolute pressure), low pressure capsule gauges, mechanical DP gauges, and mechanical pressure switches. Extra Large 4.1″ Diaphragm for Maximum Sensitivity Wide Variety of Wetted Material Options 100% Helium Leak Tested Diaphragm Welds Easy Cleanout Design with Multiple Flush Port Options

Reotemp’s W9FR two-piece flanged flush-face seal keeps the process stream sweeping clean across the diaphragm to prevent solids buildup. Its insert-style, all-welded construction lets the diaphragm and sealing face be fabricated from an alloy other than the flange—ideal when Tantalum, Hastelloy, Monel, or other exotic wetted materials are required. The rotating flange further simplifies bolt alignment during installation. Multi-piece Seal Design Bolts Directly to Process Flange Center Instrument Exit Commonly Supplied with Flush/Calibration Ring Ideal for Gauge or Differential Pressure Transmitters

Reotemp’s W9FF flanged flush-face seal is a one-piece, all-welded assembly. The diaphragm is integral with the flange, giving a crevice-free surface that keeps process flow sweeping across to prevent solids buildup. It is the most economical choice for 316 SS service, and can also be supplied in solid Hastelloy, Monel, Alloy 20, and other exotic alloys when enhanced corrosion resistance is required. One-piece Seal Design Bolts Directly to Process Flange Center or Side Instrument Exit Commonly Supplied with Flush/Calibration Ring Ideal for Gauge or Differential Pressure Transmitters

The Extended Diaphragm Seal is ideal for highly viscous and dry powder applications. Its unique design eliminates dead space in piping. It is often used for flush mounting in thick-walled vessels and is available in standard and custom lengths.
