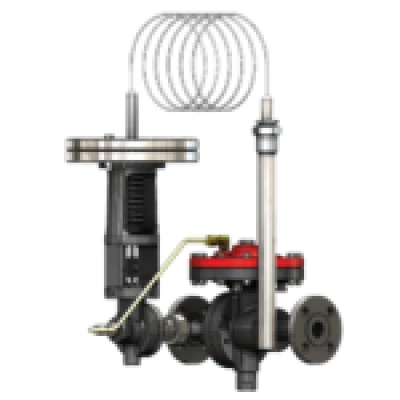

Externally Piloted The Mark 87 piloted temperature regulator is the sliding gate valve engineered to provide wide rangeability, and greater accuracy, for a variety of temperature control applications. Designed with the same technology as the Mark 80, the Mark 87 is a piloted temperature regulator that offers quality and performance. It can be used where larger line sizes and higher flow rates are required.

Three-Way, Diverting or Mixing Service The Mark 89 is used for diverting service and is ideal for bypassing fluids around coolers or filters. In this configuration, there is one inlet and two outlets. As one outlet closes, the other outlet opens, diverting flow from one channel to the other. The Mark 89MX is ideal for mixing service.

High Pressure / Low Flow Pressure Regulating Valves The JR Series line of high pressure regulators have the ability to handle very high pressures and very low flows. USDA and FDA approved soft goods available upon request. Research and sampling systems General, corrosive and specialty gas and liquid services (non-cavitating)

Diaphragm Operated, Pressure Regulating Valve The JRDL Series line of diaphragm sensed, high pressure regulators have the ability to handle very high pressures and very low flows. USDA and FDA approved soft goods available upon request. High pressure gas Liquid pump systems control Water seal regulation Hyperbaric chambers Air compressors Pressurized ballast tanks Gas transfer systems Gas chromatography Flame ionization

Very High Pressure / Low Flow Pressure Regulator The JRH Series of high pressure regulators has the ability to handle high pressures as well as low flows. USDA and FDA approved soft goods available upon request. Research and sampling systems General, corrosive and specialty gas and liquid service

High Flow Pressure Regulating Valves The JRHF Series is a diaphragm operated, balanced trim pressure regulator. The choice between 1.5 and 1.9 Cv (1,3 and 1,6 Kv) offers increased flows across the JRHF's 230 psi (15,8 bar) inlet range, while the PTFE soft seat provides ANSI Class VI shutoff. Four set spring ranges and three soft seal options offer the customer flexibility in a number of applications and environments. These valves are designed to regulate a variety of gases and liquids in applications where high flows and low control pressures are required. USDA and FDA approved soft goods available upon request. Gas and liquid applications where high flows and low control pressures are required.

Low Set Pressure / Very Low Flow Pressure Regulating Valves The JRHL Series is a line of low flow pressure regulators that have the ability to handle low set pressures and very low flows with less offset than valves with small diaphragm. The durable valve body and metal trim components are machined from 316L SST barstock. The valve is outfitted with the rugged Jorlon diaphragm and Teflon, PEEK or EPDM seats for ANSI Class VI shutoff. USDA and FDA approved soft goods available upon request.

Low Set Pressure / Very Low Flow Pressure Regulating Valve The JRLL Series are low flow regulators designed and built specifically for very low pressure applications. The durable valve body and metal trim components are machined from 316L SST barstock. The valve is outfitted with a sensitive PTFE Jorlon diaphragm for accurate low pressure sensing and Teflon, PEEK, KEL-F and EPDM seats for ANSI Class VI shutoff. USDA and FDA approved soft goods available upon request. Ideal for low pressure regulation of gases Sparging Tank blanketing

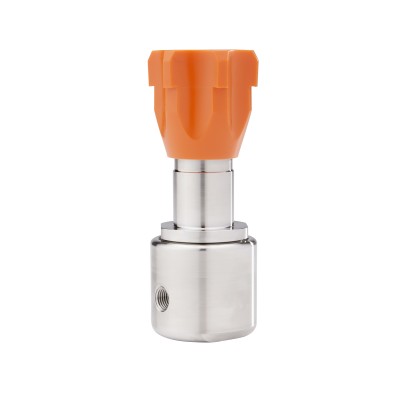

Piston Operated Pressure Regulating Valve The 1/4" JRPH Series and JRPL Series are piston operated pressure regulators that offer excellent control at Cv's of 0.20 (0,17 Kv) and lower. There are six set ranges for the JRPH Series and two set ranges for the JRPL Series. Elastomer seals are used throughout with Buna-N, EPDM and Viton being standard options. USDA and FDA approved soft goods available upon request. General, corrosive and specialty gases, water, acids and oils High pressure application

Piston Operated Pressure Regulating Valve The JRPH & JRPL Series are piston operated, balanced trim pressure regulators with high Cvs and KEL-F soft seat for ANSI Class VI shutoff. There are three set ranges for each model. Elastomer seals are used throughout with Buna-N, EPDM and Viton being standard options, along with matching back up seals. USDA and FDA approved soft goods available upon request. A variety of gases, water acids and oil applications Fuel cells

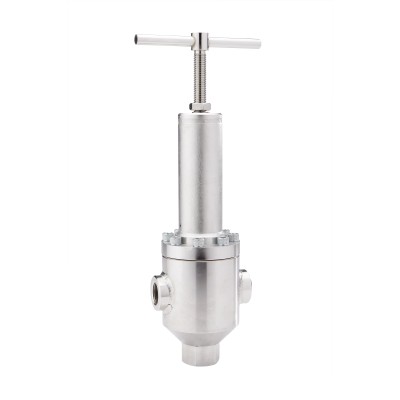

High Pressure Regulating Valve The Mark 6800HP Series is a self-operated pressure regulating valve for use on high pressure industrial gas and liquid services to 4000 psi (276 bar). The Mark 6800HP features exceptional accuracy with high flow capacities and simple in-line maintainability. For durability and dependable service, the 1/2" - 1" valves are constructed of total barstock, with all stainless steel components. Valve plugs are available with either hard or soft seats and balanced trim is available with either seat type. USDA and FDA approved soft goods available upon request. Gas and liquid services (non-cavitating)

Gas Back Pressure Regulating Valve The JB Series line of back pressure regulators have the ability to handle very high pressures and very low flows. USDA and FDA approved soft goods available upon request. Research and sampling systems for corrosive and specialty gases Gas chromatography Flame ionization detectors Industrial controls

High Cv Diaphragm Back Pressure Regulating Valve The JBDL Series is a diaphragm operated, balanced trim, back pressure regulator. The 1.95 Cv (1,69 Kv) offers increased flows across its 1200 psi (83 bar) inlet range, while the DEL-F soft seat provides ANSI Class VI shutoff. Five set spring ranges and three soft seal options offer the customer flexibility in a number of applications and environments. USDA and FDA approved soft goods available upon request. Regulate a variety of gases and liquids in compressor control Process pressure control where high flows and low pressures are required

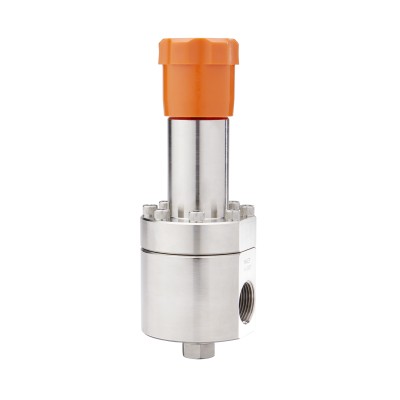

Piston Sensed, Back Pressure Regulating Valves The JBPH Series is a piston operated back pressure regulator. The 0.5 Cv (0,43 Kv) offers increased flows across its 6000 psi (414 bar) inlet range, while the KEL-F soft seat provides ANSI Class VI shutoff. USDA and FDA approved soft goods available upon request. Research and sampling systems for corrosive and specialty gases Gas chromatography Flame ionization detectors Industrials controls

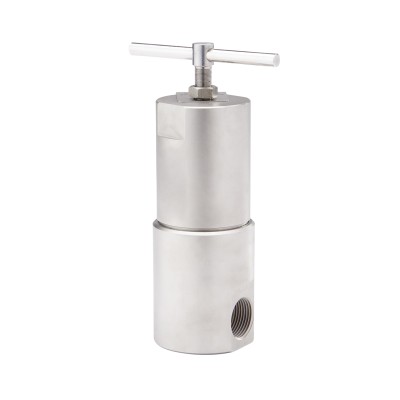

High Pressure Back Pressure Regulating Valve The Mark 5800HP Series is a high pressure, back pressure regulator designed to maintain upstream pressure of gases and liquids. As a compact, lightweight product, it is well suited for applications where space and weight are at a premium. The T-bar adjusting handle allows for a lighter spring and more sensitive regulator than models with a fixed knob. USDA and FDA approved soft goods available upon request.
