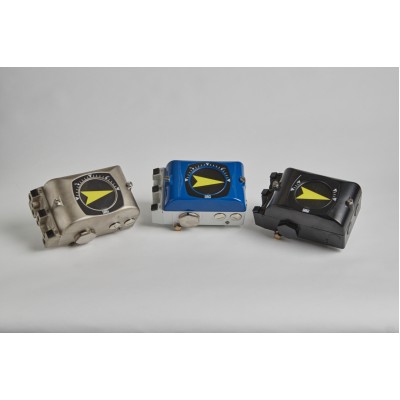

ALL IN A SINGLE COMPACT AND RUGGED HOUSING The V200 incorporates the flexibility of converting from a pneumatic unit to several versions of an electropneumatic unit, and the ability to add position feedback, in a matter of minutes, all in one compact and rugged housing. Maximum flexibility and versatility. With a rugged Nema 4X, IP 66 die cast aluminum housing, versatile polyester coating, optional Tufram® or Nickel coatings, low -58F or high +325F temp options, and standard features like external zero and span adjustment, this unit expands the VAC offering to cover this “all in one” market for positioners. Add to this the excellent performance yet simple design, and the combination equals a real value.

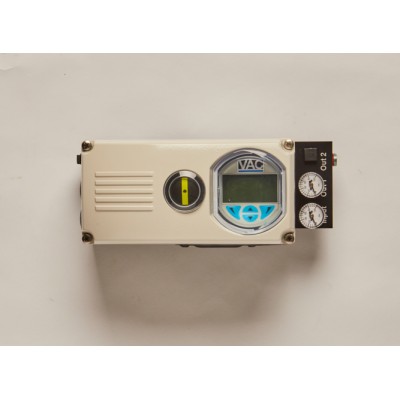

The VAC D400 is a microprocessor based, “intelligent” instrument that can be mounted to rotary or linear pneumatic actuators for accurate positioner and/or process control. This unit, while sophisticated in its accuracy and performance, is simple to mount, calibrate, and with good filtered air and proper maintenance, can provide very accurate and trouble-free service for many years. VAC D400 Digital Positioner Available with Hart, Foundation Fieldbus, or Profibus communication, the D400 range of applications and communications meets the latest industry standards. The “efficiencies” of the D400 are not only in its microprocessor based technology and accuracy, but also in the pneumatic air handling where air consumption is kept to a very minimum.

Reliability - proven rugged technology, vibration test specified Flexibility - various mounting options, analog or binary feedback alarms, micro-switches, universal analog input available Diagnostics - pressure sensor option for advanced diagnostics with partial stroke capability standard Performance - very high resolution and air delivery, precise positioning with 270° sensor, SIL2 approval available Simple - push buttons and LCD display for auto-calibration and configuration with standard loop calibrator
