Valve Monitoring & Control

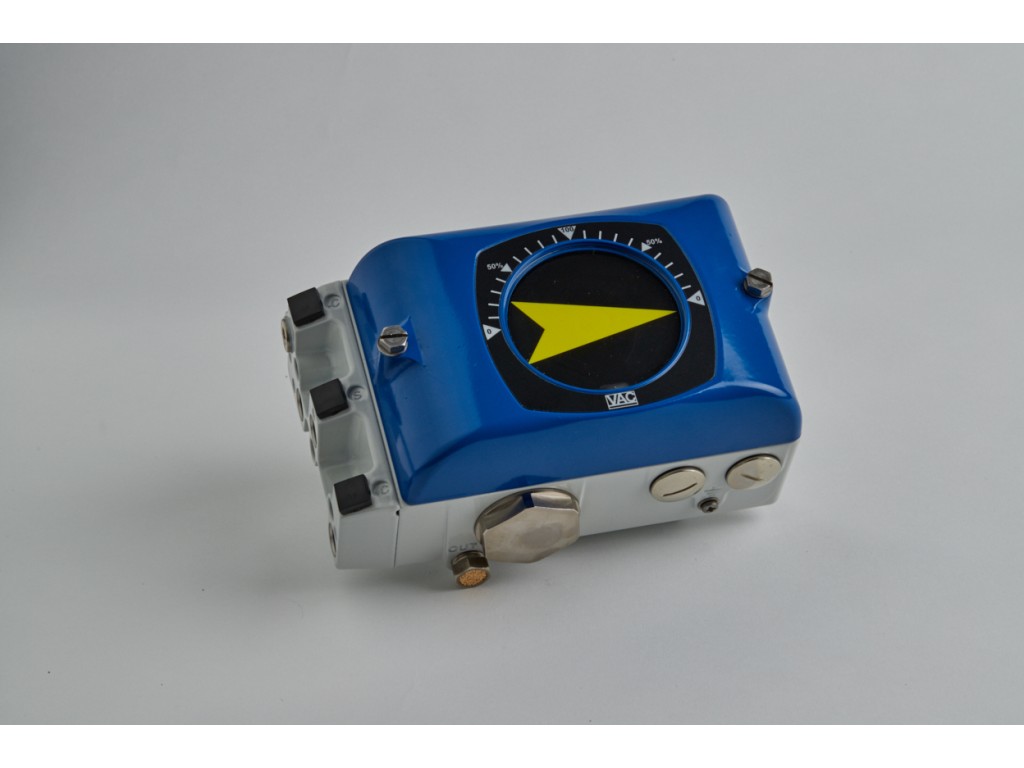

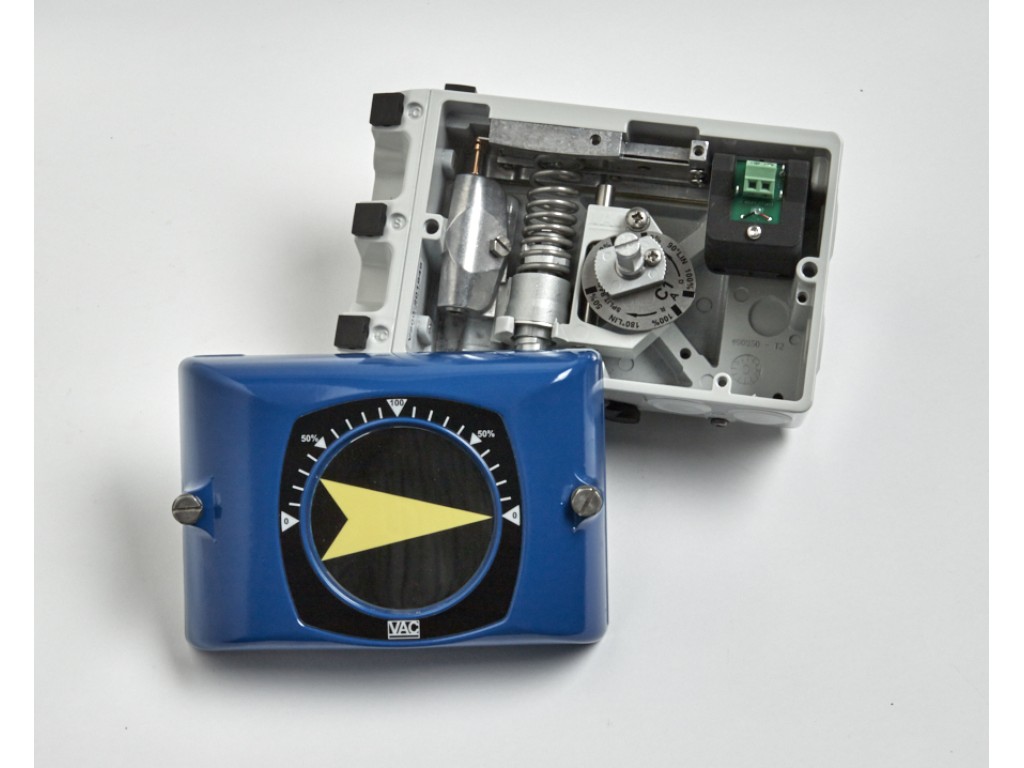

ALL IN A SINGLE COMPACT AND RUGGED HOUSING The V200 incorporates the flexibility of converting from a pneumatic unit to several versions of an electropneumatic unit, and the ability to add position feedback, in a matter of minutes, all in one compact and rugged housing. Maximum flexibility and versatility. With a rugged Nema 4X, IP 66 die cast aluminum housing, versatile polyester coating, optional Tufram® or Nickel coatings, low -58F or high +325F temp options, and standard features like external zero and span adjustment, this unit expands the VAC offering to cover this “all in one” market for positioners. Add to this the excellent performance yet simple design, and the combination equals a real value.
- +

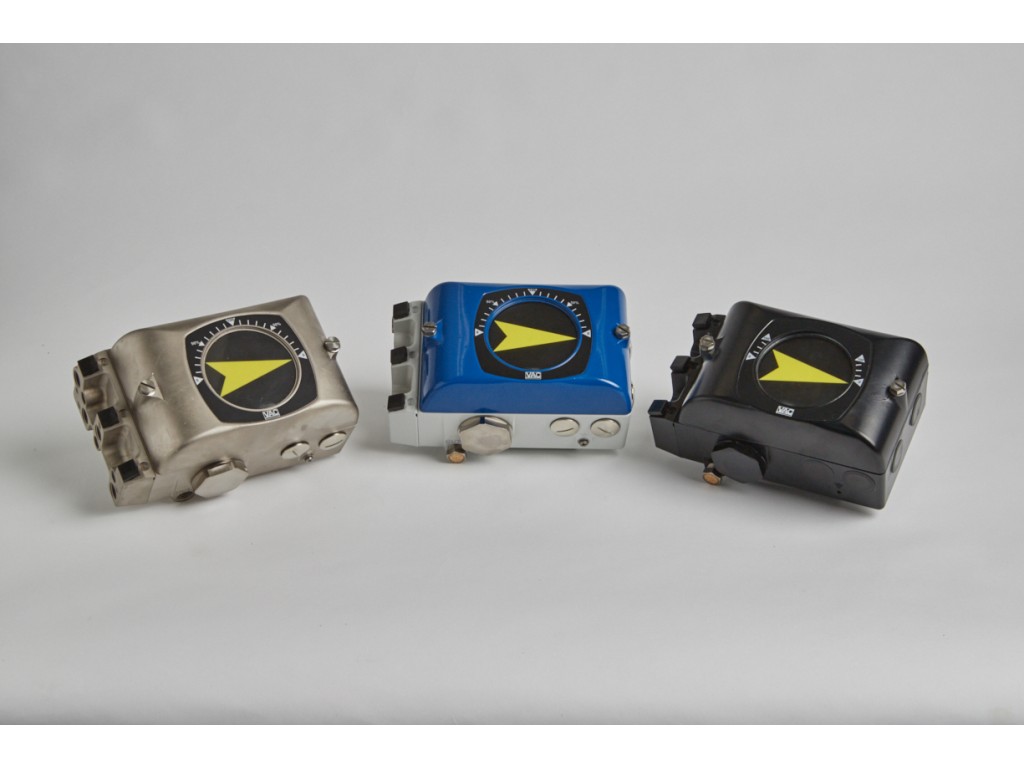

V200 OPTIONS Internal switchesMechanical or Reed general purpose only V200E-Standard Nema 4X Unit or IS Unit V200EX Explosion Proof Unit V200 Nickel Coated V200 BENEFITS • Compact Design • Quality components = rugged and accurate performance • External zero and span (complete calibration) adjustment without removing cover • Easily maintain all key components V200E-0/10 Volt Unit Extra High Temp (EHT) +325˚ F only available in pneumatic V200EX-GA Gas Approved Unit V200 Tufram® Coated • Clear, visible indicator with arrow indicator standard-beacon optional • Field changeable to any I/p option
